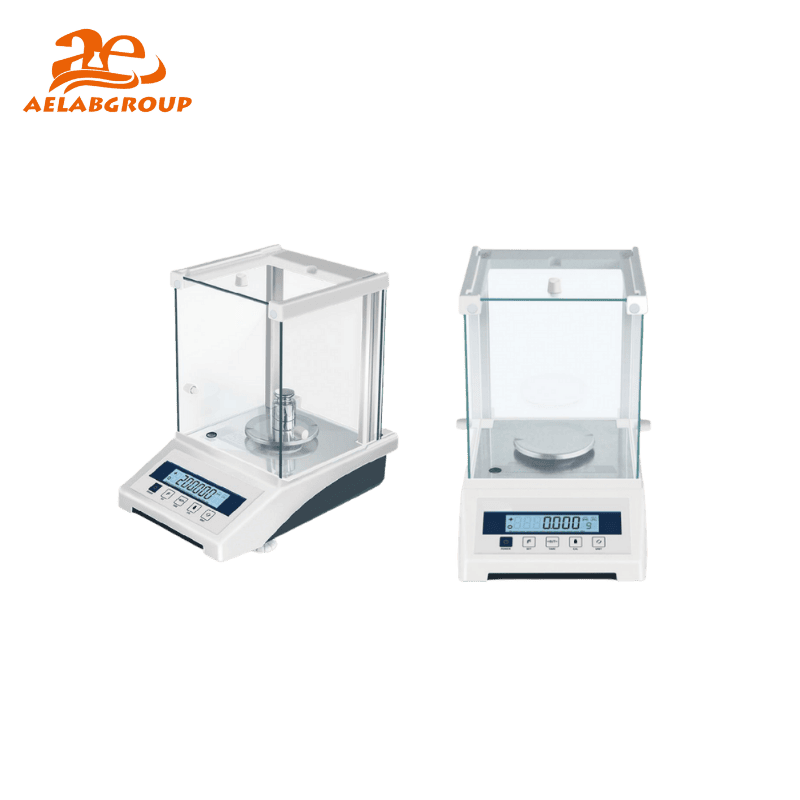

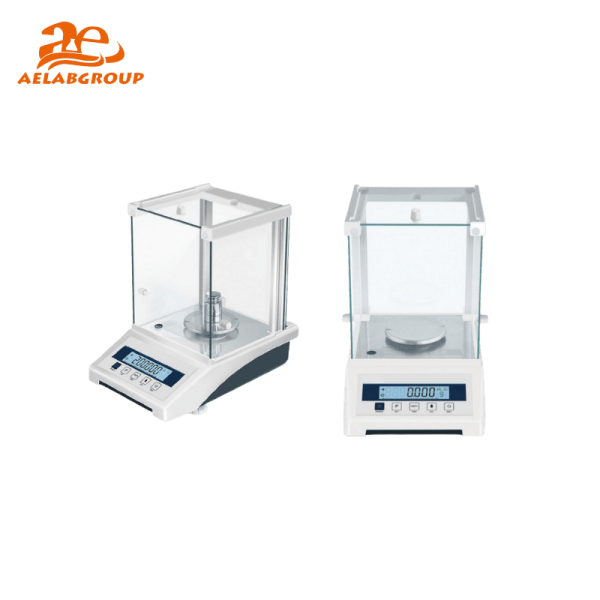

The JA-E/JA-EL Precision Balance Series combines high precision with user-focused features, making it ideal for laboratory and industrial use. It supports both electromagnetic and strain gauge sensor technologies and includes internal auto calibration for consistent accuracy.
Key functionalities include tare, unit conversion, counting, peak hold, percentage mode, and optional density measurement. Users can customize sensitivity, speed, and even set calibration times for optimized workflow.
The balance features a clear white backlit LCD, overload/fault alarms, a level indicator, and offers USB or printer output with adjustable baud rate and communication mode. Whether for simple or advanced tasks, it delivers stable, accurate results.
The JA-E/JA-EL Series Precision Balance is a high-performance weighing solution designed to meet the demanding needs of laboratory, industrial, and quality control applications. Equipped with an electromagnetic force or strain gauge sensor depending on the model, it offers precise and reliable measurements with internal automatic calibration for consistent accuracy.
Featuring a white backlit LCD with black font, the display ensures clear readability under various lighting conditions. Advanced functions include tare, counting, unit conversion, peak hold, percentage weighing, and density determination (with optional density kit). Users can also adjust sensitivity and speed settings to optimize performance for different environments or materials.
Communication capabilities are enhanced by a print function with baud rate setting, allowing for continuous or press-triggered data transmission. Interface options include USB and printer connectivity, making it suitable for digital workflows.
Safety and usability features such as overload and fault alarms, a level indicator, and calibration time settings help maintain the integrity of weighing operations. Whether for routine weighing or complex measurement tasks, the JA-E/JA-EL Series delivers accuracy, versatility, and user-friendly operation.
Features:
JA-E Series:
JA-EL Series:
Specifications :
| Model | JA203E | JA503E | JA203EL |
| Capacity | 200g | 500g | 220g |
| Readability | 0.001g | ||
| Min weighing | 0.004g | ||
| Repeatability | ±0.002g | ||
| Linearity | ±0.003g | ||
| Stable Time | ≤3s | ||
| Operation temp | 5 - 25°C | ||
| Pan size | Φ80mm (Standard) Φ90mm (Option) | ||
| Dimension | 305210305mm | ||
| Draft shield size | 175165200mm (Inner diameter) | ||
| LCD Size | 94*24mm | ||
| Cal.weight | External calibration | Internal calibration | |
| G.W | 8.0kg | 6.0kg | |
| N.W | 6.0kg | 4.5kg | |
| Packing size | 425310410mm | ||
| Interface | RS232 (Standard) | ||
| Sensor | EMF | Load cell | |
| Model | JA203E | JA503E | JA203EL |
| Capacity | 200g | 500g | 220g |
| Readability | 0.001g | ||
| Min weighing | 0.004g | ||
| Repeatability | ±0.002g | ||
| Linearity | ±0.003g | ||
| Stable Time | ≤3s | ||
| Operation temp | 5 - 25°C | ||
| Pan size | Φ80mm (Standard) Φ90mm (Option) | ||
| Dimension | 305210305mm | ||
| Draft shield size | 175165200mm (Inner diameter) | ||
| LCD Size | 94*24mm | ||
| Cal.weight | External calibration | Internal calibration | |
| G.W | 8.0kg | 6.0kg | |
| N.W | 6.0kg | 4.5kg | |
| Packing size | 425310410mm | ||
| Interface | RS232 (Standard) | ||
| Sensor | EMF | Load cell | |
