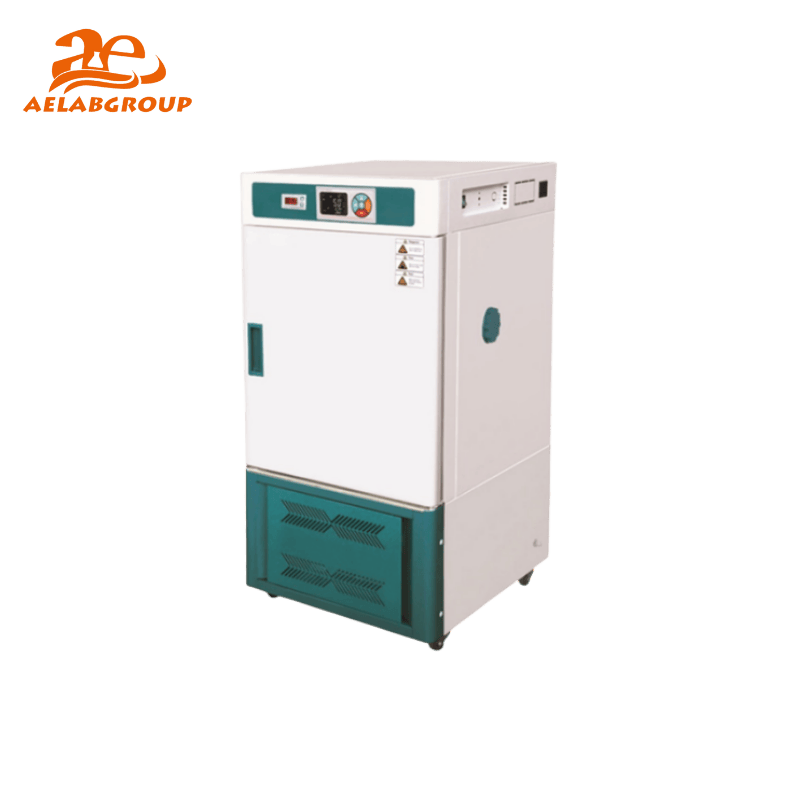

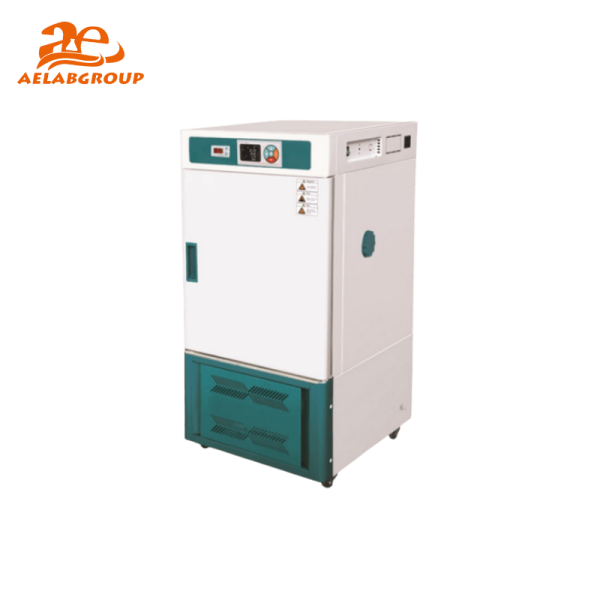

The AELAB SPX Series Precision Cooling Incubator is designed for constant temperature experiments, water analysis, microbial cultivation, BOD measurement, and sample preservation within 0–65 °C. Its advanced airflow design ensures even temperature distribution, while the intelligent control system guarantees stable and reproducible incubation for research and industrial testing environments.
Each SPX incubator integrates a dual-door design with magnetic sealing and observation glass, providing visibility and safety. The color LCD and programmable logic control allow precise multi-stage temperature scheduling, ensuring optimal conditions for long-term culture and environmental simulation tests.
The SPX Series features a Mirror Stainless Steel inner chamber for corrosion resistance and hygiene. The outer casing uses Cold Rolling Steel with electrostatic spray finish for durability. Polyurethane insulation minimizes heat exchange. Dual evaporators and automatic intelligent defrosting maintain stable internal conditions. Stainless Steel heaters and an air-cooled hermetic compressor ensure precise thermal regulation across all operating ranges.
The system uses forced convection to achieve uniform air distribution. A precision PID temperature controller and PT100 sensor regulate heating and cooling cycles automatically. Temperature is displayed on a dual-line LCD or touch screen, with upper and lower rows showing measured and set values respectively. The incubator executes programmed multi-stage temperature profiles for complex BOD, microbial, and environmental testing workflows.
Each unit supports universal AC 220 V connection with digital data control. Models include external power sockets for auxiliary devices, LCD or touch-screen interface for configuration, and optional PC data management software for GLP-compliant traceability.
| Model | Volume | Temperature Range | Control Type | Power | Inner Chamber (mm) |
|---|---|---|---|---|---|
| SPX-70BIV / BL | 70 L | 0–65 °C | LCD / 5.0 in Touch Screen | 0.8 kW | 420×350×500 |
| SPX-150BIV / BL | 150 L | 0–65 °C | LCD / 5.0 in Touch Screen | 1.0 kW | 500×500×600 |
| SPX-250BIV / BL | 250 L | 0–65 °C | LCD / 5.0 in Touch Screen | 1.2 kW | 600×500×840 |
The AELAB SPX Series is suitable for microbial culture, BOD (biochemical oxygen demand) testing, environmental simulation, plant breeding, water quality analysis, and temperature stability evaluation of biological and chemical samples. It is ideal for laboratories, research centers, and industrial quality control facilities.
All AELAB SPX incubators comply with ISO and CE safety standards, featuring GLP-compatible data integrity, internal calibration accuracy, and double independent over-temperature protection for user and sample safety.
Specifications :
| Model | SPX-70BIV / SPX-70BL | SPX-150BIV / SPX-150BL | SPX-250BIV / SPX-250BL |
|---|---|---|---|
| Cycle Mode | Forced convection | ||
| Temp. Range | 0 – 65 °C | ||
| Temp. Resolution Ratio | 0.1 °C | ||
| Temp. Motion | High Temp: ± 0.5 °C | Low Temp: ± 1 °C | ||
| Temp. Uniformity | ± 1 °C | ||
| Inner Chamber | Mirror Stainless Steel | ||
| Outer Shell | Cold Rolling Steel, Electrostatic Spray Exterior | ||
| Insulation Layer | Polyurethane | ||
| Heater | Stainless Steel Heater | ||
| Power Rating | 0.8 kW | 1.0 kW | 1.2 kW |
| Compressor | Air-Cooled Hermetic Compressor | ||
| Cryogen | R134a | ||
| Defrost Structure | Automatic Control Intelligent Defrosting | ||
| Test Hole | 43 mm | ||
| Controlled External Power Supply | Universal Socket (One) | ||
| Temp. Control Mode | BIV: Color Screen LCD Program | BL: 5.0 in Touch Screen | ||
| Temp. Setting Mode | Touch Button Setting | ||
| Temp. Display Mode | Upper Row: Measuring Temperature | Lower Row: Setting Temperature | ||
| Timer | 0 – 99.9 h × 30 Segments | ||
| Operation Function | Program Operation | ||
| Sensor | PT100 | ||
| Additional Function | BIV: LED Light, Deviation Correction, Menu Key Lock, Power Failure Memory | BL: Loop Self Diagnosis | ||
| Safety Device | Over Temperature Alarm, Digital Temperature Limiter | ||
| Inner Chamber Size (W×L×H) mm | 420×350×500 | 500×500×600 | 600×500×840 |
| Exterior Size (W×L×H) mm | 580×610×1190 | 660×760×1290 | 760×760×1530 |
| Packing Size (W×L×H) mm | 708×716×1368 | 788×866×1468 | 888×866×1708 |
| Volume | 70 L | 150 L | 250 L |
| Load per Rack | 15 kg | ||
| Shelf Number | 9 | 12 | 18 |
| Shelf Space | 35 mm | ||
| Power Supply / Current Rating | AC 220 V 2.3 A | AC 220 V 3.6 A | AC 220 V 5.5 A |
| Net / Gross Weight (kg) | 69 / 92 | 86 / 114 | 100 / 139 |
| Accessory | Shelf × 2 | Optional Accessories – Refer to Page 46 | ||
| Model | SPX-70BIV / SPX-70BL | SPX-150BIV / SPX-150BL | SPX-250BIV / SPX-250BL |
|---|---|---|---|
| Cycle Mode | Forced convection | ||
| Temp. Range | 0 – 65 °C | ||
| Temp. Resolution Ratio | 0.1 °C | ||
| Temp. Motion | High Temp: ± 0.5 °C | Low Temp: ± 1 °C | ||
| Temp. Uniformity | ± 1 °C | ||
| Inner Chamber | Mirror Stainless Steel | ||
| Outer Shell | Cold Rolling Steel, Electrostatic Spray Exterior | ||
| Insulation Layer | Polyurethane | ||
| Heater | Stainless Steel Heater | ||
| Power Rating | 0.8 kW | 1.0 kW | 1.2 kW |
| Compressor | Air-Cooled Hermetic Compressor | ||
| Cryogen | R134a | ||
| Defrost Structure | Automatic Control Intelligent Defrosting | ||
| Test Hole | 43 mm | ||
| Controlled External Power Supply | Universal Socket (One) | ||
| Temp. Control Mode | BIV: Color Screen LCD Program | BL: 5.0 in Touch Screen | ||
| Temp. Setting Mode | Touch Button Setting | ||
| Temp. Display Mode | Upper Row: Measuring Temperature | Lower Row: Setting Temperature | ||
| Timer | 0 – 99.9 h × 30 Segments | ||
| Operation Function | Program Operation | ||
| Sensor | PT100 | ||
| Additional Function | BIV: LED Light, Deviation Correction, Menu Key Lock, Power Failure Memory | BL: Loop Self Diagnosis | ||
| Safety Device | Over Temperature Alarm, Digital Temperature Limiter | ||
| Inner Chamber Size (W×L×H) mm | 420×350×500 | 500×500×600 | 600×500×840 |
| Exterior Size (W×L×H) mm | 580×610×1190 | 660×760×1290 | 760×760×1530 |
| Packing Size (W×L×H) mm | 708×716×1368 | 788×866×1468 | 888×866×1708 |
| Volume | 70 L | 150 L | 250 L |
| Load per Rack | 15 kg | ||
| Shelf Number | 9 | 12 | 18 |
| Shelf Space | 35 mm | ||
| Power Supply / Current Rating | AC 220 V 2.3 A | AC 220 V 3.6 A | AC 220 V 5.5 A |
| Net / Gross Weight (kg) | 69 / 92 | 86 / 114 | 100 / 139 |
| Accessory | Shelf × 2 | Optional Accessories – Refer to Page 46 | ||
