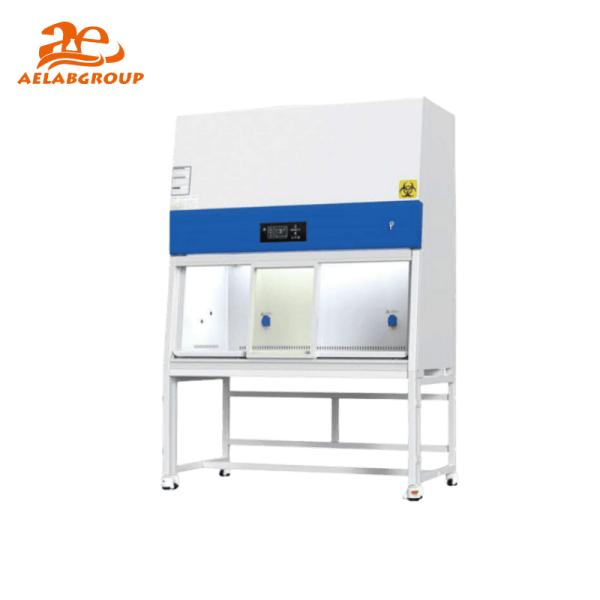

Radiation Protection Biological Safety Cabinet – AELAB BSC Series

The BSC Series Radiation Protection Biological Safety Cabinet is expertly engineered to ensure high-level biological and radiation safety in laboratory environments. Designed for handling sensitive materials, it combines advanced protection features with user-friendly functionality.

At the core is a real-time color display screen that clearly shows key operating parameters and allows users to schedule operations through an appointment timing function. The work zone, constructed from durable 304 stainless steel and surrounded by negative pressure, provides a safe and easy-to-clean workspace for containment.

The motorized front window, made of two-layer laminated toughened glass (≥6mm) with UV resistance, ensures both user protection and visibility. It can be adjusted hands-free during operation via a foot switch, reducing airflow disturbance. Additionally, full window control is available via a remote control, enhancing convenience and safety.

Mobility and stability are ensured through Footmaster casters with integrated brakes and leveling feet. For safe maintenance and handling, the cabinet includes cabinet support blocks to prevent hand injury and an iron hook support rod to secure panels during service.

To ensure the highest level of decontamination, a built-in UV lamp emits at 253.7 nanometers, offering powerful sterilization between uses. With its robust design and comprehensive protection features, the BSC Series is an ideal solution for laboratories requiring both biological and radiation safety.

Features：

1. Color key display: super large screen, more clearly and dynamically display the values of the safety cabinet, and has the function of reservation timing.
2. Automatic adjustment of wind speed.
3. With power failure memory function, the state before power failure is restored after power – on, and there is a visual warning.
4. The operation area is integrated design, easy to disassemble and clean.
5. Separate the cabinet from the base. Adjustable base height can be customized.
6. Interlocking function: UV lamp and front window; UV lamp and fan; Fan and front window.
7. With the appointment timing function, it can automatically set the safety cabinet regular disinfection function of the ultraviolet lamp operation time.
8. The front window is closed to trigger the double signal, so that the sterilization and disinfection function of the ultraviolet lamp can be opened normally.
9. The front side air duct is equipped with a foreign body filtering structure to prevent foreign bodies such as paper scraps from entering the fan system and affecting the normal operation of the product.
10. The front window glass has a one – click lifting function.
11. The cabinet is designed with an inclination angle in line with the ergonomic principle, the viewing Angle is larger, the operation is convenient and more user – friendly.
12. The integrated hand shell is changed to a large plane, and the contact area with the arm is larger and more comfortable.
13. The left and right sides of the work area and the bottom of the lead plate are respectively protected. The left and right sides of the front side are equipped with a side – sliding protective screen with protective radiation window. The front of the safety cabinet contains a movable anti – radiation glass front window component, and 1 piece of anti – radiation glass has a thickness of 50mm thick * 350mm wide, which can slide left and right. This component can be separated from the safety cabinet and can be removed to increase the use area of the operating area.

✅ 🔬 How It Works?

The BSC Series operates on a 70/30 airflow system, where 70% of the air is recirculated through ULPA filters and 30% is safely exhausted, ensuring a clean, sterile environment. The negative-pressure surround maintains containment, while the microprocessor continuously monitors and adjusts airflow. The LCD display keeps users informed of system vitals including filter life, velocity, temperature, and humidity. The UV lamp ensures powerful post-operation decontamination, while interlocking systems guarantee safe sterilization cycles.

✅ 💡 Advantages

• ✅ Dual Protection: Combines biological and radiation safety in one unit

• ✅ Hands-Free Operation: Motorized glass window with foot pedal and remote

• ✅ User-Centric Display: Real-time LCD with operational metrics and appointment scheduling

• ✅ Ergonomic Design: Angled viewing window and enhanced arm comfort

• ✅ Built-in Safety: Interlocking of UV lamp, fan, and front window to prevent misuse

• ✅ Highly Customizable: Adjustable base height, modular radiation shield components

• ✅ Maintenance Made Easy: Lead-protected panels with safe removal supports

• ✅ Power Failure Memory: Automatically restores last settings after outages

✅ 🔍 Recommended Models by Use Case

• 🔬 Educational Labs: BSC-1500IIA2-R – Compact, affordable, full safety for teaching labs

• 🧪 Research Institutions: BSC-1800IIA2-R – Extended workspace and advanced monitoring

• 🏭 Quality Control (QC): BSC-1500IIA2-R – Standardized dimensions for repetitive testing

• 🏥 Clinical & Pharmaceutical Labs: BSC-1800IIA2-R – Ideal for sterile environments and radioactive material handling

✅ 🧪 Ideal For

• 🧬 Molecular Biology & Microbiology Labs

• ☢️ Low-Level Radiation Testing Facilities

• 🧫 Virology and Pathogen Handling

• 🏥 Hospital & Clinical Diagnostics

• 🧪 Chemical and Biotech Analysis Labs

• 🎓 Academic Research Institutions
