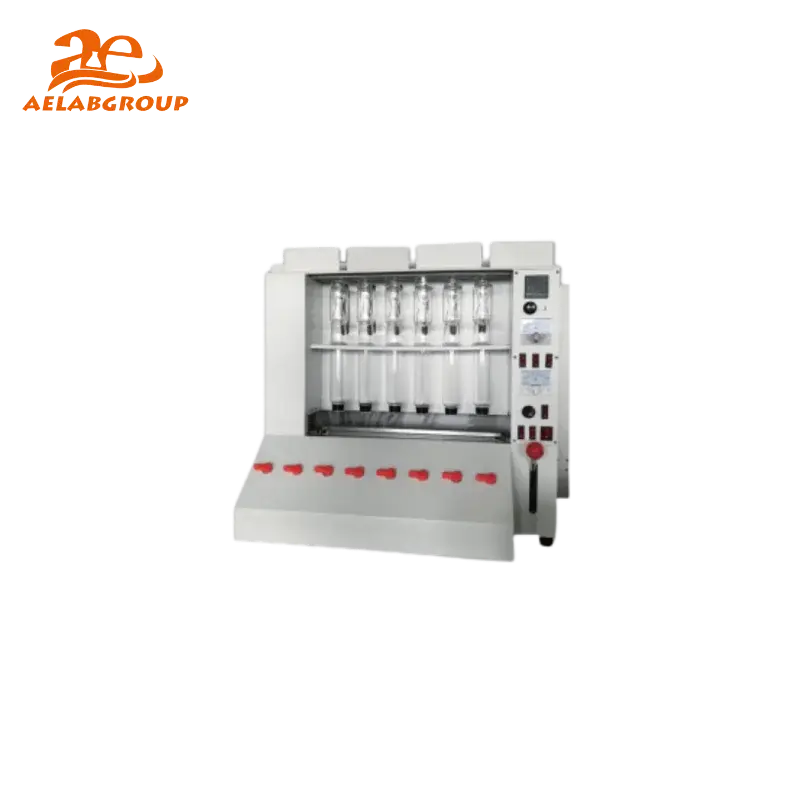

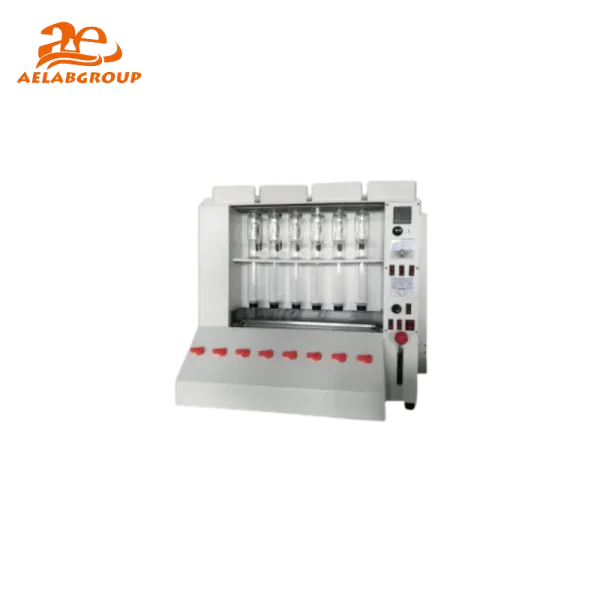

The AELAB AE-CXC-06 Raw/Coarse Fiber Analyzer tests raw fiber content according to the acid and alkali boiling method. It adopts accurate concentration acid and alkali to boil samples in particular conditions, then removes soluble substances by ether and deducts the amount of minerals by high-temperature burning.
This model is engineered for routine and high-precision fiber determination in agricultural, feed, and food laboratories. Its controlled digestion sequence ensures reproducible results across variable sample types and fiber levels.
The AELAB AE-CXC-06 features a robust multi-position digestion system with six parallel sample stations for consistent fiber analysis throughput. The unit integrates corrosion-resistant internal components suitable for extended acid and alkali exposure. A compact 670×450×670mm frame provides a stable bench-top installation, while thermal-resistant materials support uniform heating and controlled boiling conditions.
The analyzer quantifies raw or coarse fiber content through sequential acid and alkali digestion. Samples undergo a defined heating period of 40 minutes in acid and 40 minutes in alkali, followed by filtration and washing for 20 minutes. Soluble matter is eliminated, and the remaining residue is adjusted by subtracting ash content after high-temperature burning. This process delivers stable reproducibility for both low-fiber (<10%) and high-fiber (>10%) sample classes.
The AE-CXC-06 is designed for laboratory environments with standard AC220V/50Hz power supply. It integrates seamlessly with external balances and LIMS or data-management systems through standard workflow procedures, ensuring complete traceability under GLP-aligned documentation protocols.
| Model | Specifications |
|---|---|
| AE-CXC-06 | 6 samples per run, AC220V/50Hz 2800W, 670×450×670mm, 30kg |
The analyzer is suitable for raw and coarse fiber determination in grain, feed, food, agricultural products, and sideline products. It supports quality control workflows in feed mills, food production, agricultural research, inspection agencies, and academic laboratories.
AELAB manufactures each AE-CXC-06 under strict quality control protocols, ensuring consistency with ISO-style laboratory equipment standards. Parameters such as digestion time, reproducibility, and operational stability align with recognized analytical methodologies for fiber determination.

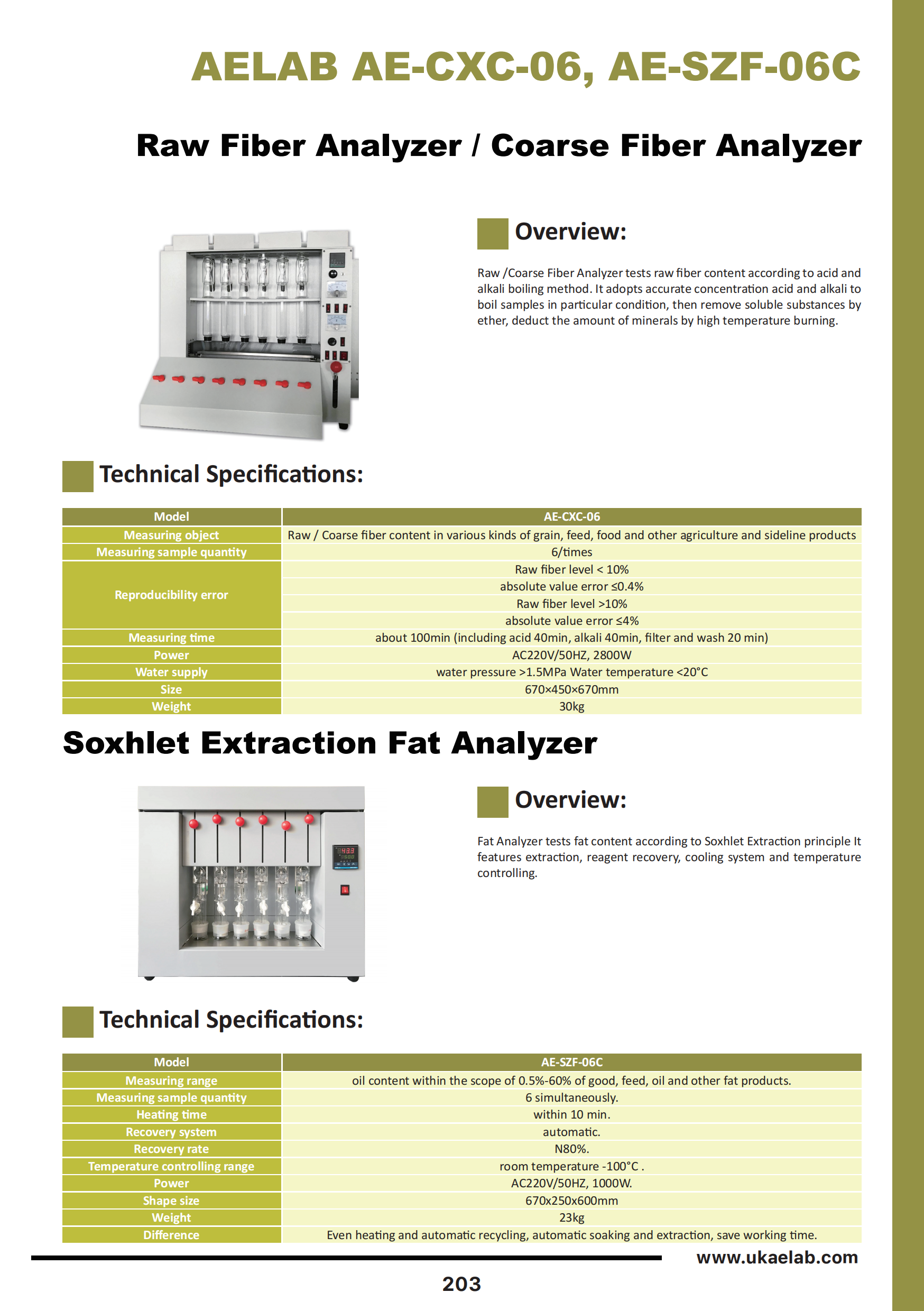

Specifications :
| Model | AE-CXC-06 |
|---|---|
| Measuring object | Raw / Coarse fiber content in various kinds of grain, feed, food and other agriculture and sideline products |
| Measuring sample quantity | 6/times |
| Reproducibility error | Raw fiber level <10% absolute value error ≤0.4% Raw fiber level >10% absolute value error ≤4% |
| Measuring time | about 100min (including acid 40min, alkali 40min, filter and wash 20 min) |
| Power | AC220V/50HZ, 2800W |
| Water supply | water pressure >1.5Mpa Water temperature <20°C |
| Size | 670×450×670mm |
| Weight | 30kg |
| Model | AE-CXC-06 |
|---|---|
| Measuring object | Raw / Coarse fiber content in various kinds of grain, feed, food and other agriculture and sideline products |
| Measuring sample quantity | 6/times |
| Reproducibility error | Raw fiber level <10% absolute value error ≤0.4% Raw fiber level >10% absolute value error ≤4% |
| Measuring time | about 100min (including acid 40min, alkali 40min, filter and wash 20 min) |
| Power | AC220V/50HZ, 2800W |
| Water supply | water pressure >1.5Mpa Water temperature <20°C |
| Size | 670×450×670mm |
| Weight | 30kg |
