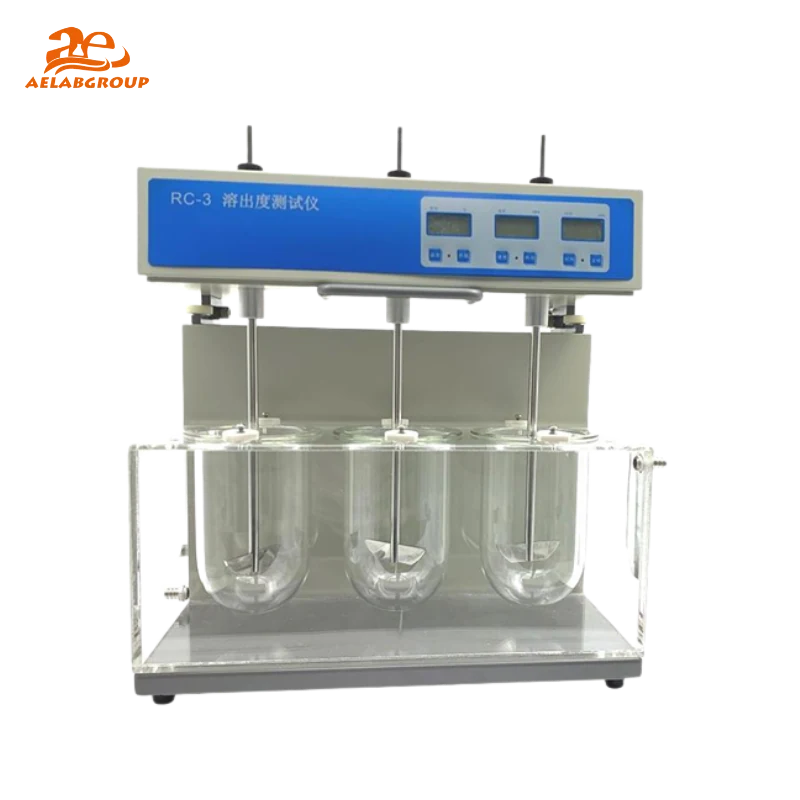

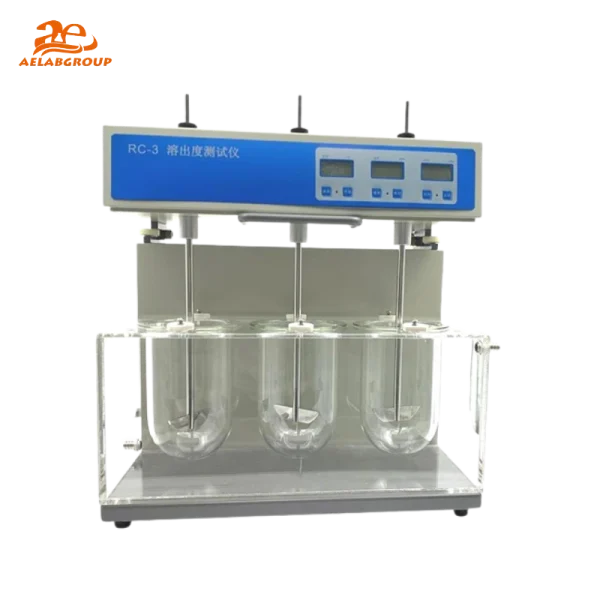

AELAB RC-3 Dissolution Tester for Tablet and Capsule Dissolution Rate Analysis

The AELAB RC-3 Dissolution Tester is designed for detecting dissolution velocity and dissolution extent of pharmaceutical dosage forms such as tablets and capsules in a specified dissolution medium. The RC series dissolution testing instrument supports controlled rotational speed and temperature stability to ensure reproducible dissolution behavior measurement in laboratory quality control and pharmaceutical research environments.

The AELAB RC-3 dissolution tester integrates LCD display monitoring, programmable timing, and automatic control logic to regulate temperature, rotational speed, and test time. The RC-3 dissolution tester supports consistent bath heating and stable mechanical alignment for repeatable dissolution rate analysis under pharmacopeial-style testing conditions.

⚙️ Design & Construction

The AELAB RC-3 Dissolution Tester uses a three-vessel and three-pole layout arranged in one line to support standardized dissolution testing. The head assembly of the RC-3 dissolution tester can be manually flipped, allowing smooth access for vessel placement, paddle/basket positioning, and routine maintenance. Basket units and paddle units are manufactured from imported Stainless Steel (SUS316L), supporting corrosion resistance in aqueous dissolution media and pharmaceutical buffers.

🔬 Working Principle / Testing Method

The AELAB RC-3 dissolution testing instrument measures the dissolution rate of pharmaceutical solids by rotating paddle or basket units at controlled speed while maintaining stable bath temperature. Test parameters including rotational speed, bath temperature, and test duration are set through the control system. Dissolution proceeds in the specified medium while the RC-3 dissolution tester maintains constant hydrodynamic conditions for reproducible dissolution velocity and dissolution extent measurement.

💡 Key Advantages

• The AELAB RC-3 dissolution tester provides 20–200 rpm speed regulation for dissolution rate profiling
• Speed accuracy of ±2 rpm supports stable and repeatable dissolution testing results
• Temperature control from Ambient to +45.0 °C supports pharmacopeial bath conditions
• Temperature stability of ±0.3 °C supports consistent dissolution medium performance
• Preset timing supports nine programmable points from 5–900 min for flexible dissolution protocols
• Magnetism-pumped circular water current supports uniform heating and bath temperature homogeneity
• Automation functions include auto-test, auto-diagnose, and auto-alarm for controlled operation

🔗 Connectivity & Integration

The AELAB RC-3 Dissolution Tester operates through keystroke-based control with LCD display for real-time monitoring. Preset and real data values can be displayed alternately, supporting regulated laboratory workflows and documentation. Automated alarm and diagnostic functions support instrument condition monitoring for continuous operation in pharmaceutical QC and analytical testing facilities.

🧪 Testing Applications

The AELAB RC-3 dissolution tester is used in pharmaceutical laboratories and industrial analytical testing centers for dissolution rate testing and dissolution extent evaluation of tablets and capsules. The RC-3 dissolution testing instrument supports formulation comparison, batch-to-batch quality control, stability studies, release testing, and dissolution profiling under controlled temperature and rotational conditions. Typical users include pharmaceutical manufacturers, research institutes, regulatory laboratories, and industrial QC departments requiring reproducible dissolution velocity analysis.

Compliance & Quality Assurance

The AELAB RC-3 Dissolution Tester is designed to support regulated dissolution testing workflows aligned with national and industry standards. Applicable standards include National Standard (Chinese Codex) / 2015 and Industry Standard (Dissolution Tester) JB/T 20105-2007. The RC-3 dissolution tester supports controlled parameter presets, repeatable operation, and instrument automation functions suitable for GLP-style quality assurance processes and validated pharmaceutical testing protocols.

The AELAB RC-3 dissolution tester delivers stable dissolution rate measurement with controlled speed and temperature accuracy for laboratory and industrial pharmaceutical analysis. Discover regulated dissolution testing performance with AELAB RC-3 — engineered for advanced laboratory dissolution analysis.
