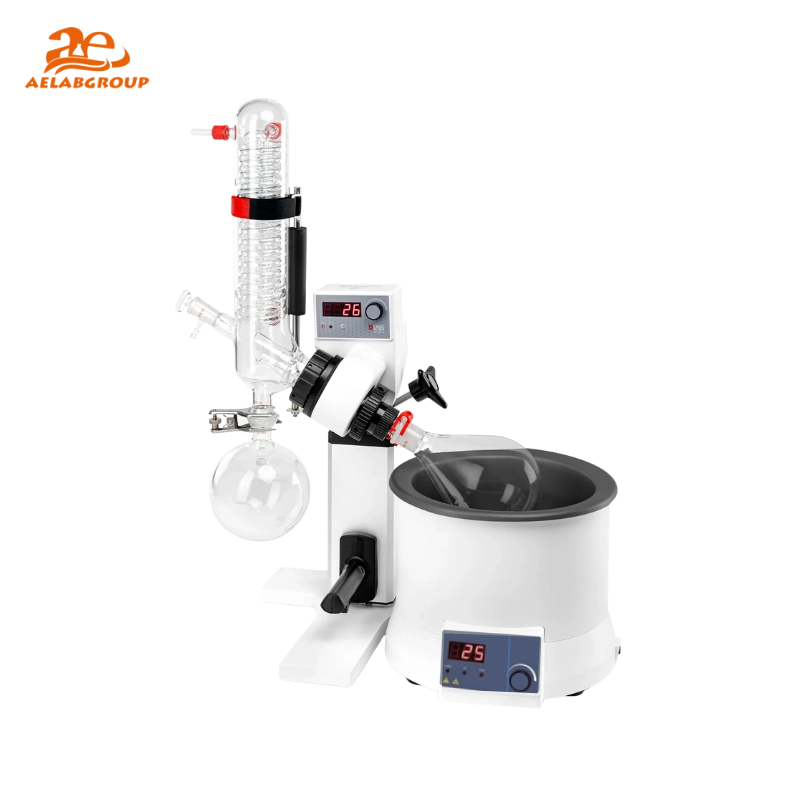

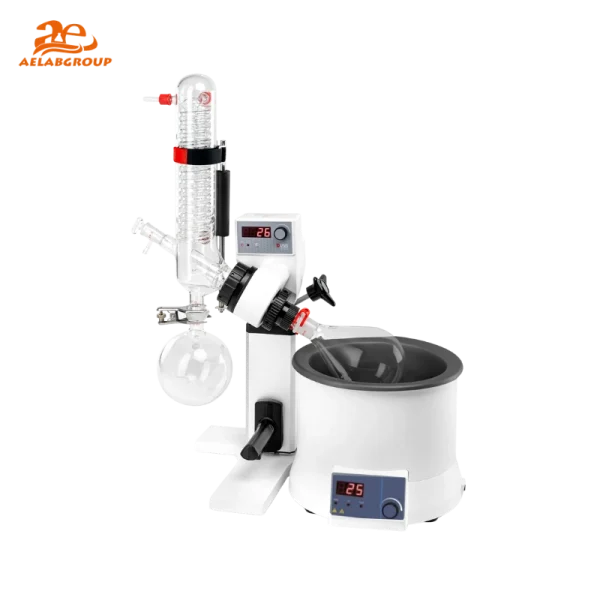

The AELAB RE100-S LED Digital Rotary Evaporator is a basic chemical laboratory instrument suitable for evaporation, distillation, and separation of chemicals. It can be used as a multifunctional system in combination with a vacuum pump, vacuum controller, and low-temperature circulator to deliver excellent distillation performance across laboratory applications.
The RE100-S includes a 5L heating bath with independent temperature control up to 180°C, ensuring accurate temperature regulation. Its brushless DC motor, PID control, and efficient condenser design support reliable, safe, and continuous solvent removal in chemical research environments.

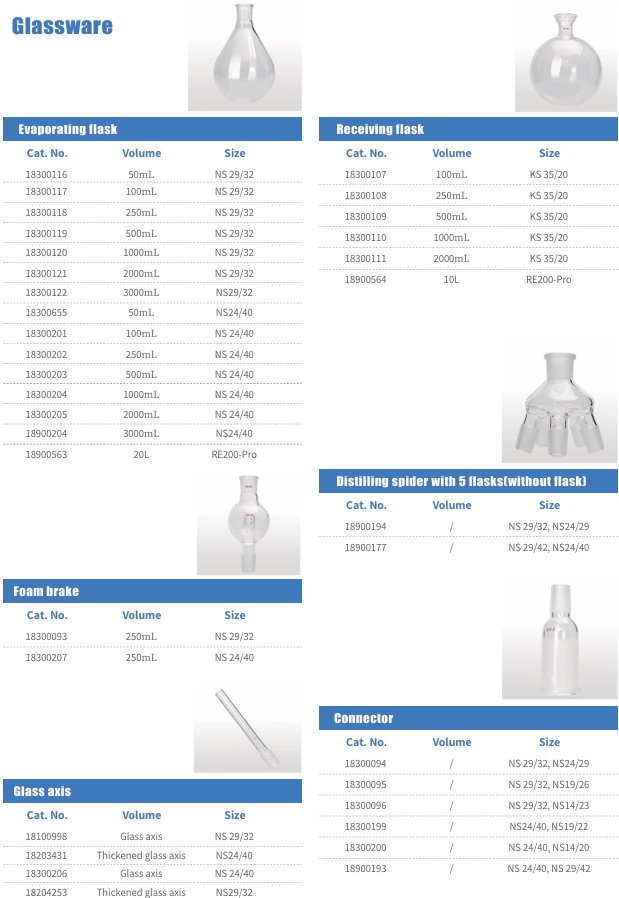

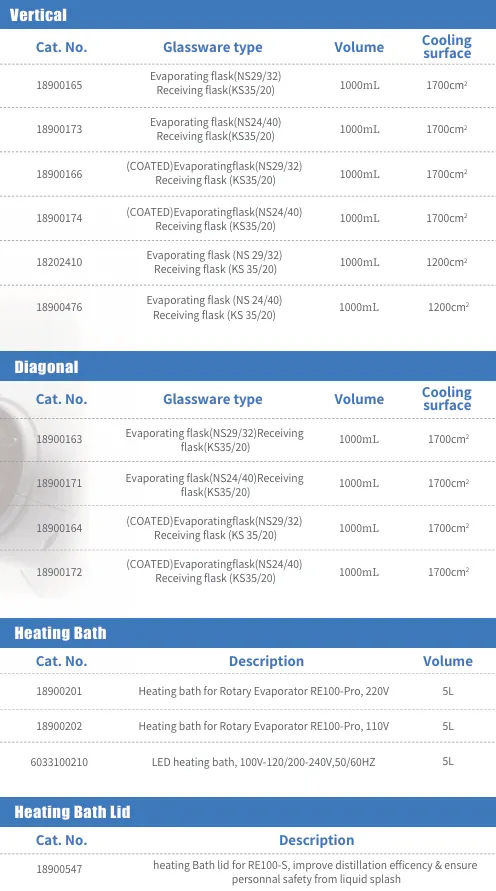

The AELAB RE100-S features a durable structure with a 5L water/oil heating bath, LED digital interface, and high-efficiency vertical or diagonal condenser options ranging from 1200–1700 cm² cooling surface. The PTFE double spring sealing ring ensures robust chemical resistance and prevents leakage during long-term distillation. The manual lift system includes auxiliary lift for precise flask positioning, and the frame accommodates a wide range of glassware from 50 mL to 3000 mL.
The rotary evaporator operates by rotating the evaporating flask to generate a thin solvent film, allowing rapid vaporization under reduced pressure. The vapor condenses through a high-efficiency condenser and collects in a receiving flask. PID heating maintains bath stability, while adjustable rotation (20–200 rpm) with selectable clockwise/counterclockwise motion supports uniform drying and solvent recovery.
The RE100-S supports USB data interface for parameter export and integration with laboratory documentation systems. It is compatible with external vacuum controllers, diaphragm pumps, and recirculating chillers for complete distillation setups aligned with GLP documentation workflows.
| Model | Specifications |
|---|---|
| RE100-S | 20–200 rpm, 5L bath, 180°C heating range, 1200–1700 cm² condenser options, 50–3000 mL glassware |
The AELAB RE100-S is suited for organic synthesis, solvent removal, purification of extracts, concentration processes, natural product extraction, pharmaceutical R&D, and routine teaching laboratory distillation tasks.
AELAB ensures CE-compliant design, IP20 protection, and rigorous factory calibration. All glassware components follow standardized NS joint specifications for chemical laboratory safety and interchangeability.
Specifications :
| Specifications | RE100-S |
|---|---|
| Evaporating Flask Volume | 50–3000mL (Optional Thickened glass axis compatible with 3L evaporating flask) |
| Motor Type | Brushless DC motor |
| Speed Range | 20–200rpm |
| Display | LED (speed, temperature, time) |
| Direction of Rotation | Clockwise and counterclockwise |
| Heating Temperature Range | Room temp. to 180°C |
| Control Accuracy | Water: ±1°C / Oil: ±3°C |
| Evaporation Capacity | Max. 1.56L/h (H₂O) |
| Heating Power | 1200W |
| Lift Stroke | Manual 110mm + auxiliary 100mm |
| Interval Time Setting Range | 1–999s |
| Dimension (D × W × H) | Main Unit: 440 × 320 × 450mm / Heating Bath: 300 × 300 × 240mm |
| Weight | Main Unit: 7kg / Heating Bath: 3kg |
| Permissible Ambient Temperature | 5–40°C |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Voltage/Frequency | 100–120/200–240V, 50/60Hz |
| Power | 1245W |
| Specifications | RE100-S |
|---|---|
| Evaporating Flask Volume | 50–3000mL (Optional Thickened glass axis compatible with 3L evaporating flask) |
| Motor Type | Brushless DC motor |
| Speed Range | 20–200rpm |
| Display | LED (speed, temperature, time) |
| Direction of Rotation | Clockwise and counterclockwise |
| Heating Temperature Range | Room temp. to 180°C |
| Control Accuracy | Water: ±1°C / Oil: ±3°C |
| Evaporation Capacity | Max. 1.56L/h (H₂O) |
| Heating Power | 1200W |
| Lift Stroke | Manual 110mm + auxiliary 100mm |
| Interval Time Setting Range | 1–999s |
| Dimension (D × W × H) | Main Unit: 440 × 320 × 450mm / Heating Bath: 300 × 300 × 240mm |
| Weight | Main Unit: 7kg / Heating Bath: 3kg |
| Permissible Ambient Temperature | 5–40°C |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Voltage/Frequency | 100–120/200–240V, 50/60Hz |
| Power | 1245W |
