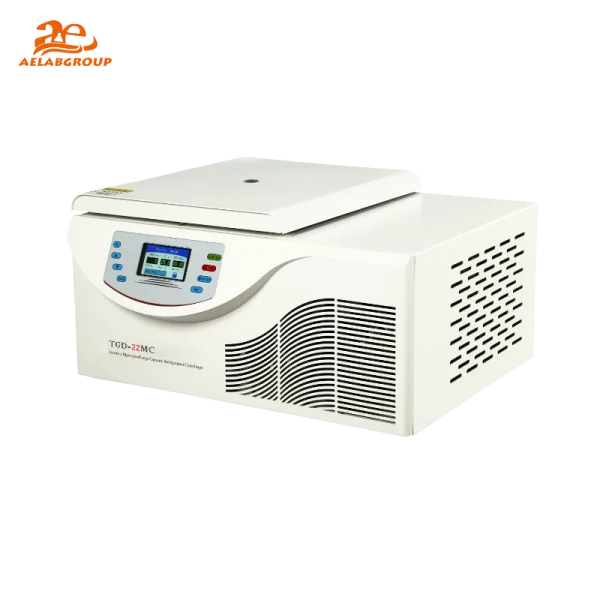

AELAB TGD-22MC High & Low Speed Refrigerated Centrifuge for Laboratory Separation

The AELAB TGD-22MC high & low speed refrigerated centrifuge performs regulated centrifugal separation for temperature-sensitive laboratory testing, analytical workflows, and industrial quality control. The AELAB TGD-22MC combines microprocessor control with frequency-conversion speed regulation and refrigerated operation to maintain stable centrifugation performance for biological and chemical sample processing.

The AELAB TGD-22MC DBIMARY SThe The AELAB TGD-22MC refrigerated centrifuge supports both high speed angle rotors and low speed swing rotors, enabling multi-format tube, bottle, and microplate operation under controlled conditions from -20°C to +40°C. Safety interlock protection, imbalance detection, and programmed memory improve repeatability for routine and research centrifuge applications.

⚙️ Design & Construction

The AELAB TGD-22MC refrigerated centrifuge is engineered for stable operation with microprocessor control and frequency-conversion motor regulation. The AELAB TGD-22MC incorporates an LCD display interface and compressor-based refrigeration to stabilize temperature during high-speed centrifugation. A safety interlock prevents opening the centrifuge lid during operation, while emergency lid lock release enables access in the event of power interruption.

🔬 Working Principle / Testing Method

The AELAB TGD-22MC refrigerated centrifuge separates samples by applying centrifugal force generated by controlled rotor acceleration to a defined speed, reaching up to 22000 r/min and 34700xg. Temperature is regulated across the operating range -20°C to +40°C to support enzymatic stability, analyte preservation, and phase separation. A programmable microprocessor stores up to 10 programs, allowing rapid recall of validated centrifuge protocols for consistent sample processing.

💡 Key Advantages

• The AELAB TGD-22MC refrigerated centrifuge reaches 22000 r/min for high-speed analytical centrifugation workflows.
• Maximum centrifugal force of 34700xg supports rapid sedimentation and high-efficiency separation.
• Refrigerated temperature control from -20°C to +40°C stabilizes temperature-sensitive biological and chemical samples.
• Speed accuracy of ±10 r/min improves centrifuge reproducibility for standardized testing protocols.
• Safety interlock system prevents centrifuge lid opening during operation for operator protection.
• Imbalance sensor, overspeed protection, and over-temperature cut-off improve operational safety and instrument integrity.

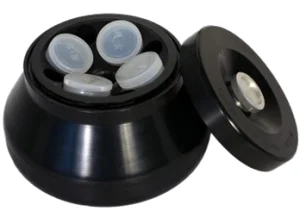

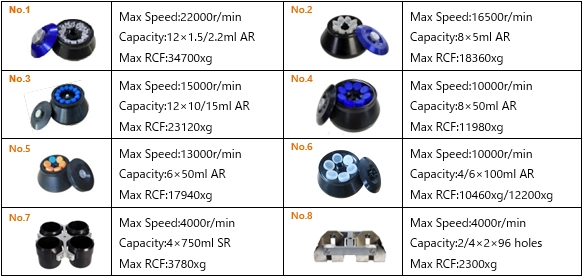

• Supports both high speed angle rotor and low speed swing rotor configurations for multi-application centrifugation.

🔗 Connectivity & Integration

• The AELAB TGD-22MC refrigerated centrifuge uses microprocessor program storage with 10 programs for repeatable test setup
• LCD display control supports operator-guided parameter setting for speed, time, and temperature range operation
• Data export, printer output, and PC software connectivity are not specified in the provided catalog data and should be confirmed for GLP documentation workflows

🧪 Testing Applications

The AELAB TGD-22MC refrigerated centrifuge is used for regulated separation of temperature-sensitive samples in laboratory, scientific, and industrial environments. Typical applications include clinical diagnostics sample preparation, pharmaceutical centrifugation workflows, biochemical separation, and analytical testing where stable refrigeration is required. The AELAB TGD-22MC supports centrifugation of microtubes, centrifuge tubes, bottles, and swing-bucket processing for bulk sample handling up to 4×750 ml.

• Clinical and diagnostic laboratory sample separation and serum/plasma preparation
• Pharmaceutical and biotech centrifugation requiring refrigerated stability
• Food and beverage testing laboratories for clarified sample extraction
• Environmental laboratories for particulate sedimentation and sample cleanup
• Biochemical workflows involving protein, nucleic acid, and cell pellet separation
• Industrial quality control requiring reproducible, timed centrifugal separation

Compliance & Quality Assurance

The AELAB TGD-22MC refrigerated centrifuge integrates safety systems including lid interlock, imbalance sensor, overspeed protection, and over-temperature cut-off to support laboratory quality control and safe operation. For ISO, CE, or GLP documentation requirements, certification status and calibration traceability must be confirmed from official compliance documentation, as these details are not stated in the provided catalog sheet.

The AELAB TGD-22MC high & low speed refrigerated centrifuge delivers controlled low-temperature centrifugation, multi-rotor flexibility, and validated microprocessor control for analytical, industrial, and diagnostic sample preparation. Discover precision separation performance with AELAB TGD-22MC — engineered for advanced laboratory analysis.
