Remote Laser Gas Detector RLGD-100

The RLGD-100 Remote Laser Gas Detector is a portable, high-sensitivity device that detects methane leaks from a distance. It provides real-time data and is easy to use, making it ideal for industrial safety and monitoring.

Modles : RLGD-100

Quantity:

Send Email

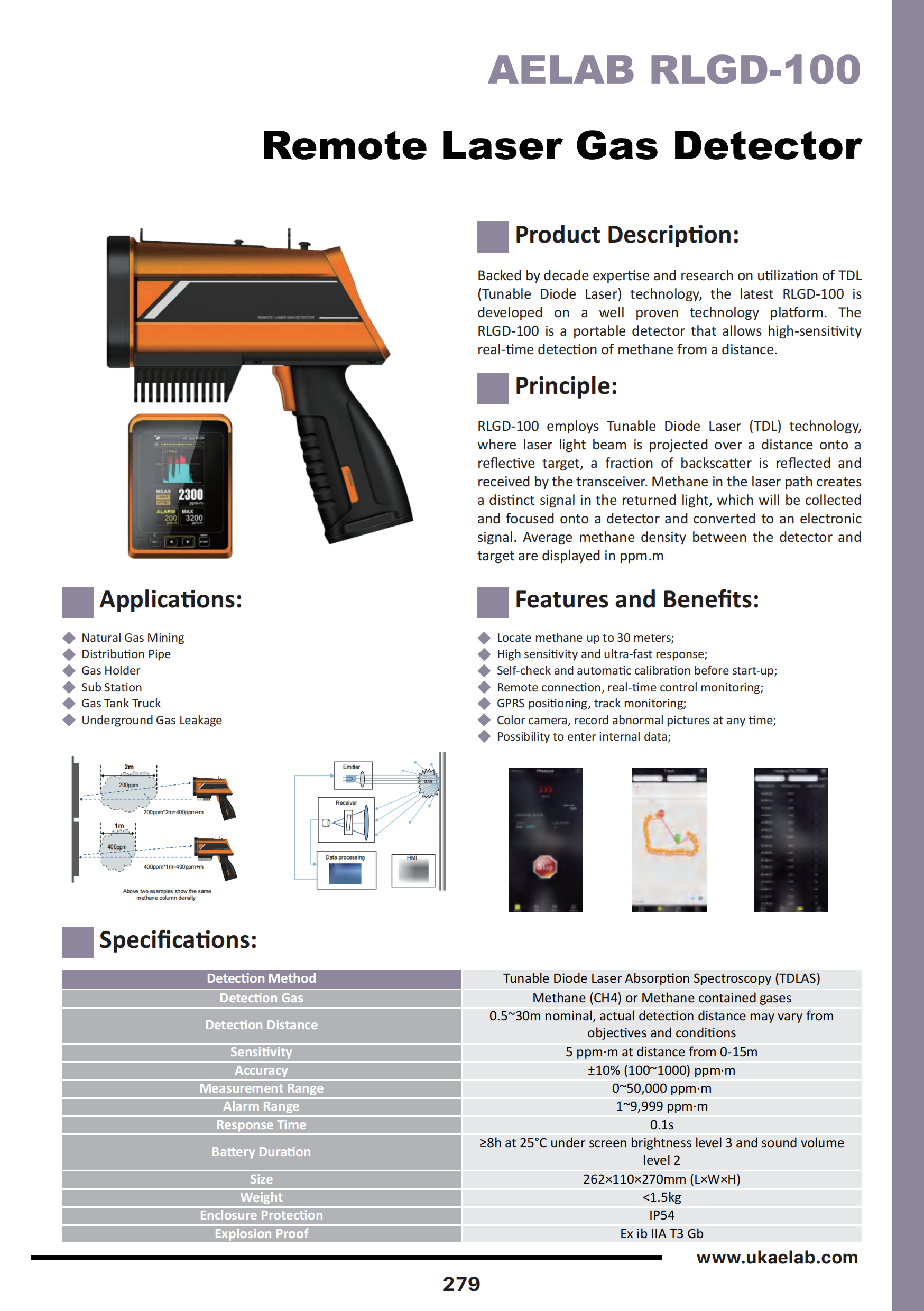

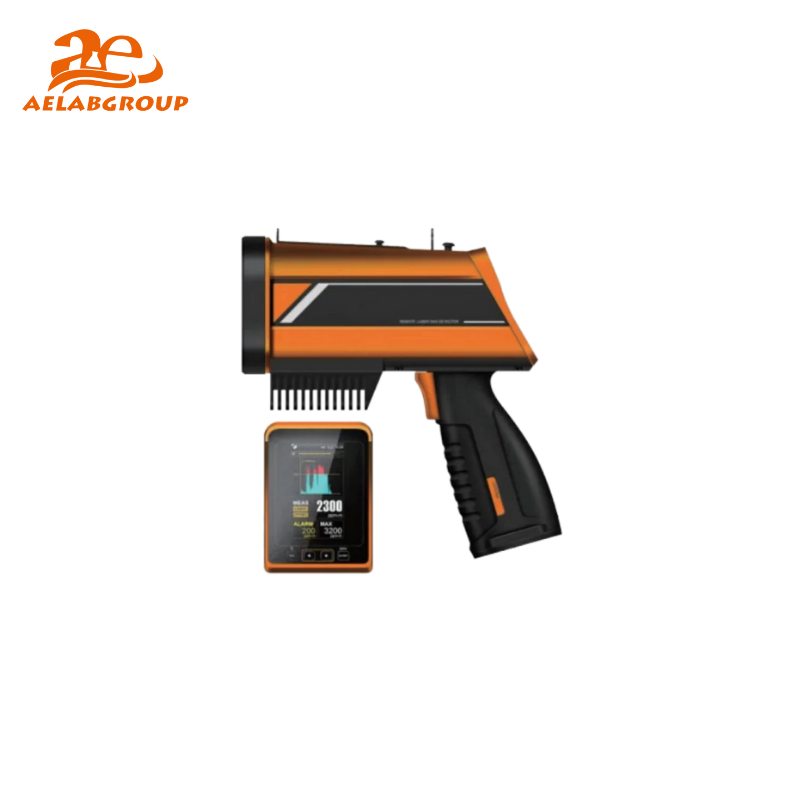

The RLGD-100 Remote Laser Gas Detector is a portable device designed to detect methane (CH₄) leaks from a distance using advanced laser technology. It provides real-time, accurate readings, even in challenging environments, making it ideal for industrial settings like oil and gas facilities. With its user-friendly design and high sensitivity, the RLGD-100 ensures safe and efficient gas monitoring in hard-to-reach or hazardous areas.

Features

Remote Detection: Capable of detecting methane gas leaks from a distance, ensuring safety by allowing monitoring without direct contact.
High Sensitivity: Detects even low concentrations of methane (CH₄), providing accurate results in complex environments.
Real-time Monitoring: Delivers immediate data on gas levels, enabling quick response to potential leaks.
Portability: Lightweight and easy to transport, making it suitable for various locations and field use.
User-Friendly Interface: Simple controls and a clear display make operation straightforward, even in challenging conditions.
Industrial Applications: Ideal for use in industries like oil and gas, chemical processing, and environmental monitoring where safety and precision are critical

Specifications :

Detection Method	Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Detection Gas	Methane (CH4) or Methane contained gases
Detection Distance	0.5~30m nominal, actual detection distance may vary from objectives and conditions
Sensitivity	5 ppm·m at distance from 0-15m
Accuracy	±10% (100~1000) ppm·m
Measurement Range	0~50,000 ppm·m
Alarm Range	1~9,999 ppm·m
Response Time	0.1s
Power Supply	Rechargeable lithium-ion battery
Battery Duration	≥8h at 25℃ under screen brightness level 3 and sound volume level 2
Size	262×110×270mm (L×W×H)
Weight	<1.5kg
Enclosure Protection	IP54
Explosion Proof	Ex ib IIA T3 Gb
