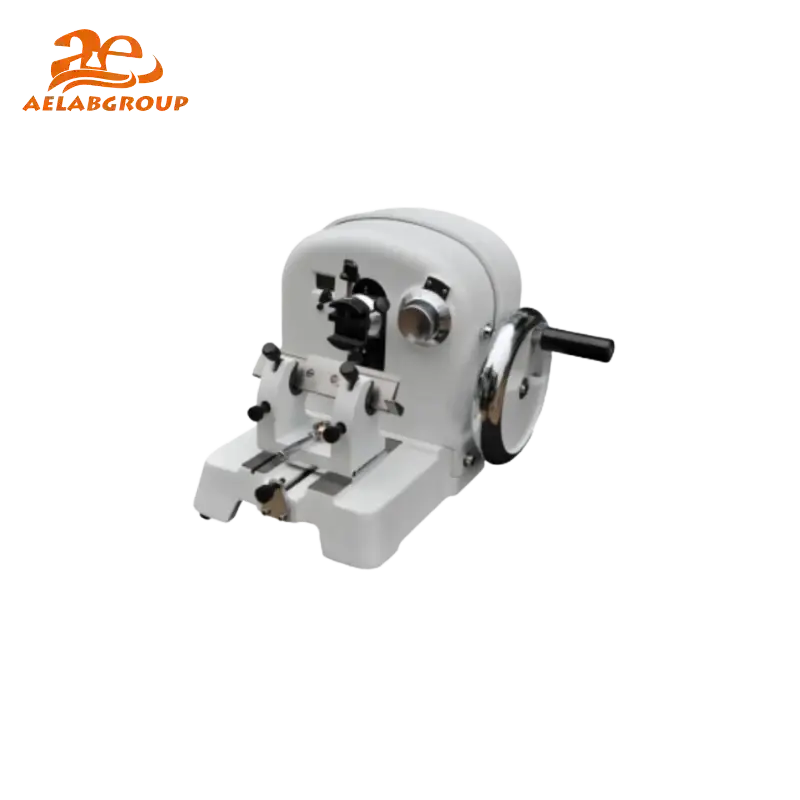

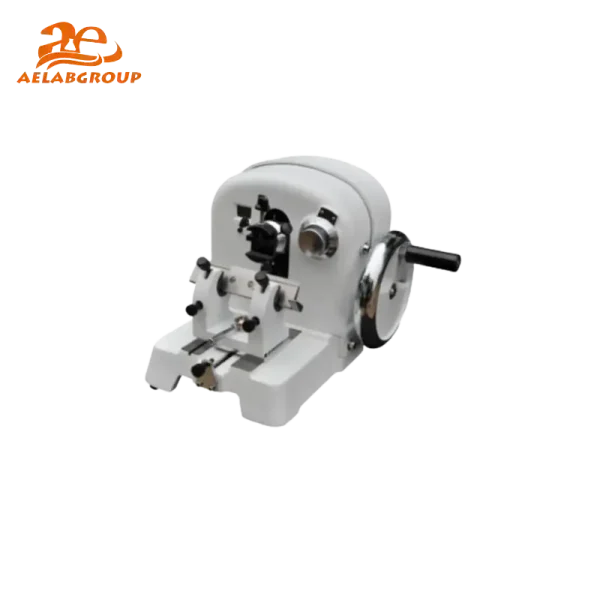

AELAB Rotary Microtome YD-202A for Precise Tissue Sectioning

The AELAB Rotary Microtome YD-202A is designed for laboratories requiring high-precision tissue sectioning. Featuring an LCD display with section counter and alarm system, it ensures reliable monitoring during operation. With a smooth hand wheel and ergonomic design, the YD-202A delivers consistent performance and user comfort for histology and pathology applications.

Modles : YD-202A

Quantity:

Send Email

The Rotary Microtome YD-202A offers enhanced precision and an improved design over its predecessor, the YD-202. It features an LCD display that shows section counts and includes an alarm system for effective monitoring. The microtome operates smoothly with a hand wheel that ensures effortless control during slicing. Its compact and ergonomic design enhances user comfort, making it a reliable choice for laboratories in need of accurate tissue sectioning.

Features:

Enhanced Precision: Improved design for greater slicing accuracy compared to the YD-202 model.
LCD Display: Features a section counting display and alarm system for better monitoring.
Smooth Operation: Equipped with a smooth-running hand wheel for effortless control.
Ergonomic Design: Compact and ergonomic design for user comfort and convenience.

🔬 How It Works?

The AELAB Rotary Microtome YD-202A operates by advancing a specimen block across a sharp blade at adjustable micrometer settings. Its smooth-running hand wheel provides effortless control, while the LCD display tracks section counts and triggers alarms for precise monitoring. This combination of mechanical precision and digital oversight ensures consistently accurate slices for both wax and resin-embedded specimens.

💡 Advantages

Enhanced precision compared to the YD-202 model
LCD display with alarm for accurate monitoring of section counts
Effortless hand wheel operation for smooth and consistent cutting
Ergonomic, compact design for operator comfort and space efficiency
Durable construction ensures long service life in demanding laboratory environments

🔍 Recommended Models by Use Case

Teaching laboratories – Entry-level precision and ease of use
Histology/pathology labs – Routine tissue sectioning with accurate results
Research institutes – Enhanced monitoring for consistent sample preparation
Industrial quality control – Reliable sectioning of resin or synthetic materials

🧪 Ideal For

Histology and pathology departments
University and teaching laboratories
Medical and clinical research centers
Pharmaceutical quality control labs
Biological and industrial materials testing

Specifications :

Section thickness	1 - 25μm
Minimum setting value	1μm
Maximum section size	35 x 25mm
Horizontal specimen stroke	35mm
Vertical specimen stroke	46mm
Dimensions	330×370×290mm
Net Weight	25.5kg

Standard Accessory

1 Clamp

1 Blade Carrier (for Steel knife or Blade holder )

50pcs Cassettes

1 Steel knife

Optional Accessory

Blade Holder

Microtome Disposable Blade

Cassette Clamp

Section thickness	1 - 25μm
Minimum setting value	1μm
Maximum section size	35 x 25mm
Horizontal specimen stroke	35mm
Vertical specimen stroke	46mm
Dimensions	330×370×290mm
Net Weight	25.5kg

Standard Accessory

1 Clamp

1 Blade Carrier (for Steel knife or Blade holder )

50pcs Cassettes

1 Steel knife

Optional Accessory

Blade Holder

Microtome Disposable Blade

Cassette Clamp

Download catalog for:

Frequently Asked Questions

1How is calibration performed on the YD-202A?

Calibration is built into the micrometer feed system; users can adjust thickness settings precisely via the hand wheel and verify with the LCD counter.

2Is the YD-202A GMP compliant?

Yes, it is manufactured following international laboratory equipment standards and can be integrated into GMP-regulated environments.

3How long is the warranty?

The YD-202A comes with a one-year warranty covering manufacturing defects, with extended service support available.

4Can the microtome use disposable blades?

Yes, with the optional blade holder, the YD-202A is compatible with standard disposable blades for added convenience.
