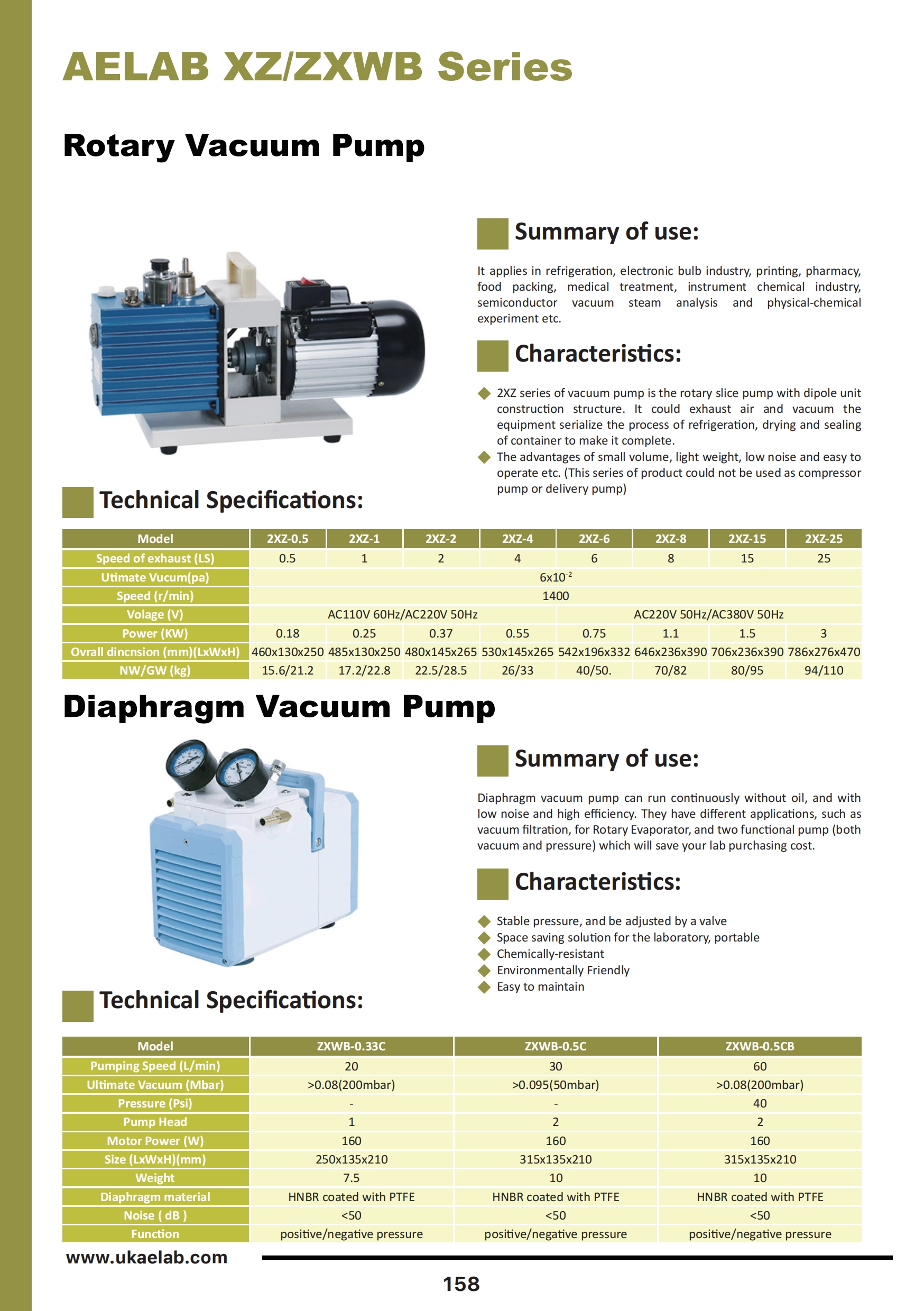

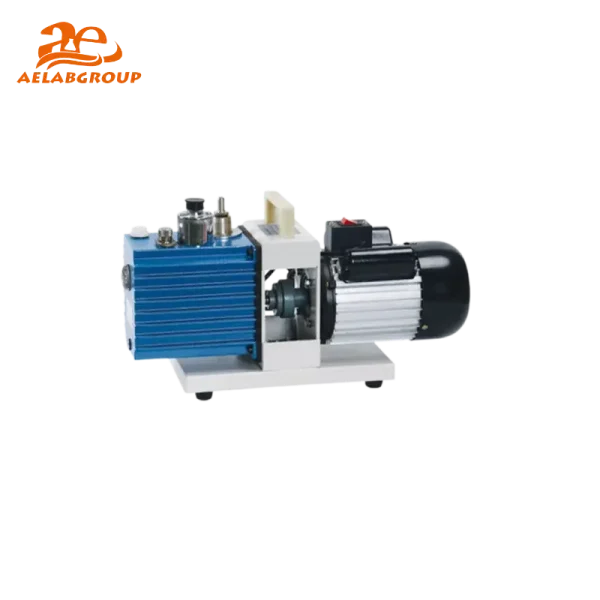

Rotary Vacuum Pump 2XZ-0.5 Series

A rotary vacuum pump creates a vacuum by trapping and compressing air or gas through rotating mechanisms, commonly used in various industrial and laboratory applications.

Modles : 2XZ-0.5,2XZ-1,2XZ-2,2XZ-4,2XZ-6,2XZ-8,2XZ-15,2XZ-25

Quantity:

Send Email

Summary of use:　

It applies in refrigeration, electronic bulb industry, printing, pharmacy, food packing, medical treatment, instrument chemical industry, semiconductor vacuum steam analysis and physical-chemical experiment etc.

Characteristics:

2XZ series of vacuum pump is the rotary slice pump with dipole unit construction structure. It could exhaust air and vacuum the equipment serialize the process of refrigeration, drying and sealing of container to make it complete.
The advantages of small volume, light weight, low noise and easy to operate etc. (This series of product could not be used as compressor pump or delivery pump)

Specifications :

odel	2XZ-0.5	2XZ-1	2XZ-2	2XZ-4	2XZ-6	2XZ-8	2XZ-15	2XZ-25
Speed of Exhaust (L/S)	0.5	1	2	4	6	8	15	25
Ultimate Vacuum (pa)	6x10²	6x10²	6x10²	6x10²	6x10²	6x10²	6x10²	6x10²
Speed (r/min)	1400	1400	1400	1400	1400	1400	1400	1400
Voltage (V)	AC110V 60Hz / AC220V 50Hz	AC220V 50Hz / AC380V 50Hz
Power (KW)	0.18	0.25	0.37	0.55	0.75	1.1	1.5	3
Overall Dimensions (mm) (LxWxH)	460x130x250	485x130x250	480x145x265	530x145x265	542x196x332	646x236x390	706x236x390	786x276x470
NW / GW (kg)	15.6 / 21.2	17.2 / 22.8	22.5 / 28.5	26 / 33	40 / 50	70 / 82	80 / 95	94 / 110
