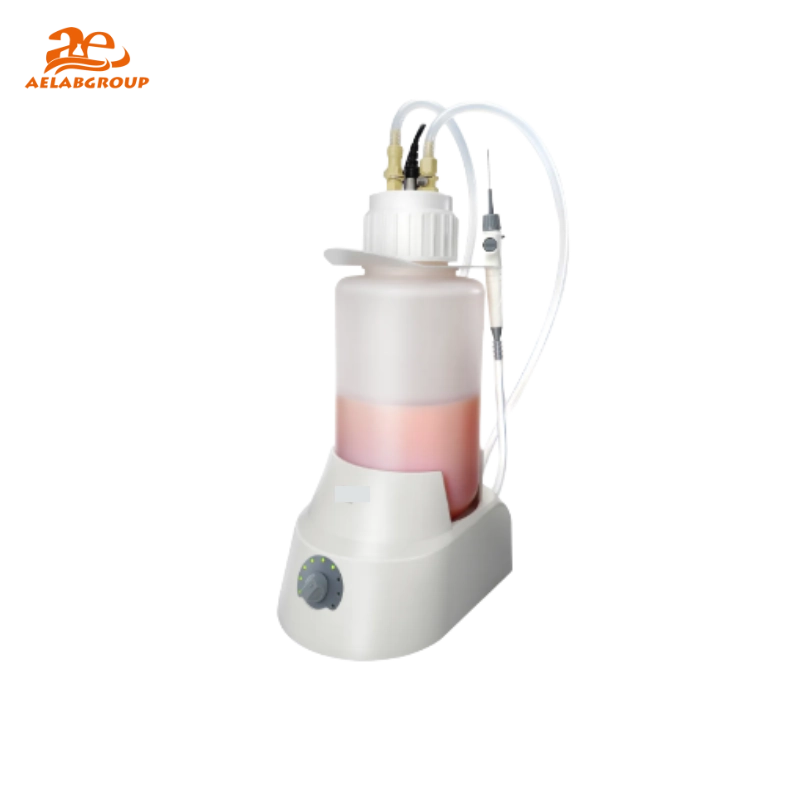

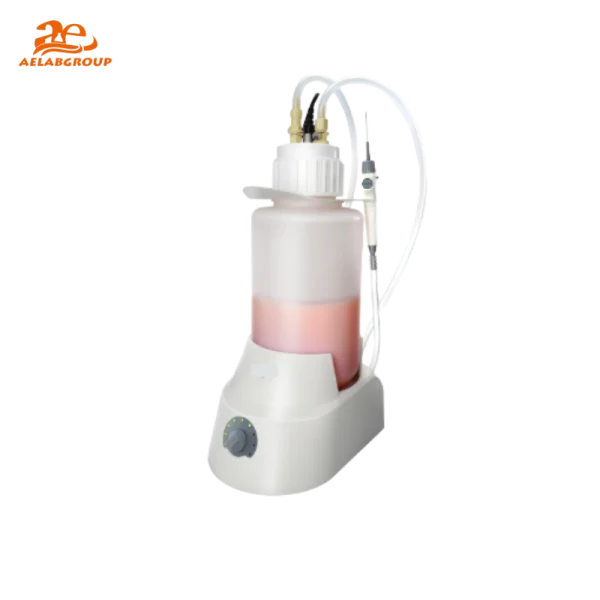

The AELAB SafeVac Vacuum-Controlled Aspiration System (4L) is a safe and efficient solution for laboratory liquid waste disposal. With a compact design, overflow protection, and autoclavable parts, it guarantees contamination-free operation. Ideal for biological, chemical, and radioactive waste handling, this system ensures maximum safety and convenience for laboratory professionals.
The AELAB SafeVac Vacuum-Controlled Aspiration System 4L provides laboratories with a safe and efficient method of handling critical or biological liquid waste. With a compact user-friendly design, autoclavable components, and an advanced overflow detection system, this instrument ensures safety and reliability for professional laboratory environments.
The AELAB SafeVac System uses a vacuum-controlled aspiration process to collect and separate waste liquids in laboratories. A sensitive level detection sensor prevents overflow, while self-closing connectors eliminate aerosol risks. Users can easily adjust the vacuum via a control knob and monitor operation through the indicator light. All liquid-contact parts are autoclavable, ensuring sterile and safe handling.
✅ Overflow Protection – Built-in liquid level sensor prevents spills
✅ Autoclavable Components – All contact parts sterilized at 121°C
✅ Compact & Easy to Clean – User-friendly and efficient
✅ Safe Operation – Prevents aerosol release and lab contamination
✅ Quiet Performance – Operates at ≤55 dB for silent labs
✅ Universal Application – Suitable for a wide range of liquid wastes
Educational Laboratories → For teaching lab waste recovery and safe disposal
Molecular Biology & DNA Labs → Perfect for DNA/RNA extraction and microplate waste removal
Research & QC Labs → Ensures contamination-free waste management in high-precision testing
Hospitals & Biotech Labs → For safe disposal of biohazardous and chemical waste
Cell culture and DNA extraction labs
Microplate waste recovery
Clinical and diagnostic laboratories
Biological and chemical research centers
Radioactive waste liquid handling
| Code | Description |
|---|---|
| A | 8-channel tip detrosion adapter, 200 µL tip (Cat. No. 17600105) |
| B | 8-channel needle Ø1.5 mm (Cat. No. 17100360) |
| C | Single needle Ø2.5 mm, 40 mm (Cat. No. 17100602) |
| D | Single needle Ø2.5 mm, 120 mm (Cat. No. 17100603) |
| E | Single needle Ø1.5 mm, 40 mm (Cat. No. 17100556) |
| F | Single needle Ø1.5 mm, 120 mm (Cat. No. 17100557) |
| G | Tip detrosion adapter 200 µL tip (Cat. No. 17100578) |
| H | Tip detrosion adapter 1 mL tip (Cat. No. 17900150) |
| I | SafeVac Handle bracket (Cat. No. 17900127) |
| J | Handle Hoop (Vacuum Aspirator) |
Specifications :
| Specification | Details |
|---|---|
| Model | SafeVac |
| Cat. No. | 7035100000 |
| Vacuum Range | 0–600 mbar |
| Max Flow (Air) | 15 L/min |
| Max Aspiration Speed | 17 mL/s (Liquid) |
| Bottle Capacity | 4 L |
| Autoclavable Components | Tube, waste bottle, operation handle |
| Noise Level | ≤55 dB |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Dimensions (W×D×H) | 180 × 240 × 450 mm |
| Weight | 3 kg |
| Specification | Details |
|---|---|
| Model | SafeVac |
| Cat. No. | 7035100000 |
| Vacuum Range | 0–600 mbar |
| Max Flow (Air) | 15 L/min |
| Max Aspiration Speed | 17 mL/s (Liquid) |
| Bottle Capacity | 4 L |
| Autoclavable Components | Tube, waste bottle, operation handle |
| Noise Level | ≤55 dB |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Dimensions (W×D×H) | 180 × 240 × 450 mm |
| Weight | 3 kg |
