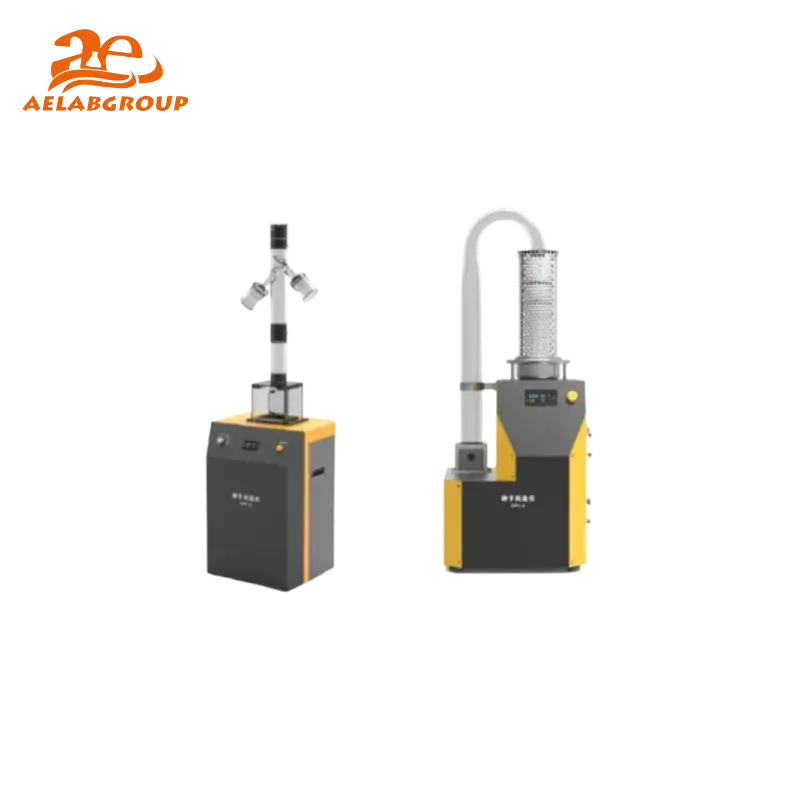

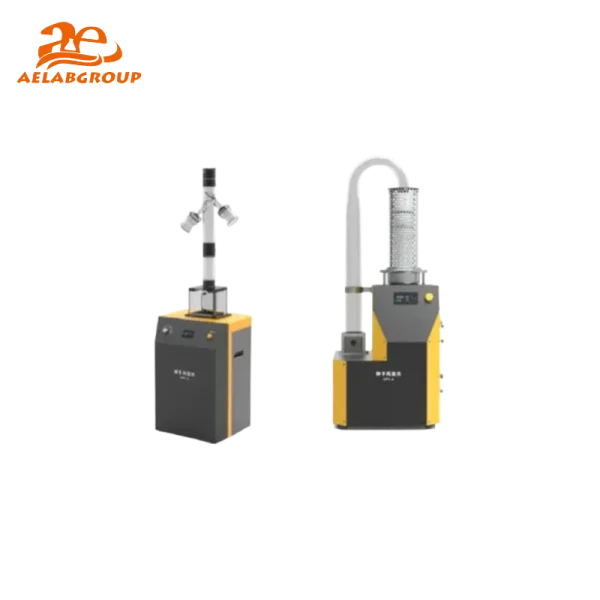

Seed Blower CFY-3/CFY-4

A seed blower is a device used to separate seeds from chaff, dust, and other light debris. It works by using air flow to lift and sort seeds based on their weight and density. This tool is commonly used in seed cleaning and grading processes, ensuring that only the highest quality seeds are selected for planting or further analysis.
Modles : CFY-3、CFY-4
whatsapp Whatsapp

A seed blower is a specialized device used to clean and sort seeds by separating them from lighter debris such as chaff, dust, and husks. It uses controlled air flow to lift and classify seeds based on their weight and density, effectively isolating high-quality seeds from impurities. This tool is essential in seed processing and grading, ensuring that the seeds selected for planting or research are pure and of consistent quality.

  • Metal shell, strong vibration resistance.
  • Beautiful shape, small noise, reliable operation, good safety.
  • High-quality glass tube,operation process is visualized.
  • Controlled automatically.
  • Wind speed and air flow are adjustable according to granule size.
  • The impurity enters into cup through the separation tube, separated from seeds completely.

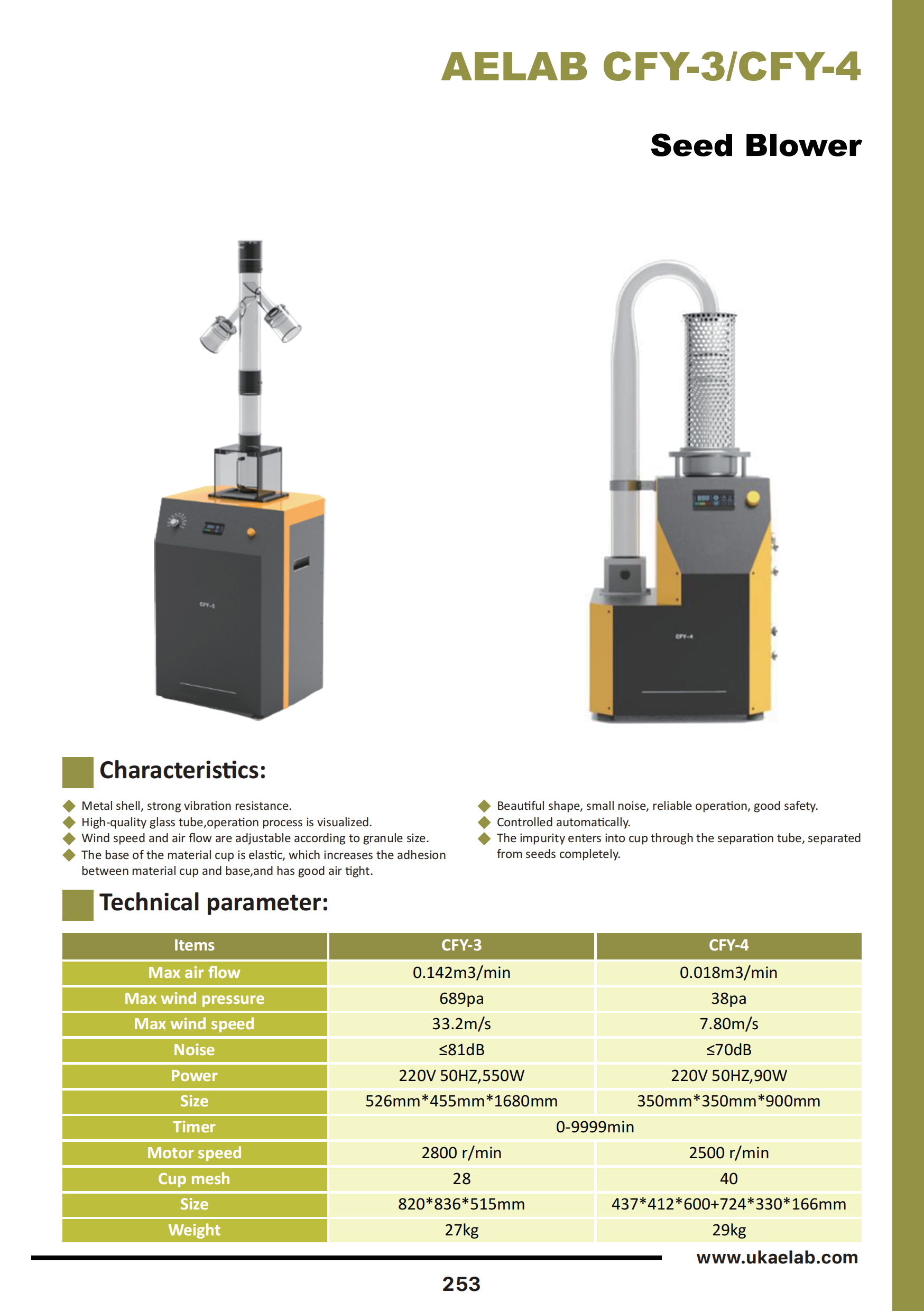

Specifications :

Items CFY-3 CFY-4
Max air flow 0.142m3/min 0.018m3/min
Max wind pressure 689pa 38pa
Max wind speed 33.2m/s 7.80m/s
Noise ≤81dB ≤70dB
Power 220V 50HZ,550W 220V 50HZ,90W
Size 526mm*455mm*1680mm 350mm*350mm*900mm
Timer 0-9999min 0-9999min
Motor speed 2800 r/min 2500 r/min
Cup mesh 28 40
Size 27kg,820*836*515mm 29kg,437*412*600+724*330*166mm
Items CFY-3 CFY-4
Max air flow 0.142m3/min 0.018m3/min
Max wind pressure 689pa 38pa
Max wind speed 33.2m/s 7.80m/s
Noise ≤81dB ≤70dB
Power 220V 50HZ,550W 220V 50HZ,90W
Size 526mm*455mm*1680mm 350mm*350mm*900mm
Timer 0-9999min 0-9999min
Motor speed 2800 r/min 2500 r/min
Cup mesh 28 40
Size 27kg,820*836*515mm 29kg,437*412*600+724*330*166mm
