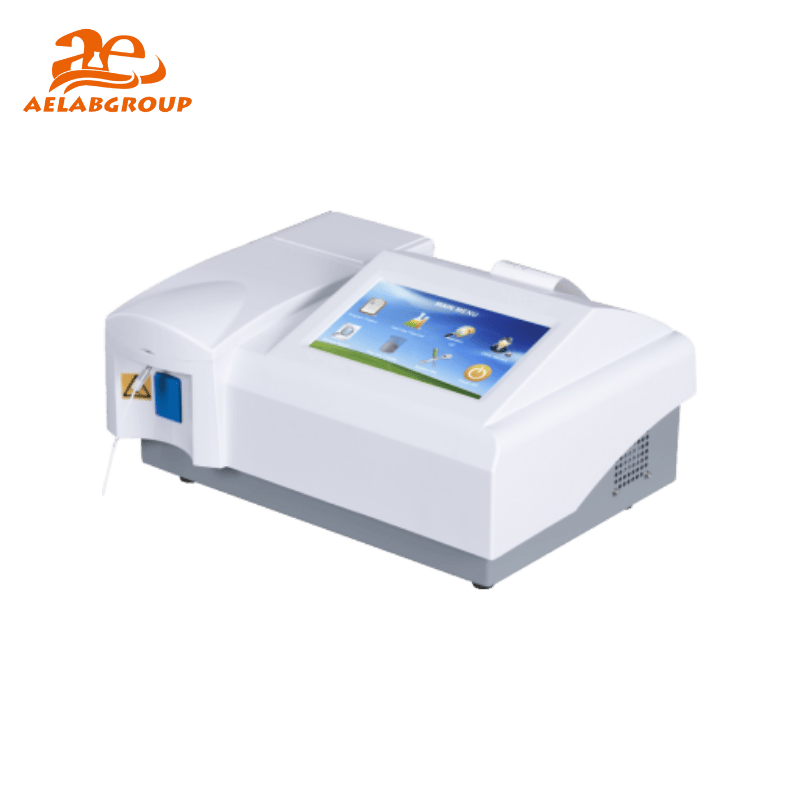

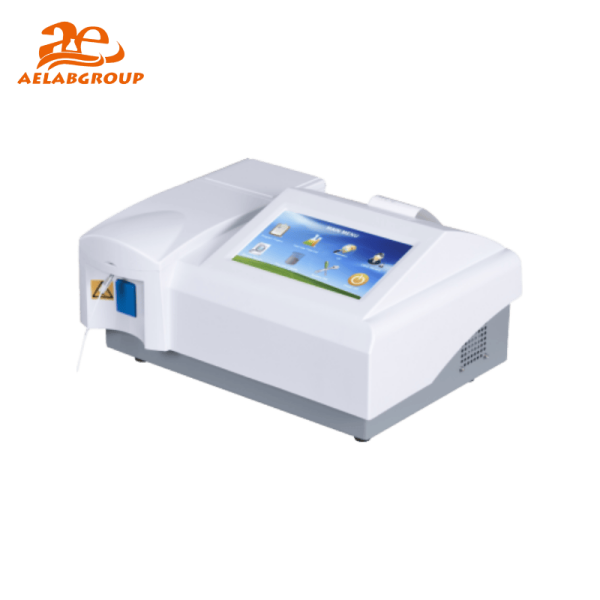

The SK3001B Semi-Auto Chemistry Analyzer is a highly efficient and user-friendly laboratory instrument designed for a broad range of biochemical tests. Equipped with 7 wavelengths, it is capable of performing complex assays with precision. It comes pre-programmed with 112 test items, covering a variety of common clinical tests for comprehensive diagnostic applications.
Featuring a 7-inch color LCD display that can be operated with both finger and stylus, the analyzer ensures a seamless user experience. The analyzer supports both flow cell and cuvette test modes, providing flexible options depending on the nature of the sample. Additionally, it displays real-time curves to allow for continuous monitoring during testing.
With the ability to store up to 10,000 sample results and support for 150 test items, the SK3001B ensures reliable data management. The light source hibernate function extends the lamp’s life, reducing the cost of maintenance. The device also offers RS232 connectivity, allowing easy integration with PC systems for enhanced data management and analysis. This combination of features makes the SK3001B an ideal choice for laboratories seeking a high-performance, cost-effective, and user-friendly chemistry analyzer.
Feature:
✅ 🔍 Recommended Models by Use Case
Different lab environments demand tailored solutions—here’s how the SK3001B fits:
🏫 Educational Labs: Ideal for teaching environments with hands-on biochemical testing
🧬 Clinical & Research Labs: Supports wide diagnostic menus and real-time analysis
🧪 Quality Control Labs: High repeatability and built-in quality control charts (SD, CV%, L-J curves)
🏥 Small to Mid-sized Clinics: Affordable and user-friendly interface with internal printer
✅ 🧪 Ideal For
The SK3001B is suited for a wide range of applications:
Clinical chemistry labs
Hospital diagnostic centers
Pharmaceutical R&D labs
Food and environmental testing labs
Educational institutions for practical training
QC departments in life sciences and healthcare
✅ ❓ FAQ – Lab-Focused
Q: How is calibration done on the SK3001B?
A: Calibration is supported via absorbance precision settings and quality control curves (SD, CV%, L-J) for each test item, allowing precise validation.
Q: Is the analyzer GMP-compliant?
A: Yes, the SK3001B is designed for clinical and lab environments where Good Manufacturing Practice (GMP) compliance is essential. Full documentation available upon request.
Q: What’s the warranty period?
A: The SK3001B comes with a standard 1-year warranty covering manufacturing defects and performance issues. Extended warranty options are available.
Q: Can it connect to a PC or LIMS?
A: Yes, it features an RS232 interface for smooth PC integration and data export, supporting lab automation needs.
Specifications :
| Test mode | End-point, two-point, kinetic, turbidimetry and ABS |
| Wavelength | 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position |
| Wavelength precision | ±2 nm, width ≤ 10nm |
| Flow cell | 32 uL quartz glass, 10 mm |
| Incubator | 37℃、30℃、25℃、Precision : ±0.1℃ |
| Sample volume | 0~3000 uL (≥500uL recommend) |
| Lamp | Philips 6V 10W Halogen Lamp with long life |
| Languages | English, French, Spanish, Portuguese, Indonesian, Russian |
| Absorbance range | 0~4.500 Abs |
| Absorbance precision | Outside 0.0001 Abs , inside 0.00001 Abs |
| Carry over | < 1% |
| Repeatability CV | < 1% |
| Data storage | ≥10000 |
| Quality control curve | 、SD、CV%、L-J quality control curve for every test item |
| CPU | ARM series high speed micro CPU |
| Printer | Internal thermal sensitive printer |
| Interface | RS-232 |
| Work environment | Temperature 0℃ ~ 40℃, Humidity: ≤80% |
| Power supply | 100~240VAC，50-60Hz，100VA |
| Dimension | 340(L)*270(W)*160(H) |
| Weight | 5 kg |
Usual Test List:
| Liver function | ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3 |
| Renal function | BUN CRE UA URE CO2-CP γ-GT |
| Lipids | T-CHO TG HDL-C LDL-C |
| Cardiac function | CK CK-MB LDH |
| Immune proteins | IGA IGG IGM C3 |
| Others | GLU AMS Anti-CCP ASO CRP D-Dimer HbA1c RF SAA
B2M Cys-C LP(a) mAlb MB NGAL RBP |
| Test mode | End-point, two-point, kinetic, turbidimetry and ABS |
| Wavelength | 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position |
| Wavelength precision | ±2 nm, width ≤ 10nm |
| Flow cell | 32 uL quartz glass, 10 mm |
| Incubator | 37℃、30℃、25℃、Precision : ±0.1℃ |
| Sample volume | 0~3000 uL (≥500uL recommend) |
| Lamp | Philips 6V 10W Halogen Lamp with long life |
| Languages | English, French, Spanish, Portuguese, Indonesian, Russian |
| Absorbance range | 0~4.500 Abs |
| Absorbance precision | Outside 0.0001 Abs , inside 0.00001 Abs |
| Carry over | < 1% |
| Repeatability CV | < 1% |
| Data storage | ≥10000 |
| Quality control curve | 、SD、CV%、L-J quality control curve for every test item |
| CPU | ARM series high speed micro CPU |
| Printer | Internal thermal sensitive printer |
| Interface | RS-232 |
| Work environment | Temperature 0℃ ~ 40℃, Humidity: ≤80% |
| Power supply | 100~240VAC，50-60Hz，100VA |
| Dimension | 340(L)*270(W)*160(H) |
| Weight | 5 kg |
Usual Test List:
| Liver function | ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3 |
| Renal function | BUN CRE UA URE CO2-CP γ-GT |
| Lipids | T-CHO TG HDL-C LDL-C |
| Cardiac function | CK CK-MB LDH |
| Immune proteins | IGA IGG IGM C3 |
| Others | GLU AMS Anti-CCP ASO CRP D-Dimer HbA1c RF SAA
B2M Cys-C LP(a) mAlb MB NGAL RBP |
