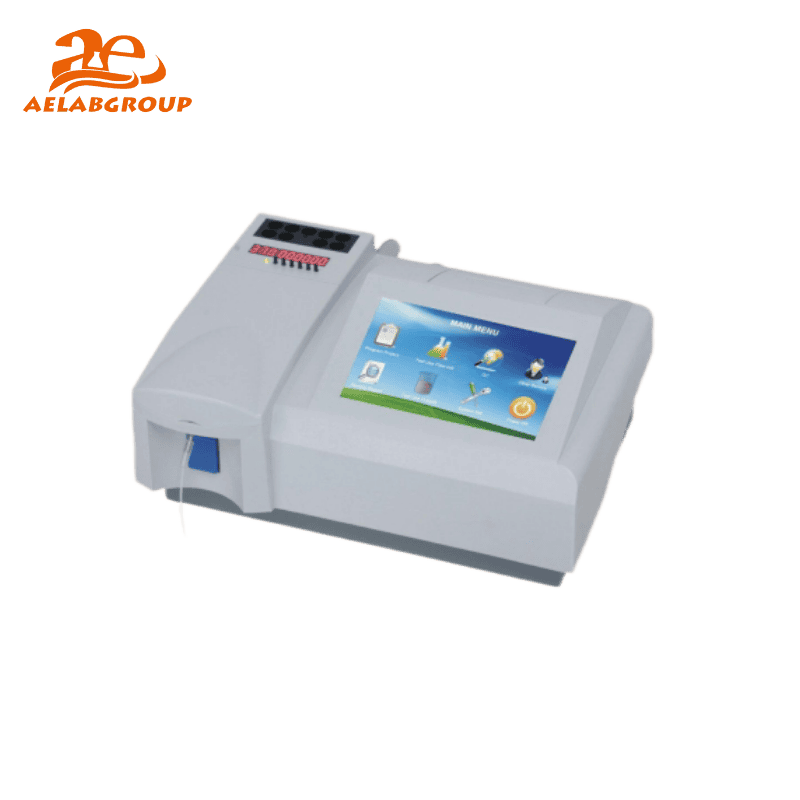

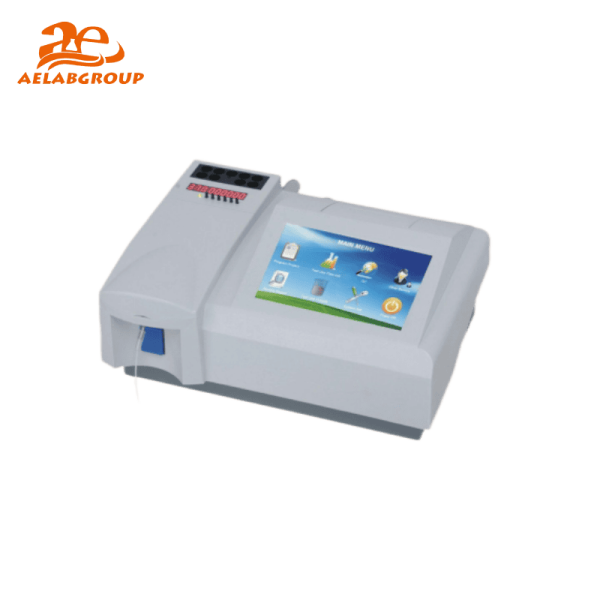

The SK3003 Semi-Auto Chemistry Analyzer is designed to streamline biochemical testing with high precision and ease of use. Featuring a 7-inch color LCD touchscreen, it provides an intuitive interface for seamless operation. With 10 incubators and 3 timers, the analyzer ensures stable testing conditions and precise timing, ideal for a range of assays.
This device is versatile, offering compatibility with both flow cell and cuvette test modes, giving flexibility to different test types. It displays real-time curves during analysis, allowing immediate feedback and monitoring. Pre-programmed with 80 test items, the SK3003 can handle a broad spectrum of tests, while its large memory capacity allows for the storage of up to 10,000 sample results, ensuring efficient data management.
The light source hibernate function extends the life of the light source, reducing maintenance costs and improving long-term reliability. Equipped with RS232 connectivity, it easily integrates with PC systems for enhanced data management and analysis, making it a valuable asset for laboratories seeking both performance and efficiency.
Usual test list
Feature
✅ 🔍 Recommended Models by Use Case
Which Lab Type Fits Best with the SK3003?
Educational Labs: Simple UI, reliable test repeatability, ideal for training future lab technicians
Hospital & Clinical Labs: Accurate liver, renal, and cardiac function testing for rapid diagnostics
Research Institutions: Memory-rich and versatile for multiple test types and high sample throughput
Quality Control (QC) Labs: Compatible with flow and cuvette methods, adaptable to various testing needs
✅ 🧪 Ideal For
Applications & Lab Types That Benefit Most
Biochemical analysis in clinical laboratories
Routine testing in hospital diagnostic centers
Food safety and quality testing labs
Pharmaceutical R&D and formulation labs
Educational institutions with biomedical programs
Research in environmental science and toxicology
✅ ❓ FAQ – Lab-Focused
How is calibration done?
Calibration is performed using pre-set standards and quality control curves (X, SD, CV%, L-J curve) integrated into the system for each test item.
Is the device GMP compliant?
Yes, the SK3003 is designed to support laboratories that follow GMP and GLP protocols with its data integrity features and calibration support.
How long is the warranty?
The AELAB SK3003 comes with a standard 12-month warranty, with optional extended service packages available.
Specifications :
| Feature | Details |
| Test Modes | Kinetic, End point, Two point, Absorbance |
| Wavelengths | 7 standard: 340, 405, 492, 510, 546, 578, 630 nm; 1 free position |
| Wavelength Precision | ±2nm, width ≤10nm |
| Absorbance Range | 0~4.500 Abs |
| Absorbance Precision | Outside: 0.0001 Abs; Inside: 0.00001 Abs |
| Incubators | 10 units, 37 ± 0.3℃ |
| Timers | 3 units, precision ±0.1S |
| Carry Over | < 1% |
| Repeatability CV | < 1% |
| Flowcell Incubator | 37℃, 30℃, 25℃, etc.; precision ±0.1℃ |
| Sample Volume | 0~3000 μL (500μL recommended) |
| Data Storage | 10,000 entries |
| Quality Control Curve | X, SD, CV%; L-J curve per test item |
| Flow Cell | 32 μL quartz glass, 10 mm path |
| Lamp | Philips 6V 10W Halogen (long - life) |
| Screen | 7 - inch color LCD |
| CPU | ARM series high - speed micro CPU |
| Printer | Internal thermal - sensitive |
| Interface | RS - 232 |
| Work Environment | 0℃ ~ 40℃ (temp); 80% (humidity) |
| Power Supply | 100 ~ 240VAC, 50 - 60Hz, 100VA |
| Dimension | 340(L) * 270(W) * 160(H) mm |
| Weight | 5 kg |
| Feature | Details |
| Test Modes | Kinetic, End point, Two point, Absorbance |
| Wavelengths | 7 standard: 340, 405, 492, 510, 546, 578, 630 nm; 1 free position |
| Wavelength Precision | ±2nm, width ≤10nm |
| Absorbance Range | 0~4.500 Abs |
| Absorbance Precision | Outside: 0.0001 Abs; Inside: 0.00001 Abs |
| Incubators | 10 units, 37 ± 0.3℃ |
| Timers | 3 units, precision ±0.1S |
| Carry Over | < 1% |
| Repeatability CV | < 1% |
| Flowcell Incubator | 37℃, 30℃, 25℃, etc.; precision ±0.1℃ |
| Sample Volume | 0~3000 μL (500μL recommended) |
| Data Storage | 10,000 entries |
| Quality Control Curve | X, SD, CV%; L-J curve per test item |
| Flow Cell | 32 μL quartz glass, 10 mm path |
| Lamp | Philips 6V 10W Halogen (long - life) |
| Screen | 7 - inch color LCD |
| CPU | ARM series high - speed micro CPU |
| Printer | Internal thermal - sensitive |
| Interface | RS - 232 |
| Work Environment | 0℃ ~ 40℃ (temp); 80% (humidity) |
| Power Supply | 100 ~ 240VAC, 50 - 60Hz, 100VA |
| Dimension | 340(L) * 270(W) * 160(H) mm |
| Weight | 5 kg |
