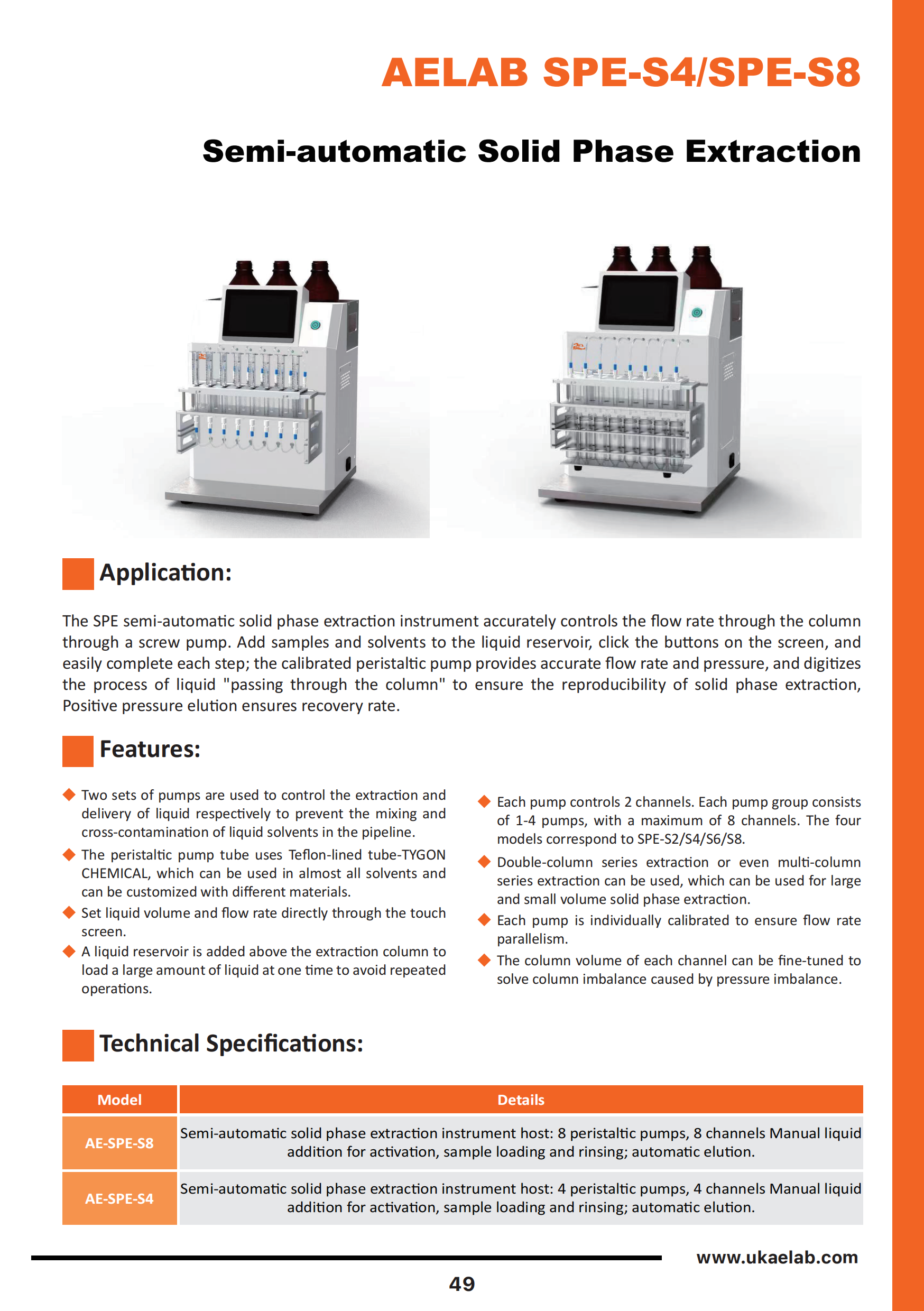

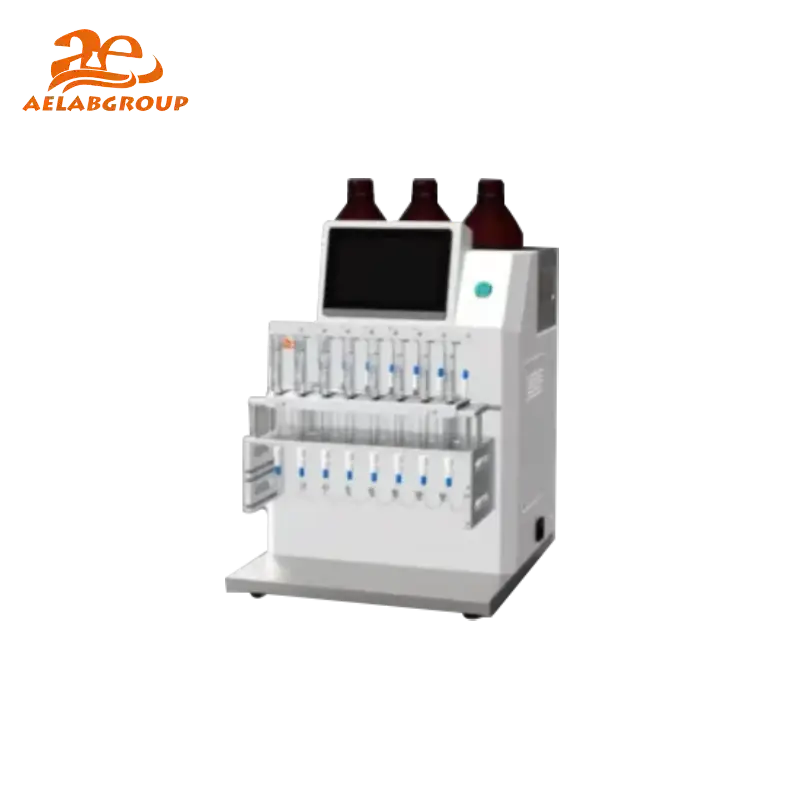

Semi-automatic Solid Phase Extraction AE-SPE-S8/AE-SPE-S4

The SPE semi-automatic solid phase extraction instrument accurately controls the flow rate through the column through a screw pump. Add samples and solvents to the liquid reservoir, click the buttons on the screen, and easily complete each step; the calibrated peristaltic pump provides accurate flow rate and pressure, and digitizes the process of liquid “passing through the column” to ensure the reproducibility of solid phase extraction, Positive pressure elution ensures recovery rate.

Features:

• Two sets of pumps are used to control the extraction and delivery of liquid respectively to prevent the mixing and cross-contamination of liquid solvents in the pipeline.
• The peristaltic pump tube uses Teflon-lined tube-TYGON® CHEMICAL, which can be used in almost all solvents and can be customized with different materials.
• Each pump controls 2 channels. Each pump group consists of 1-4 pumps, with a maximum of 8 channels. The four models correspond to SPE-S2/S4/S6/S8.
• Double-column series extraction or even multi-column series extraction can be used, which can be used for large and small volume solid phase extraction.
• Each pump is individually calibrated to ensure flow rate parallelism.
• The column volume of each channel can be fine-tuned to solve column imbalance caused by pressure imbalance.
• Set liquid volume and flow rate directly through the touch screen.
• A liquid reservoir is added above the extraction column to load a large amount of liquid at one time to avoid repeated operations.
