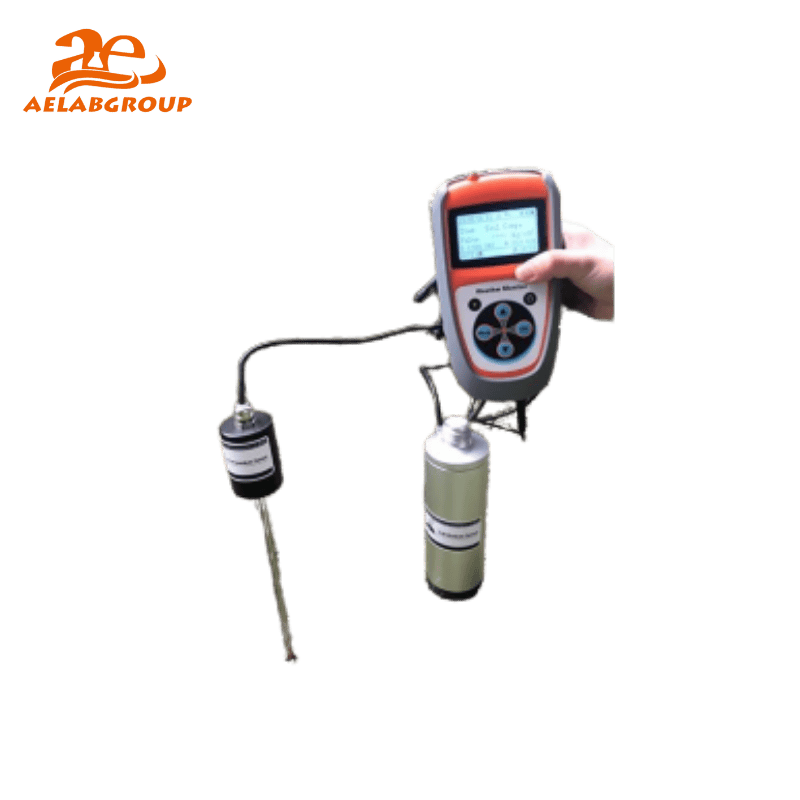

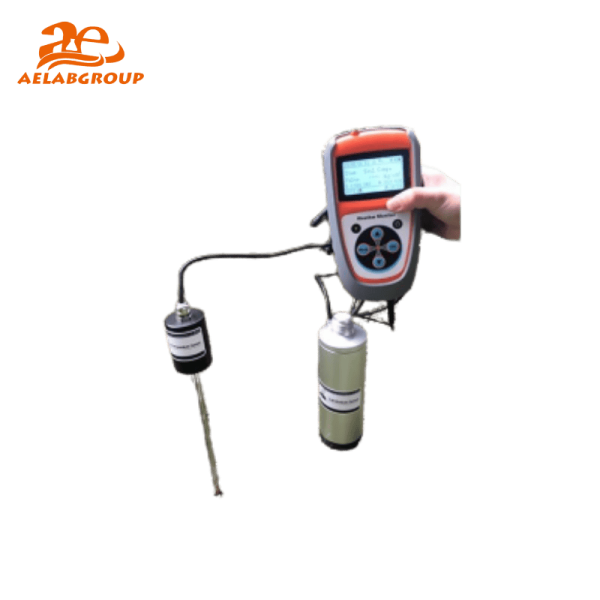

The Soil Monitoring Handset is a portable, high-precision data logger for real-time soil measurement. It features an LCD display, large storage, multi-sensor support, and PC-based data analysis, enabling soil health tracking and report generation.
The Soil Monitoring Handset is a portable, high-precision data logger for real-time soil measurement. It features an LCD display, large storage, multi-sensor support, and PC-based data analysis, enabling soil health tracking and report generation.
The Soil Monitoring Handset is a portable, high-precision data logger designed for real-time soil parameter measurement. Equipped with an LCD display, large storage capacity, and multi-sensor compatibility, it supports both standalone field use and PC-based data analysis. Paired with advanced software, it enables comprehensive soil health tracking, trend visualization, and report generation.
Compact & Portable – Lightweight design with LCD for on-site readings.
Flexible Data Collection – Supports timed/auto or manual recording.
Dual Power Supply – AC/DC compatible; built-in 8.4V 1500mAh Li-ion battery with low-voltage alerts.
High Storage Capacity – Stores 30,000+ datasets; includes 4GB Micro SD (expandable).
Power-Off Protection – Data saved to SD card remains secure during power loss.
Multi-Sensor Support – Connects to multiple probes (e.g., pH, moisture) via RS485 without accuracy loss.
Long-Distance Communication – Sensor cables extend up to 100 meters.
Low-Power & Safe – Anti-interference design with short-circuit protection.
Optional GPS – For geotagged soil data.
Trend Analysis – Graphs parameter curves (Max/Min/Avg) with zoom functionality.
Visual Alerts – Color-coded overrun thresholds for quick diagnostics.
Data Export – Saves to Excel for further analysis; supports printing.
Customizable Coordinates – Adjustable axes for detailed comparisons.
Specifications :
| Category | Specifications |
|---|---|
| Storage | 30,000+ datasets; 4GB Micro SD (standard) |
| Data Interval | Adjustable (5 mins–99 hours) |
| Power Supply | 8.4V Li-ion battery (1500mAh) / AC adapter |
| Standby Current | 10mA |
| Communication | RS485 (100m max cable length) |
| Optional GPS | Yes |
| Soil pH Range | 0–14 |
| pH Accuracy | ±0.5 |
| Category | Specifications |
|---|---|
| Storage | 30,000+ datasets; 4GB Micro SD (standard) |
| Data Interval | Adjustable (5 mins–99 hours) |
| Power Supply | 8.4V Li-ion battery (1500mAh) / AC adapter |
| Standby Current | 10mA |
| Communication | RS485 (100m max cable length) |
| Optional GPS | Yes |
| Soil pH Range | 0–14 |
| pH Accuracy | ±0.5 |
