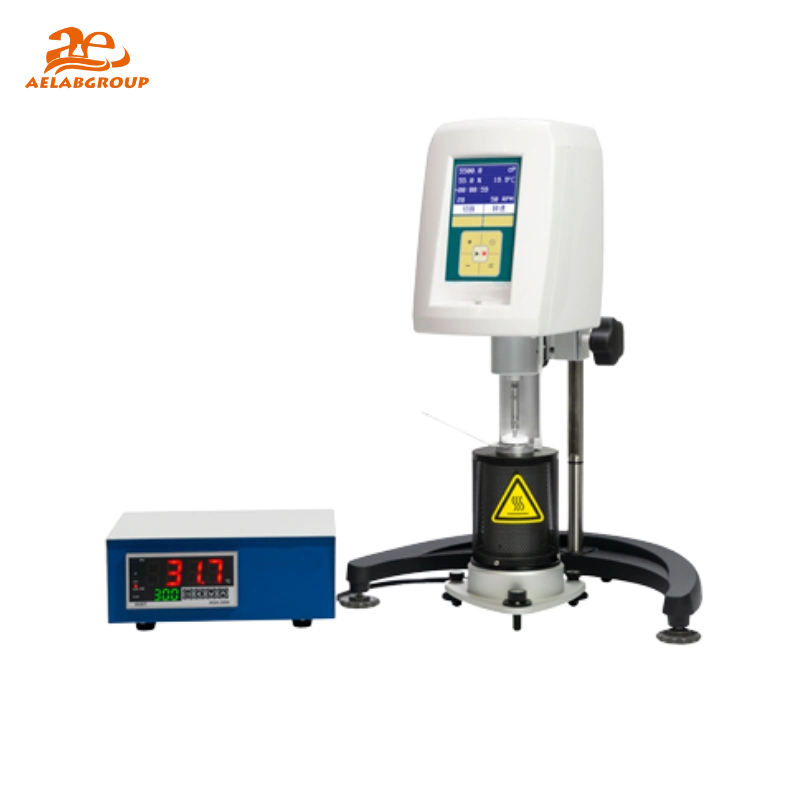

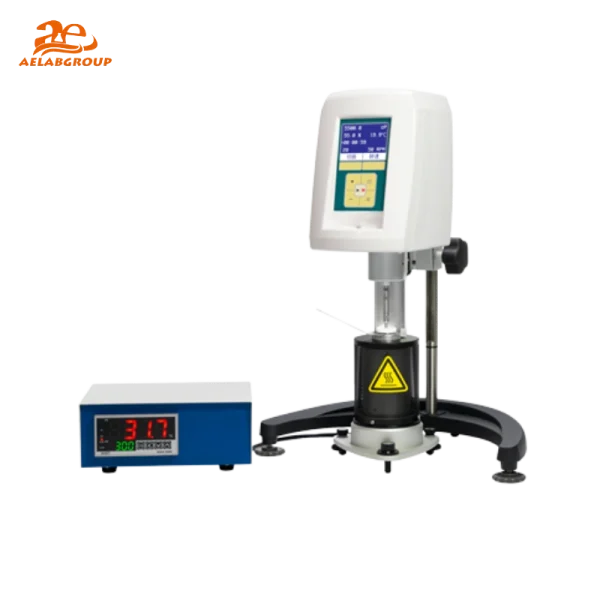

AELAB SSR-H Series High-Temperature Rotating Viscometer for Coaxial Viscosity Measurement

The AELAB SSR-H Series high-temperature rotating viscometer is designed for accurate viscosity measurement using a coaxial rotational method under elevated temperature conditions. The instrument utilizes a center-structure design with a small-volume sample adapter, enabling efficient testing with minimal sample consumption.

The AELAB SSR-H Series integrates rapid and accurate temperature regulation through an external furnace system, ensuring stable thermal control throughout the measurement process. Linear full-range torque control and real-time data acquisition are supported through a computer interface, delivering high precision and repeatability.

⚙️ Design & Construction

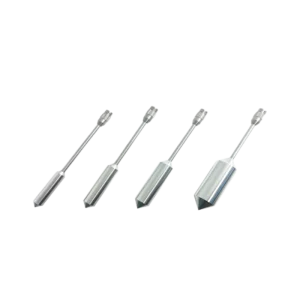

The AELAB SSR-H high-temperature rotating viscometer features a rigid vertical frame with a stabilized rotating shaft and interchangeable coaxial rotors. The instrument is equipped with a liquid-crystal display control head, an external temperature regulating furnace, insulation cover, and precision stepping motor drive for stable rotational motion.

🔬 Working Principle / Testing Method

The AELAB SSR-H Series measures viscosity by rotating a calibrated rotor at controlled speeds within the test sample. The resistance torque generated by the fluid is converted into viscosity values according to the coaxial rotational method. Time-based measurement functions allow effective characterization of non-Newtonian liquid behavior under thermal influence.

💡 Key Advantages

• Direct LCD display of viscosity data without secondary calculation
• Micro-computer drive technology with imported stepping motor
• Viscosity resolution accuracy to 0.1% of full range
• Automatic rotor and speed combination recommendation
• Automatic display of maximum measurable viscosity range
• Timing measurement function for non-Newtonian liquids
• Support for multiple viscosity units and temperature units

🔗 Connectivity & Integration

The AELAB SSR-H rotating viscometer includes a computer connection interface for direct data output. A printing interface allows optional micro-printer connection for on-site data reporting. Optional data software supports rheological curve display of shear rate versus viscosity.

🧠 Model Insight

🧪 Testing Applications

The AELAB SSR-H Series high-temperature rotating viscometer is suitable for viscosity measurement of polymers, resins, asphalt, lubricants, coatings, chemical intermediates, food materials, pharmaceutical formulations, and other Newtonian and non-Newtonian fluids requiring controlled high-temperature rheological analysis.

Compliance & Quality Assurance

The AELAB SSR-H Series is manufactured under controlled quality systems and designed for laboratory, industrial, and research use. Each instrument supports calibrated measurement procedures, stable temperature control, and repeatable viscosity testing consistent with ISO-style laboratory practices.
