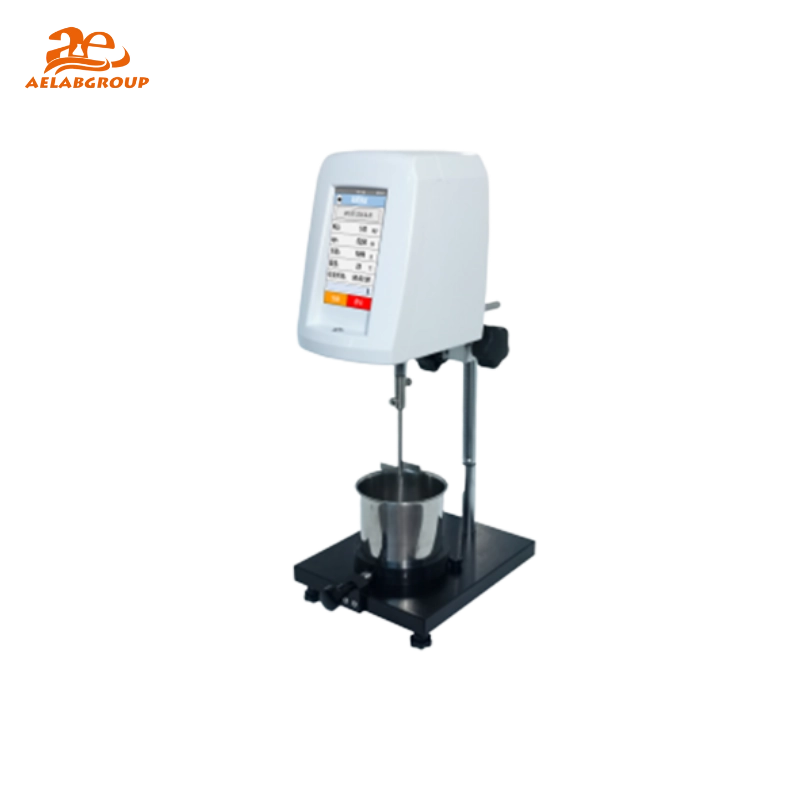

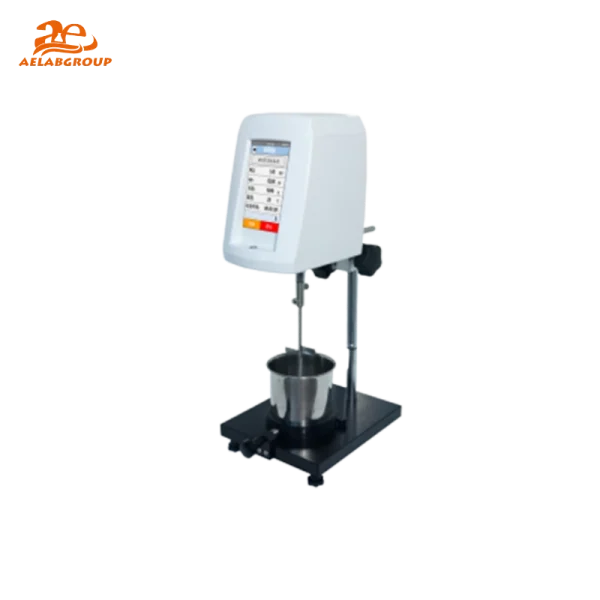

The AELAB STM-2T Stormer Viscometer integrates touch screen control and intelligent measurement technology for fast, accurate viscosity testing of paint, ink, and coating materials. Designed for industrial quality control and laboratory analysis, the STM-2T Stormer Viscometer provides stable rotational speed and high repeatability to ensure reliable KU viscosity evaluation.
The AELAB STM-2T Stormer Viscometer is widely used to determine KU values representing material viscosity in accordance with ASTM D562 and GB9296 standards. The instrument supports quantitative viscosity analysis of non-Newtonian fluids with strong anti-jamming performance and real-time data visualization.
The AELAB STM-2T Stormer Viscometer features a rigid vertical frame with precision rotor alignment to ensure accurate torque transmission. The measuring rotor is vertically immersed into the sample container, while a front observation level allows precise leveling of the base to maintain measurement consistency.
The STM-2T Stormer Viscometer measures viscosity by rotating a standardized paddle at a constant speed of 200 r/min within the sample. The resistance torque generated by the fluid is converted into KU, g, and cP values, enabling quantitative analysis of shear-thinning non-Newtonian materials.
The AELAB STM-2T Stormer Viscometer is used for viscosity analysis in paint manufacturing, ink production, coatings development, resin processing, and material research laboratories. It supports process control, formulation comparison, and quality assurance testing.
The STM-2T Stormer Viscometer is designed in accordance with ASTM D562 and GB9296 testing standards. Calibration using standard viscosity liquids ensures traceable measurement accuracy, supporting ISO-style laboratory quality management and repeatable industrial testing.
Specifications :
| Model | STM-2T |
| Control / Display Mode | 5 inch color touch screen |
| Speed (r/min) | 200 ±0.1 |
| Measuring Range | 40.2 KU – 141.0 KU 32 g – 1099 g 27 – 52500 cP |
| Measurement Accuracy | ±3% |
| Measurement Reproducibility | ±1.5% |
| Measuring Container | 1 pint |
| Timing | Flexible setting according to sample condition |
| Temperature Measurement | Standard temperature probe interface (optional temperature probe required) |
| Self Built Measurement Procedure | 30 sets (including sample, measurement time, date) |
| Save Measurement Results | 30 sets of data (KU, g, cP, time, curves) |
| Viscograph | Real-time viscosity curve display |
| Data and curves printable (optional printer) | |
| Data Output Interface | USB interface (U disk data copy) RS232 interface (computer connection) |
| Thermostatic Unit | Optional special viscometer thermostatic bath or thermostatic cup |
| Working Power Supply | 110 V / 60 Hz or 220 V / 50 Hz |
| Outline Dimension (mm) | 300 × 300 × 450 |
| Model | STM-2T |
| Control / Display Mode | 5 inch color touch screen |
| Speed (r/min) | 200 ±0.1 |
| Measuring Range | 40.2 KU – 141.0 KU 32 g – 1099 g 27 – 52500 cP |
| Measurement Accuracy | ±3% |
| Measurement Reproducibility | ±1.5% |
| Measuring Container | 1 pint |
| Timing | Flexible setting according to sample condition |
| Temperature Measurement | Standard temperature probe interface (optional temperature probe required) |
| Self Built Measurement Procedure | 30 sets (including sample, measurement time, date) |
| Save Measurement Results | 30 sets of data (KU, g, cP, time, curves) |
| Viscograph | Real-time viscosity curve display |
| Data and curves printable (optional printer) | |
| Data Output Interface | USB interface (U disk data copy) RS232 interface (computer connection) |
| Thermostatic Unit | Optional special viscometer thermostatic bath or thermostatic cup |
| Working Power Supply | 110 V / 60 Hz or 220 V / 50 Hz |
| Outline Dimension (mm) | 300 × 300 × 450 |
