A tablet friability tester evaluates the durability of tablets by measuring their resistance to abrasion and breakage. Tablets are placed in a rotating drum that simulates real-world handling conditions. The drum rotates for a specified time, after which the tablets are removed and weighed to assess weight loss due to chipping or breaking. This test helps ensure that tablets remain intact during packaging, shipping, and handling, maintaining their quality and effectiveness.
Features:
🔬 CS-I / CS-III – Dual drum design ideal for high-throughput QC labs requiring simultaneous testing.

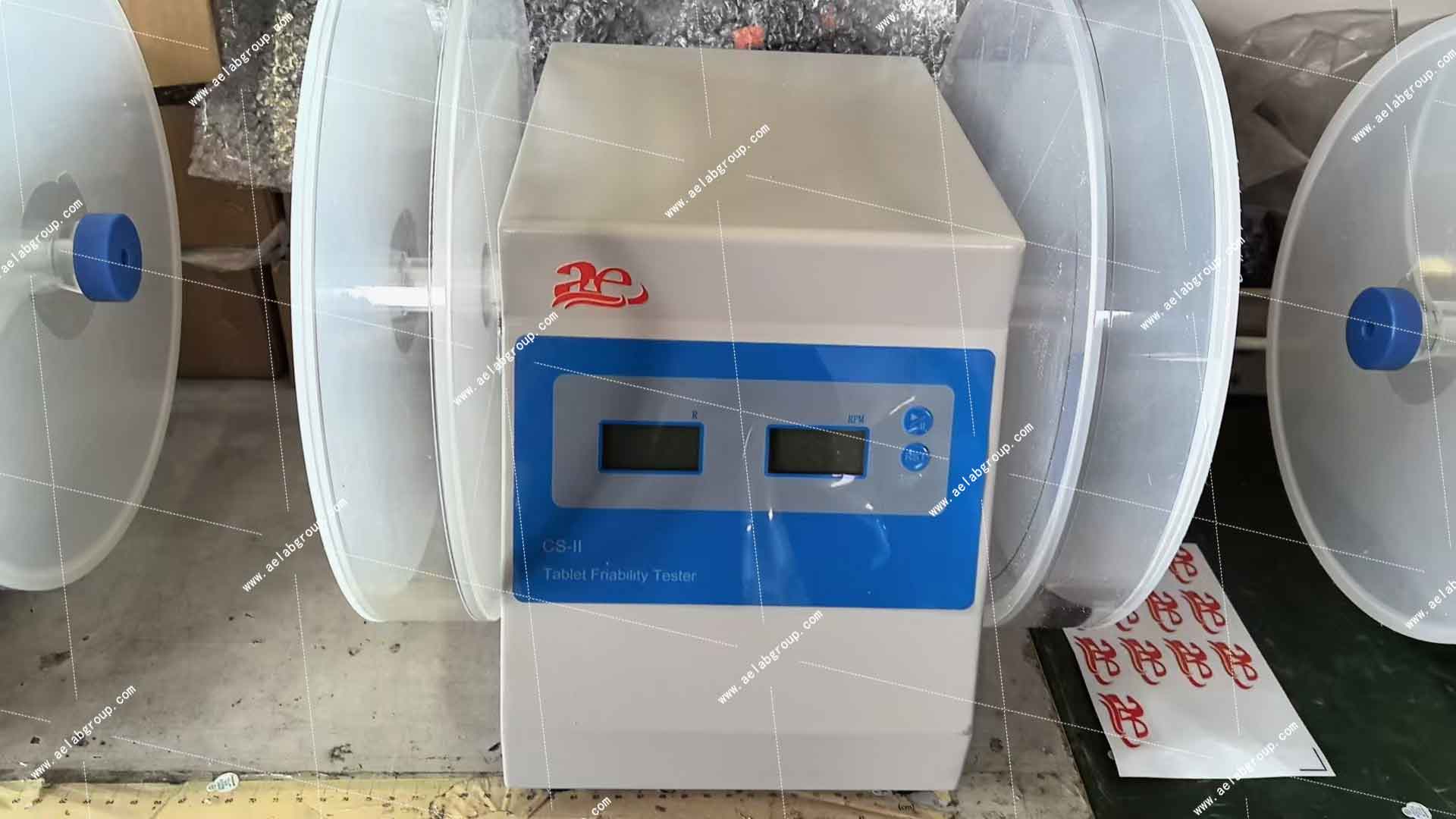

🧪 CS-II – Simplified single drum, perfect for academic or small-scale R&D labs.
🧭 CS-IV – Advanced model with auto-stop and intelligent timing, great for GMP-compliant pharmaceutical production.
✔️ Pharmaceutical QA/QC departments
✔️ GMP-compliant manufacturing labs
✔️ University and academic research labs
✔️ Tablet formulation development centers
Perfect for any laboratory needing accurate friability testing aligned with USP <1216> and other global standards.
Q: Does the AELAB CS Series comply with USP and international standards?
✅ Yes, it’s designed in accordance with USP <1216> and related global pharmacopoeias.
Q: Can I test different tablet sizes and weights?
✅ Absolutely. The adjustable rotation settings accommodate a variety of tablet types.
Q: What makes AELAB different from other lab equipment brands?
🧠 AELAB focuses on precision, reliability, and advanced automation—ideal for labs demanding consistent, repeatable results.
Q: Is maintenance required frequently?
🔧 Minimal maintenance is needed. Its microprocessor-based control reduces wear and extends operational life.

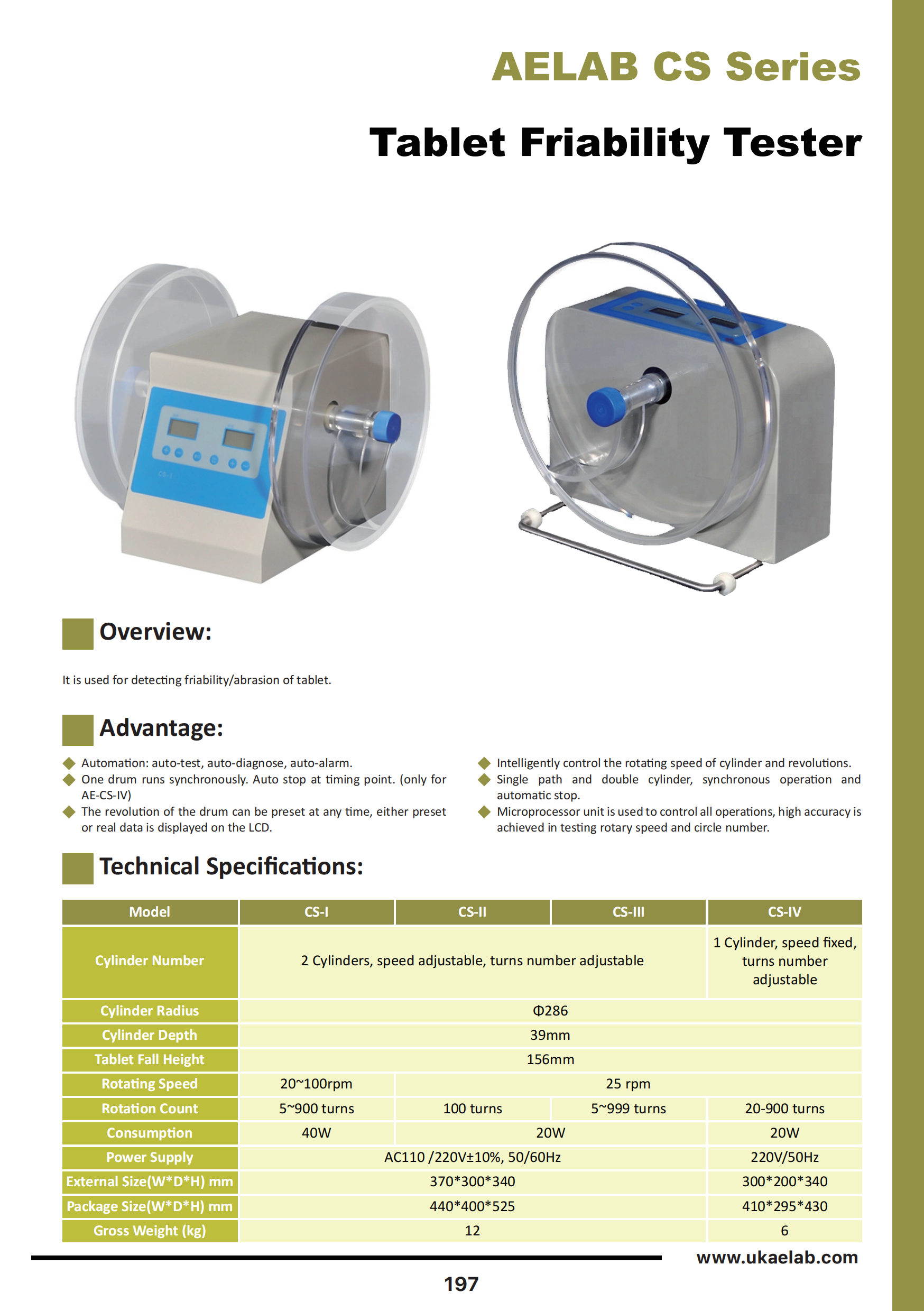

Specifications :
| Model | CS-I | CS-II | CS-III | CS-IV |
| Cylinder Number | 2 | 1 | ||
| Cylinder Radius | Φ286 | |||
| Cylinder Depth | 39mm | |||
| Tablet Fall Height | 156mm | |||
| Rotating Speed | 20~100rpm | 25 rpm | ||
| Rotation Count | 5~900 turns | 100 turns | 5~900 turns | 20-900 turns |
| Consumption | 40W | 20W | 40W | |
| Power Supply | AC110 /220V±10%, 50/60Hz | |||
| External Size(W*D*H) mm | 370*300*340 | 300*200*340 | ||
| Package Size(W*D*H) mm | 440*400*525 | 410*295*430 | ||
| Gross Weight (kg) | 12 | 8 | ||
| Model | CS-I | CS-II | CS-III | CS-IV |
| Cylinder Number | 2 | 1 | ||
| Cylinder Radius | Φ286 | |||
| Cylinder Depth | 39mm | |||
| Tablet Fall Height | 156mm | |||
| Rotating Speed | 20~100rpm | 25 rpm | ||
| Rotation Count | 5~900 turns | 100 turns | 5~900 turns | 20-900 turns |
| Consumption | 40W | 20W | 40W | |
| Power Supply | AC110 /220V±10%, 50/60Hz | |||
| External Size(W*D*H) mm | 370*300*340 | 300*200*340 | ||
| Package Size(W*D*H) mm | 440*400*525 | 410*295*430 | ||
| Gross Weight (kg) | 12 | 8 | ||
