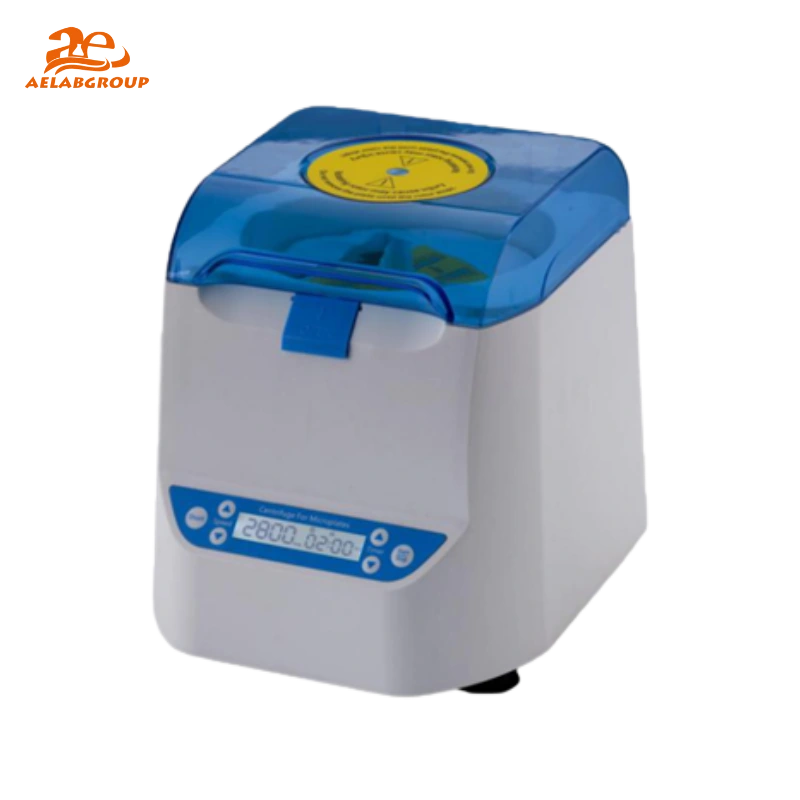

Tabletop Platelet Centrifuge TDD-3M for 96-Well Micro Plate PCR Spin-Down

The AELAB TDD-3M Tabletop Platelet Centrifuge is a micro-plate centrifuge specially designed for 96-hole micro plates. The TDD-3M can quickly spin down droplets and condensation to stabilize liquid distribution in each well during PCR workflows and laboratory testing.

The AELAB TDD-3M plate centrifuge supports skirted, semi-skirted, non-skirted, and standard PCR plates. With rapid acceleration and controlled deceleration, the TDD-3M improves handling convenience through two working modes—press-to-operate or timer control—supporting reproducible centrifugation for molecular biology and diagnostic laboratories.

⚙️ Design & Construction

The AELAB TDD-3M tabletop micro-plate centrifuge is engineered as a compact laboratory centrifuge with a fully opening cover designed to open to 95° for convenient plate loading and unloading. The TDD-3M integrates an LCD display for speed and time visibility, supporting controlled centrifugation of PCR plates with minimal operator error. With a total weight of 2.6 kg and dimensions of 230 × 195 × 195 mm, the TDD-3M is optimized for bench-top use in molecular testing environments.

🔬 Working Principle / Testing Method

The AELAB TDD-3M micro plate centrifuge applies centrifugal force to move residual droplets from well walls toward the bottom of each well, reducing condensation and improving uniformity before and after thermal cycling. By stabilizing sample distribution, the TDD-3M enhances PCR preparation, reagent mixing consistency, and post-cycling sample collection. The centrifuge operates with adjustable rotational speed 500–3000 r/min and reaches up to 600 ×g for efficient plate spin-down under controlled timing from 0–99 min.

💡 Key Advantages

• The AELAB TDD-3M micro-plate centrifuge supports skirted, semi-skirted, non-skirted, and standard PCR plates
• Adjustable speed range 500–3000 r/min enables protocol-specific microplate centrifugation
• Maximum RCF 600 ×g improves droplet and condensation removal from PCR plates
• Acceleration time ≤10 s supports rapid processing between thermal cycling steps
• Deceleration time ≤4 s minimizes sample disturbance and improves workflow speed
• Noise level ≤42 dB(A) supports quiet operation in diagnostic and research laboratories
• Two control modes (press-to-operate or timer control) support consistent operation across users

🔗 Connectivity & Integration

The AELAB TDD-3M tabletop platelet centrifuge integrates an LCD interface for speed and time monitoring and supports standardized timed programs for repeatable plate spin-down. The unit operates on AC220 V / 110 V, 50/60 Hz, 5A, enabling deployment in international laboratory environments and GLP-style workflow standardization.

🧪 Testing Applications

The AELAB TDD-3M plate centrifuge is designed for PCR and microplate workflows where droplet and condensation control improves analytical outcomes. Typical applications include:

• PCR workflow preparation and post-thermal cycling spin-down of 96-well PCR plates
• Diagnostic PCR plate processing in clinical and molecular laboratories
• Reagent consolidation and droplet removal for quantitative PCR (qPCR) preparation
• Microplate sample stabilization for biochemical, enzymatic, and immunoassay workflows
• Environmental and food testing laboratories using microplate-based analytical methods

Compliance & Quality Assurance

The AELAB TDD-3M Tabletop Platelet Centrifuge is engineered for consistent micro-plate centrifugation with measurable speed and timer control supporting repeatable laboratory protocols. The TDD-3M supports quality assurance procedures through defined program modes and controlled acceleration/deceleration timing, contributing to standardized operation under GLP-style laboratory documentation practices. Calibration, certification scope, and regulatory compliance documentation should be confirmed according to local laboratory requirements.

For reliable PCR plate spin-down performance, compact bench integration, and fast droplet and condensation control, the AELAB TDD-3M micro plate centrifuge provides stable 96-well microplate handling with 500–3000 r/min speed control and 600 ×g maximum centrifugal force—engineered for advanced laboratory testing and diagnostic workflows.
