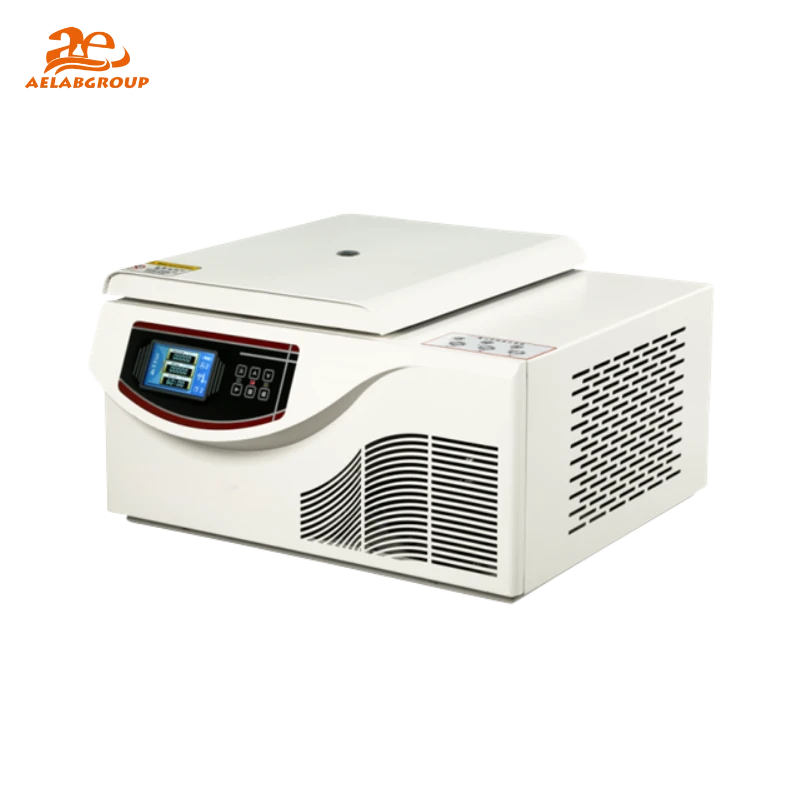

The AELAB TD4-CXC / iTD4-CXC benchtop low speed refrigerated centrifuge performs precise centrifugal separation for temperature-sensitive laboratory samples. Designed for professional laboratories, this refrigerated centrifuge integrates frequency-conversion motor control and CFC compressor cooling to ensure stable rotational speed and reliable temperature regulation.
The AELAB TD4-CXC series refrigerated centrifuge supports routine and specialized centrifugation procedures in clinical diagnostics, biotechnology, and industrial laboratories, delivering reproducible separation results with comprehensive safety protection.
The AELAB TD4-CXC / iTD4-CXC centrifuge features a benchtop configuration with an integrated refrigeration system and sealed chamber design. A frequency-conversion, maintenance-free motor eliminates carbon dust pollution, while the reinforced housing and safety interlock lid system ensure operational security during high-load centrifugation.
The AELAB TD4-CXC refrigerated centrifuge separates samples by centrifugal force generated through controlled rotor acceleration. The microprocessor regulates rotational speed, temperature, and time parameters, while the refrigeration system stabilizes chamber temperature to protect heat-sensitive biological and chemical samples.
The iTD4-CXC touch display model supports enhanced user interaction with programmable operation, time and date display, and energy-saving screen-off mode. Both models support program storage and rapid recall for standardized laboratory protocols.
| Model | TD4-CXC | iTD4-CXC |
| Control Interface | LCD Keypad | Touch Screen |
| Stored Programs | 10 Programs | 99 Programs |
| Temperature Control | –20 °C to +40 °C | |
The AELAB TD4-CXC / iTD4-CXC refrigerated centrifuge is used for blood separation, serum and plasma preparation, clinical diagnostics, biochemical analysis, pharmaceutical quality control, environmental testing, and industrial laboratory workflows requiring controlled low-speed refrigerated centrifugation.
The AELAB TD4-CXC series centrifuge is manufactured under controlled quality systems and supports laboratory compliance requirements. Integrated safety systems, stable temperature regulation, and reproducible speed control support ISO and GLP-aligned laboratory operations.
For laboratories requiring reliable refrigerated separation, the AELAB TD4-CXC / iTD4-CXC benchtop low speed refrigerated centrifuge delivers controlled performance, safety protection, and operational stability.
Specifications :
| Model | TD4-CXC (LCD) | iTD4-CXC (Touch Display) |
|---|---|---|
| Max Speed / RCF | 5500 r/min / 5220 × g | 5500 r/min / 5220 × g |
| Speed Accuracy | ±10 r/min | |
| Timer Range | 0~99 min | |
| Temperature Range | –20 °C to +40 °C | |
| Display | LCD Display | Touch Display |
| Maximum Capacity | 4 × 250 ml | |
| Noise | ≤60 dB(A) | |
| Power Supply | AC220 V & 110 V, 50 Hz, 18 A | |
| Weight | 80 kg | |
| Dimension | 620 × 690 × 415 mm | |
| Model | TD4-CXC (LCD) | iTD4-CXC (Touch Display) |
|---|---|---|
| Max Speed / RCF | 5500 r/min / 5220 × g | 5500 r/min / 5220 × g |
| Speed Accuracy | ±10 r/min | |
| Timer Range | 0~99 min | |
| Temperature Range | –20 °C to +40 °C | |
| Display | LCD Display | Touch Display |
| Maximum Capacity | 4 × 250 ml | |
| Noise | ≤60 dB(A) | |
| Power Supply | AC220 V & 110 V, 50 Hz, 18 A | |
| Weight | 80 kg | |
| Dimension | 620 × 690 × 415 mm | |
