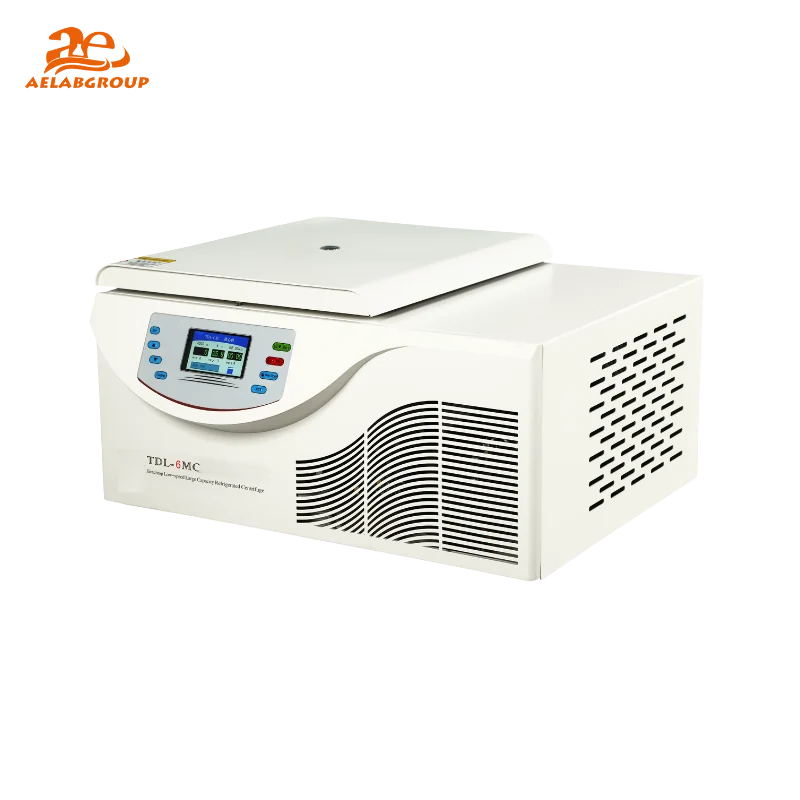

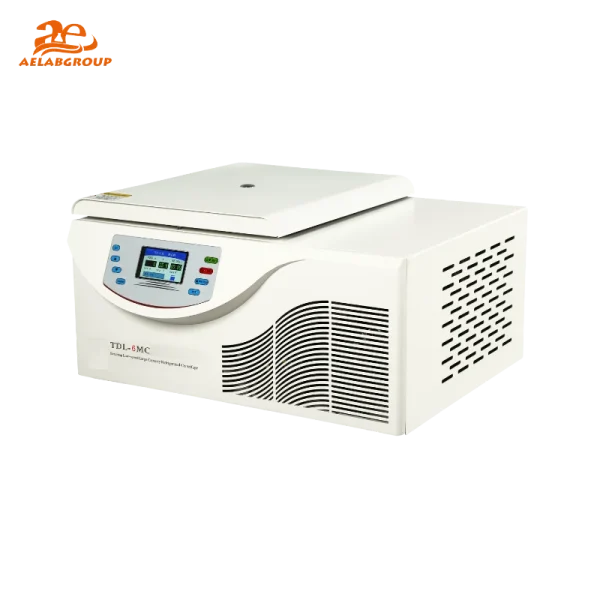

The AELAB TDL-6MC and iTDL-6MC benchtop low speed refrigerated centrifuges are engineered for precise centrifugal separation in laboratory testing environments. Utilizing microprocessor control and frequency-conversion speed regulation, these centrifuges deliver stable rotational accuracy while maintaining controlled refrigeration for temperature-sensitive samples.
The AELAB TDL-6MC and iTDL-6MC refrigerated centrifuge series integrates a maintenance-free frequency-inverter motor and CFC-free compressor system. Safety interlock protection, imbalance detection, and programmable memory ensure consistent operation, operator safety, and reproducible analytical results.

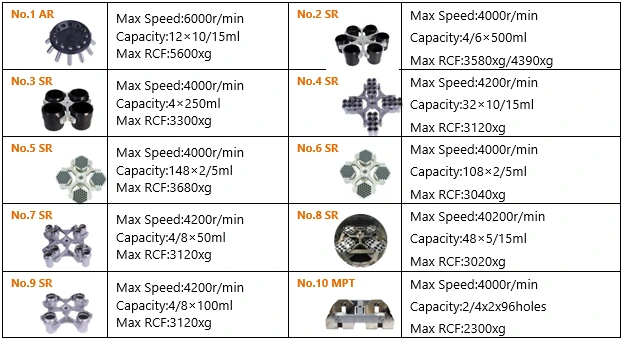

The AELAB TDL-6MC features a reinforced benchtop chassis with integrated refrigeration airflow channels. The centrifuge chamber supports automatic rotor identification on the iTDL-6MC model, preventing overspeed conditions. A frequency-inverter motor eliminates carbon dust generation, supporting clean laboratory environments.
The AELAB TDL-6MC refrigerated centrifuge separates samples by applying controlled centrifugal force generated through variable-speed rotation. Microprocessor logic regulates speed, time, and temperature parameters, while the refrigeration system stabilizes chamber temperature from -20 °C to +40 °C during centrifugation cycles.
The AELAB iTDL-6MC refrigerated centrifuge is equipped with a USB interface for PC connectivity, enabling data transfer and operational monitoring. Touch LCD control allows intuitive parameter input and compressor regulation for laboratory workflow integration.
| Model | Display Type | Max Speed (r/min) | Max RCF (×g) | Weight (kg) |
|---|---|---|---|---|
| TDL-6MC | LCD | 6000 | 5600 | 150 |
| iTDL-6MC | Touch LCD | 6000 | 5600 | 150 |
The AELAB TDL-6MC and iTDL-6MC benchtop low speed refrigerated centrifuges are used for clinical diagnostics, biochemical analysis, pharmaceutical testing, food quality control, environmental sample preparation, and industrial laboratory separation processes requiring controlled temperature centrifugation.
The AELAB TDL-6MC centrifuge series is manufactured under controlled quality systems and supports laboratory compliance workflows. Integrated safety interlocks, programmable control, and stable speed regulation support ISO-style laboratory practices and reproducible centrifugation performance.
Specifications :
| Parameter | TDL-6MC | iTDL-6MC |
|---|---|---|
| Display | LCD | Touch LCD |
| Maximum Speed (r/min) | 6000 | |
| Maximum RCF (×g) | 5600 | |
| Speed Accuracy | ±10 r/min | |
| Timer Range | 0~99 min | |
| Temperature Range | -20 °C to +40 °C | |
| Maximum Capacity | 6 × 500 ml | |
| Noise Level | ≤60 dB(A) | |
| Power Supply | AC220 V ±10%, 50 Hz, 18 A | |
| Dimensions (mm) | 656 × 835 × 465 | |
| Weight (kg) | 150 | |
| Parameter | TDL-6MC | iTDL-6MC |
|---|---|---|
| Display | LCD | Touch LCD |
| Maximum Speed (r/min) | 6000 | |
| Maximum RCF (×g) | 5600 | |
| Speed Accuracy | ±10 r/min | |
| Timer Range | 0~99 min | |
| Temperature Range | -20 °C to +40 °C | |
| Maximum Capacity | 6 × 500 ml | |
| Noise Level | ≤60 dB(A) | |
| Power Supply | AC220 V ±10%, 50 Hz, 18 A | |
| Dimensions (mm) | 656 × 835 × 465 | |
| Weight (kg) | 150 | |
