The AELAB Thermo Shaker AE-TSI100 Series is designed for advanced laboratories requiring precise heating, cooling, and mixing in a single unit. With excellent temperature accuracy, uniformity, and programmable functions, it is ideal for gene synthesis, protein denaturation, enzymatic reactions, and more.
The Thermo Shaker series allow for precise and efficient heating and mixing, as well as excellent temperature accuracy and uniformity, offering a wide range of applications, such as gene synthesis, gene purification, gene and protein denaturation, enzymatic reaction, bacterial growth, etc.
Features:

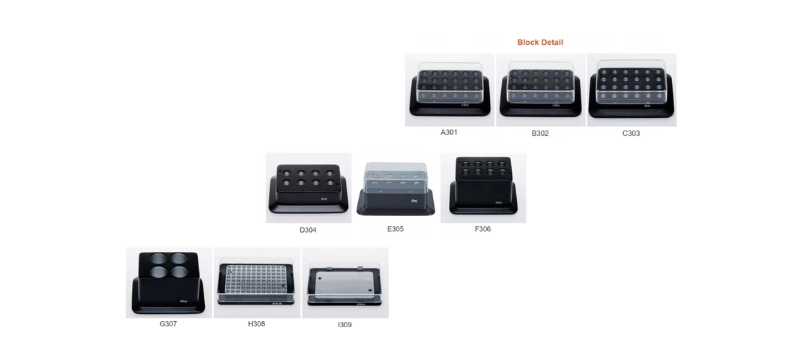

| Order No. | Speed | Capacity | Diameter x Depth | Order No. | Speed | Capacity | Diameter x Depth |
| A301 | 1500rpm | 24×0.5mL | 8.1x26mm | F306 | 800rpm | 8x15mL | 16.9x80mm |
| B302 | 1500rpm | 24×1.5mL | 10.9×30.8mm | G307 | 600rpm | 4x50mL | 29.6x80mm |
| C303 | 1500rpm | 24x2mL | 10.9×30.8mm | H308 | 1500rpm | 0.2mLx96 PCR plate | |
| D304 | 1500rpm | 8x5mL(round bottom) | 13.6x42mm | 1309 | 1500rpm | microplate | |
| E305 | 1400rpm | 8x5mL(cone bottom) | 17×51.5mm |

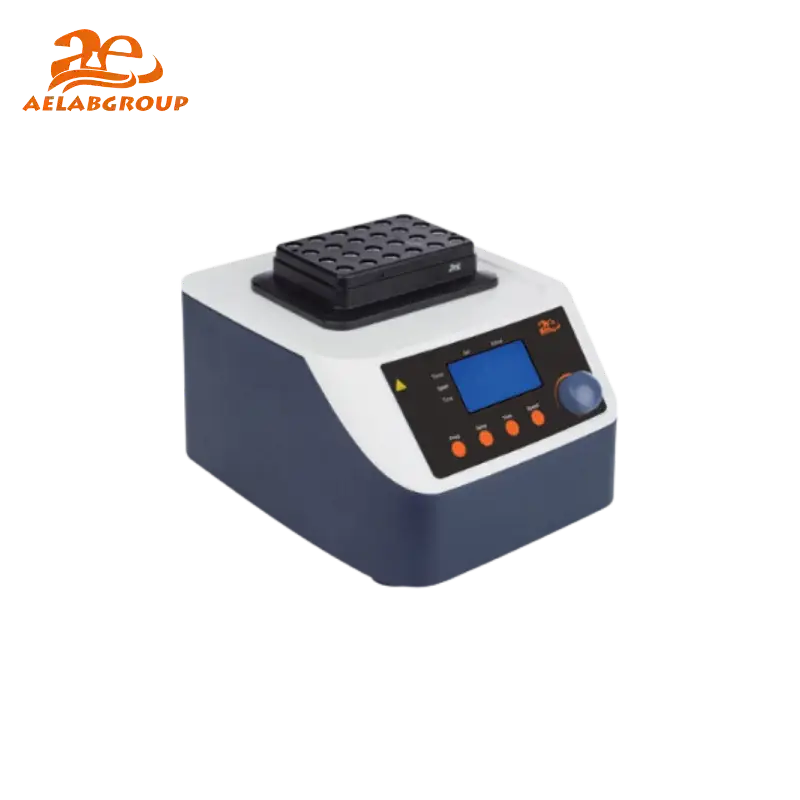

The AELAB Thermo Shaker combines controlled heating, cooling, and orbital mixing in a single platform. Interchangeable aluminum blocks transfer heat efficiently, while the 3 mm orbital motion ensures uniform mixing. The TFT screen allows users to easily set temperature, speed, and time, while the programmable memory (up to 9 methods) simplifies routine protocols.
3-in-1 Functionality: Heating, cooling, and mixing in one compact device.
Precision Control: ±0.5 °C accuracy and uniformity for reliable results.
User-Friendly: Clear TFT display and intuitive programming.
Versatility: Wide range of interchangeable blocks for tubes, vials, PCR plates, and microplates.
Time-Saving: Fast heating/cooling rates reduce waiting time.
Safety First: Automatic overheating protection ensures stable operation.
AE-TSI100: Best for molecular biology labs needing both heating & cooling with mixing.
AE-TSI200: Suitable for labs requiring heating & mixing without cooling.
AE-TSI300: Advanced option for research centers needing extended cooling (down to RT-25 °C).
AE-TSI400: Cost-effective choice for heating-only applications in teaching labs.
Molecular biology (gene synthesis, purification, PCR prep)
Protein and enzyme denaturation
Bacterial growth studies
Biochemistry and enzymatic reactions
Food and pharmaceutical labs
Research institutes and QC laboratories
Specifications :
| Model | AE-TSI100 | AE-TSI200 | AE-TSI300 | AE-TSI400 |
| Functions | Heating, Cooling & Mixing | Heating & Mixing | Heating & Cooling | Heating |
| Temperature range | Heating: RT ~100°C
Cooling: RT~ below RT 15°C |
Heating: RT~ 100°C | Heating: RT ~110°C
Cooling: RT~ below RT 25°C |
Heating:
RT+5°C ~ 100°C |
| Temperature setting range | 0.1-100℃ | 15-100℃ | -5-110℃ | 15-100℃ |
| Temperature control accuracy | ± 0.5°C | |||
| Temperature uniformity | Max.± 0.5°C | |||
| Max. heating rate | 5.5°C/min | |||
| Max. cooling rate | 5°C /min(100°C-RT.)
0.5°C/min(below RT) |
--- | 2.5°C /min(100°C-RT.)
0.5°C/min(below RT) |
--- |
| Mixing frequency | 200-1500rpm | --- | ||
| Mixing orbit | 3mm | |||
| Time Setting Range | 0~99h30min | |||
| Program | 9 | |||
| Screen | TFT | |||
| Overheating protection | 150°C | |||
| Adapter block material | aluminum | |||
| Voltage, Frequency | DC12V,100–240V,50/60Hz | |||
| Power | 200W | |||
| Dimension [D×W×H] | 200×235×120mm ( without the heating block ) | |||
| Weight | 7.3kg | |||
| Model | AE-TSI100 | AE-TSI200 | AE-TSI300 | AE-TSI400 |
| Functions | Heating, Cooling & Mixing | Heating & Mixing | Heating & Cooling | Heating |
| Temperature range | Heating: RT ~100°C
Cooling: RT~ below RT 15°C |
Heating: RT~ 100°C | Heating: RT ~110°C
Cooling: RT~ below RT 25°C |
Heating:
RT+5°C ~ 100°C |
| Temperature setting range | 0.1-100℃ | 15-100℃ | -5-110℃ | 15-100℃ |
| Temperature control accuracy | ± 0.5°C | |||
| Temperature uniformity | Max.± 0.5°C | |||
| Max. heating rate | 5.5°C/min | |||
| Max. cooling rate | 5°C /min(100°C-RT.)
0.5°C/min(below RT) |
--- | 2.5°C /min(100°C-RT.)
0.5°C/min(below RT) |
--- |
| Mixing frequency | 200-1500rpm | --- | ||
| Mixing orbit | 3mm | |||
| Time Setting Range | 0~99h30min | |||
| Program | 9 | |||
| Screen | TFT | |||
| Overheating protection | 150°C | |||
| Adapter block material | aluminum | |||
| Voltage, Frequency | DC12V,100–240V,50/60Hz | |||
| Power | 200W | |||
| Dimension [D×W×H] | 200×235×120mm ( without the heating block ) | |||
| Weight | 7.3kg | |||
