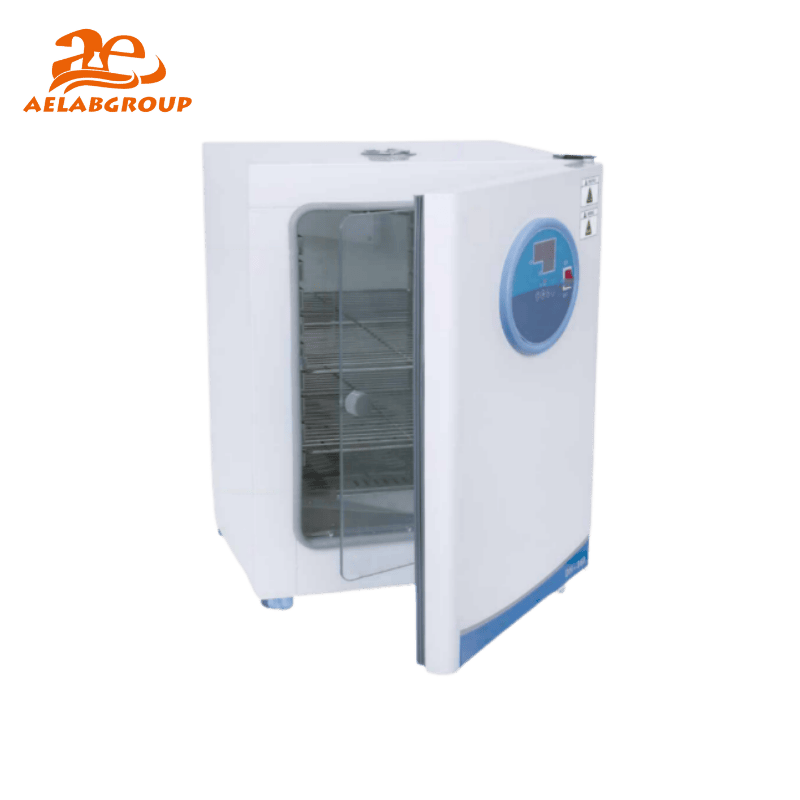

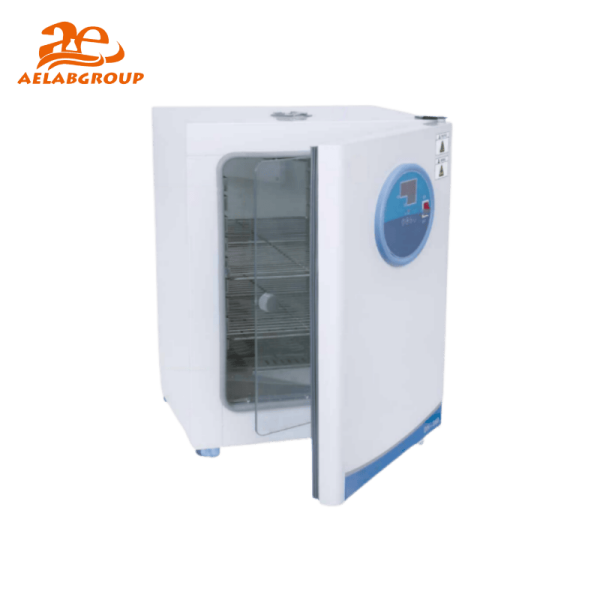

The AELAB DH Series Thermostatic Incubator provides precise temperature control and reliable thermal stability for laboratory, biological, and industrial applications. Constructed with high-quality materials and intelligent microprocessor-based control, it ensures consistent environmental conditions for culture growth, testing, and sample preservation.
The AELAB DH Series features a cold-rolled steel exterior with electrostatic spraying and a high-strength galvanized or mirror stainless-steel inner chamber. Its double-layer tempered glass door provides clear observation without affecting the internal temperature. Adjustable shelves and silicon magnetic sealing ensure flexible, airtight performance and easy access for sample handling.
The incubator utilizes natural air convection and a PT100 temperature sensor for accurate thermal feedback. The intelligent LED microcomputer controller maintains temperature within ±0.5°C, allowing real-time monitoring, alarm protection, and auto power-off functions. The system achieves stable heat distribution ideal for culture incubation and general laboratory testing.
Equipped with an LED microcomputer temperature controller, the DH Series supports external connectivity options such as independent alarm modules, printers, and computer interfaces for GLP-compliant data recording and traceability.
| Model | Capacity (L) | Temperature Range (°C) | Inner Chamber | Power (kW) |
|---|---|---|---|---|
| DH-360A / DH-360AB | 54 | RT+5~65 | Galvanized / Stainless Steel | 0.3 |
| DH-420A / DH-420AB | 88 | RT+5~65 | Galvanized / Stainless Steel | 0.4 |
| DH-500A / DH-500AB | 150 | RT+5~65 | Galvanized / Stainless Steel | 0.4 |
| DH-600A / DH-600AB | 252 | RT+5~65 | Galvanized / Stainless Steel | 0.6 |
The AELAB DH Series is designed for microbiological culture, biochemical research, material aging tests, and general laboratory incubation. It is widely used in pharmaceutical, food, environmental, and industrial quality control laboratories where precise and stable temperature regulation is required.
The DH Series complies with international laboratory standards including ISO and CE certification. All units undergo strict calibration and performance validation under AELAB’s GLP-quality assurance system, ensuring long-term operational reliability and traceable data integrity.
Specifications :
| Model | DH-360A / DH-360AB | DH-420A / DH-420AB | DH-500A / DH-500AB | DH-600A / DH-600AB |
|---|---|---|---|---|
| Cycle Mode | Natural convection | |||
| Voltage | 110/220V | |||
| Temperature Range (°C) | RT+5~65°C | |||
| Temperature Accuracy (°C) | 0.1°C | |||
| Temperature Fluctuation (°C) | ±0.5°C | |||
| Sensor | PT100 | |||
| Power (kW) | 0.3 | 0.4 | 0.4 | 0.6 |
| Working Room Size (W×D×H mm) | 360×360×420 | 420×420×500 | 500×500×600 | 600×600×700 |
| Overall Dimensions (W×D×H mm) | 490×440×680 | 550×550×755 | 630×630×850 | 730×720×970 |
| Package Size (W×D×H mm) | 585×580×745 | 640×630×830 | 720×700×950 | 825×810×1030 |
| Volume (L) | 54 | 88 | 150 | 252 |
| Shelf Load (kg) | 20 | 20 | 14 | 16 |
| Max Shelf Number (Standard 2 pcs) | 8 | 10 | 12 | 14 |
| Minimum Shelf Spacing (mm) | 25 | 30 | 30 | 30 |
| Net / Gross Weight (kg) | 30 / 32.5 | 33 / 35 | 47 / 58 | 65 / 78 |
| Inner Chamber | A model: High strength rolled galvanized steel inner chamber AB model: Mirror stainless steel inner chamber |
|||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||
| Insulation Layer | High quality rock wool board | |||
| Heater | Ferrochrome wire | |||
| Exhaust Hole Diameter | 36 mm | |||
| Safety Device | Limit alarm, automatic power off | |||
| Optional Accessories | Independent alarm, printer, computer interface | |||
| Model | DH-360A / DH-360AB | DH-420A / DH-420AB | DH-500A / DH-500AB | DH-600A / DH-600AB |
|---|---|---|---|---|
| Cycle Mode | Natural convection | |||
| Voltage | 110/220V | |||
| Temperature Range (°C) | RT+5~65°C | |||
| Temperature Accuracy (°C) | 0.1°C | |||
| Temperature Fluctuation (°C) | ±0.5°C | |||
| Sensor | PT100 | |||
| Power (kW) | 0.3 | 0.4 | 0.4 | 0.6 |
| Working Room Size (W×D×H mm) | 360×360×420 | 420×420×500 | 500×500×600 | 600×600×700 |
| Overall Dimensions (W×D×H mm) | 490×440×680 | 550×550×755 | 630×630×850 | 730×720×970 |
| Package Size (W×D×H mm) | 585×580×745 | 640×630×830 | 720×700×950 | 825×810×1030 |
| Volume (L) | 54 | 88 | 150 | 252 |
| Shelf Load (kg) | 20 | 20 | 14 | 16 |
| Max Shelf Number (Standard 2 pcs) | 8 | 10 | 12 | 14 |
| Minimum Shelf Spacing (mm) | 25 | 30 | 30 | 30 |
| Net / Gross Weight (kg) | 30 / 32.5 | 33 / 35 | 47 / 58 | 65 / 78 |
| Inner Chamber | A model: High strength rolled galvanized steel inner chamber AB model: Mirror stainless steel inner chamber |
|||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||
| Insulation Layer | High quality rock wool board | |||
| Heater | Ferrochrome wire | |||
| Exhaust Hole Diameter | 36 mm | |||
| Safety Device | Limit alarm, automatic power off | |||
| Optional Accessories | Independent alarm, printer, computer interface | |||
