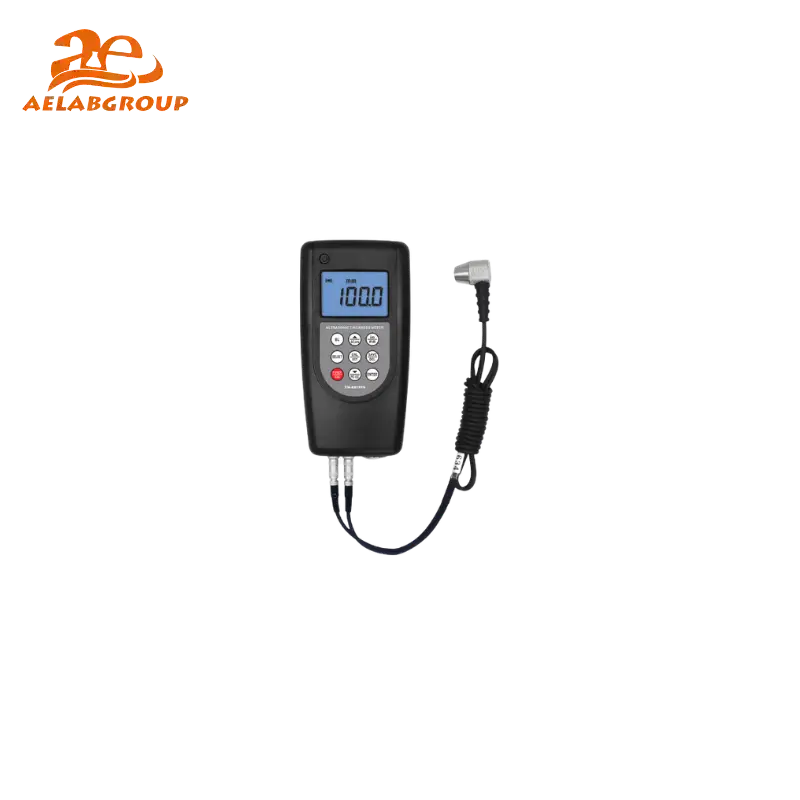

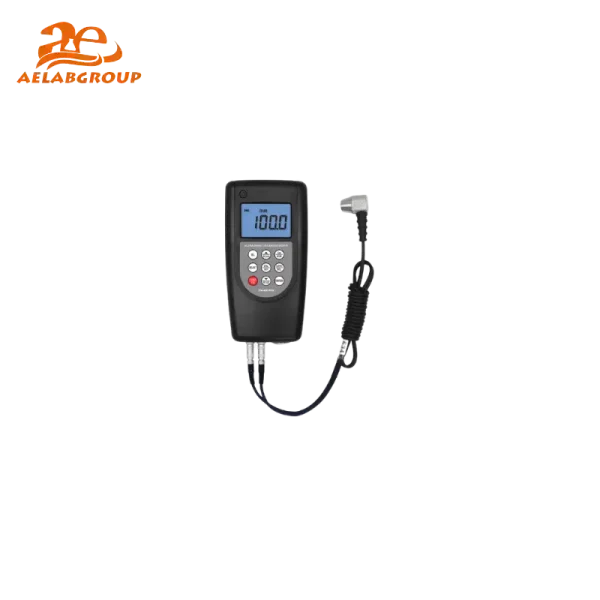

The TM-8819-T6 is designed for measuring the thickness and corrosion of pressure vessels, chemical equipment, boilers, and oil storage tanks, commonly used in industries like petroleum, shipbuilding, and power stations. It offers two measurement modes: Pulse-Echo for flaw and pit detection, and Echo-Echo for accurate measurements through paint or coatings.
Featuring advanced microprocessor technology for high performance and low power consumption, the TM-8819-T6 includes automatic memory for material codes and sound velocity values for ease of use. It also supports USB and RS-232 data output for convenient connection to a PC.
Features
Specifications :
| Unit System | Metric system or British system (optional) |
| Display | LCD with backlight |
| Range | Pulse-Echo mode: (0.65~600)mm (in Steel) |
| Echo-Echo mode: (3~60)mm | |
| Resolution | 0.1mm / 0.01mm / 0.001inch |
| Accuracy | ±(0.5%n + 0.05mm), depends on materials and conditions |
| Measurement Period | 4 times per second for single point mode and 10 times per second for scan mode |
| Sound Velocity | 1000m/s~9999 m/s |
| Memory for up to 20 files(99 values for each file)of stored values | |
| Working Mode | There are two working modes of thickness measurement: single mode and scan mode |
| Operating Conditions | Temperature:0ºC~40ºC Humidity:<85%RH |
| Power Supply | 4x1.5V AAA(UM-4)Battery |
| Dimensions | 142mmx72mmx34mm |
| Weight | 175g(Not Including Batteries) |
| Standard Accessories | Main Unit |
| Standard Probe | |
| Coupling Agent | |
| Carrying Case(B04) | |
| Operation Manual | |
| Optional Accessories | Other Special-purpose Probe |
| RS-232C Data Cable with Software | |
| Bluetooth Data Adapter with Software | |
| Unit System | Metric system or British system (optional) |
| Display | LCD with backlight |
| Range | Pulse-Echo mode: (0.65~600)mm (in Steel) |
| Echo-Echo mode: (3~60)mm | |
| Resolution | 0.1mm / 0.01mm / 0.001inch |
| Accuracy | ±(0.5%n + 0.05mm), depends on materials and conditions |
| Measurement Period | 4 times per second for single point mode and 10 times per second for scan mode |
| Sound Velocity | 1000m/s~9999 m/s |
| Memory for up to 20 files(99 values for each file)of stored values | |
| Working Mode | There are two working modes of thickness measurement: single mode and scan mode |
| Operating Conditions | Temperature:0ºC~40ºC Humidity:<85%RH |
| Power Supply | 4x1.5V AAA(UM-4)Battery |
| Dimensions | 142mmx72mmx34mm |
| Weight | 175g(Not Including Batteries) |
| Standard Accessories | Main Unit |
| Standard Probe | |
| Coupling Agent | |
| Carrying Case(B04) | |
| Operation Manual | |
| Optional Accessories | Other Special-purpose Probe |
| RS-232C Data Cable with Software | |
| Bluetooth Data Adapter with Software | |
