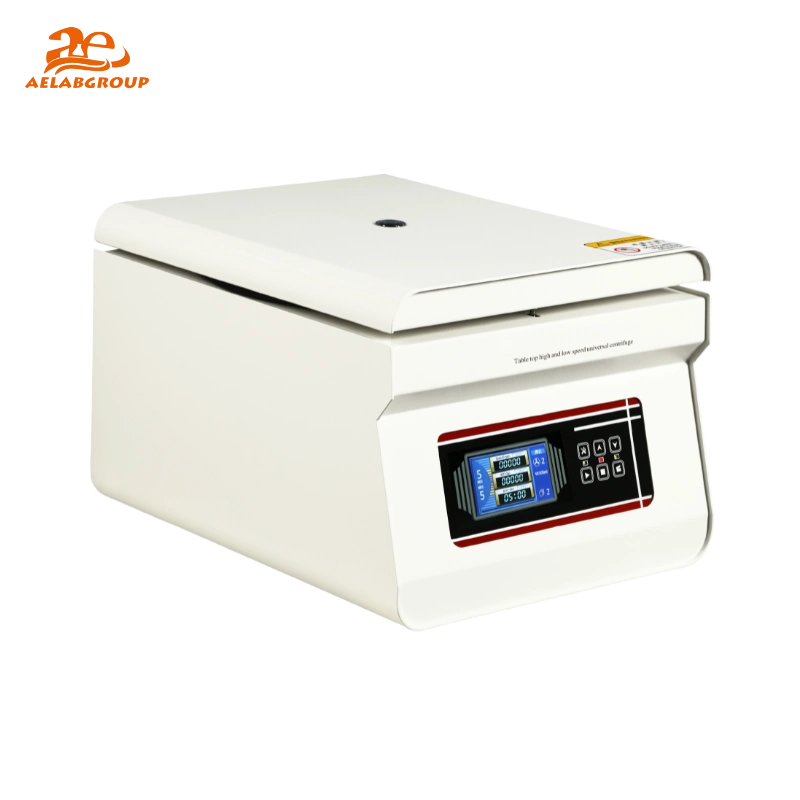

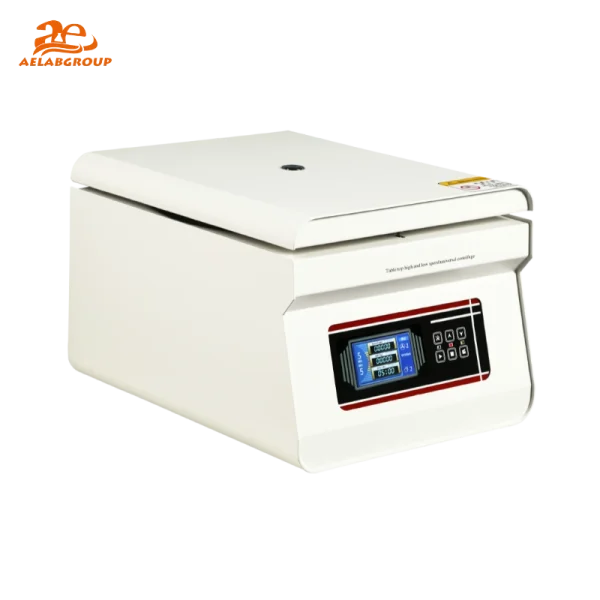

AELAB TGD-20 / iTGD-20 Benchtop High & Low Speed Universal Centrifuge for PCR, Clinical, and Bio-Technology Separation

The AELAB TGD-20 / iTGD-20 benchtop high & low speed universal centrifuge is a multifunctional laboratory centrifuge designed to operate with both high speed angle rotors and low speed swing rotors. The AELAB TGD-20 / iTGD-20 universal centrifuge meets the separation requirements of bio-technology, PCR life science, and clinical laboratory testing while supporting routine sample analysis in medical, hospital, and institutional laboratories.

With a wide choice of rotor heads and adapters, the AELAB TGD-20 / iTGD-20 universal centrifuge delivers flexible capacity options from microtubes to larger clinical tubes. Microprocessor-based regulation, safety interlock protection, and stable frequency-conversion motor control ensure reliable operation during high-speed centrifugation and low-speed swing separation workflows.

⚙️ Design & Construction

The AELAB TGD-20 / iTGD-20 benchtop universal centrifuge uses a compact benchtop chassis optimized for laboratory safety and operational stability. The instrument incorporates a sealed lid structure with a safety interlock system to prevent opening during operation. A frequency-conversion AC motor drives controlled acceleration and stable speed holding, supporting both high speed angle rotor centrifugation and low speed swing rotor separation across clinical and analytical applications.

🔬 Working Principle / Testing Method

The AELAB TGD-20 / iTGD-20 universal centrifuge separates samples by applying controlled centrifugal force (RCF) generated by high speed rotation. Microprocessor control regulates motor frequency and speed response to deliver accurate rotational control and repeatable separation performance. The system supports programmable runtime control through the integrated LCD interface, enabling standardized protocols for PCR sample preparation, serum/plasma separation, and routine diagnostic centrifugation.

💡 Key Advantages

• The AELAB TGD-20 / iTGD-20 universal centrifuge provides microprocessor control with speed regulation by frequency-conversion motor control.
• Supports both high speed angle rotor and low speed swing rotor configurations for universal laboratory separation workflows.
• Safety interlock system prevents opening of the centrifuge lid during active centrifugation cycles.
• 10/99 programs can be stored for rapid recall of previously used separation parameters.
• Integrated protection includes imbalance sensing, overspeed control, and overtemperature cut-off functions.
• LCD / Touch LCD interface enables easy operation and parameter monitoring during clinical and analytical centrifugation.
• Emergency lid lock release supports access in the event of power interruption.

🔗 Connectivity & Integration

• The AELAB iTGD-20 universal centrifuge is equipped with a USB cord interface for connection with PC systems.
• Optional operational functions include screen display of date and time and configurable energy saving modes.
• Automated lid operation is supported on iTGD-20 with electric control for both opening and closing (no manual closing required).

🧠 Model Insight

🧪 Testing Applications

The AELAB TGD-20 / iTGD-20 benchtop high & low speed universal centrifuge supports sample separation in bio-technology laboratories, PCR life science testing, and clinical diagnostic workflows. With high speed angle rotor capability up to 22000 r/min and low speed swing rotor operation for larger tube configurations, the instrument supports applications including nucleic acid preparation, clinical serum/plasma processing, biochemical analysis preparation, food and environmental sample clarification, and routine quality control centrifugation in hospital and institutional laboratories.

Compliance & Quality Assurance

The AELAB TGD-20 / iTGD-20 universal centrifuge is engineered for controlled laboratory operation with microprocessor monitoring and multi-layer protection systems including imbalance detection, overspeed control, and overtemperature cut-off. Safety interlock lid protection supports safe use in clinical and diagnostic environments. For quality assurance workflows, standardized timing and speed accuracy support repeatable separation protocols and instrument calibration traceability aligned with ISO/CE/GLP-style laboratory practice expectations.

The AELAB TGD-20 / iTGD-20 benchtop high & low speed universal centrifuge delivers stable high-speed microcentrifugation and low-speed swing separation with universal rotor flexibility, making it suitable for PCR laboratories, clinical diagnostics, and industrial routine testing requiring reproducible centrifugal force up to 34700×g.
