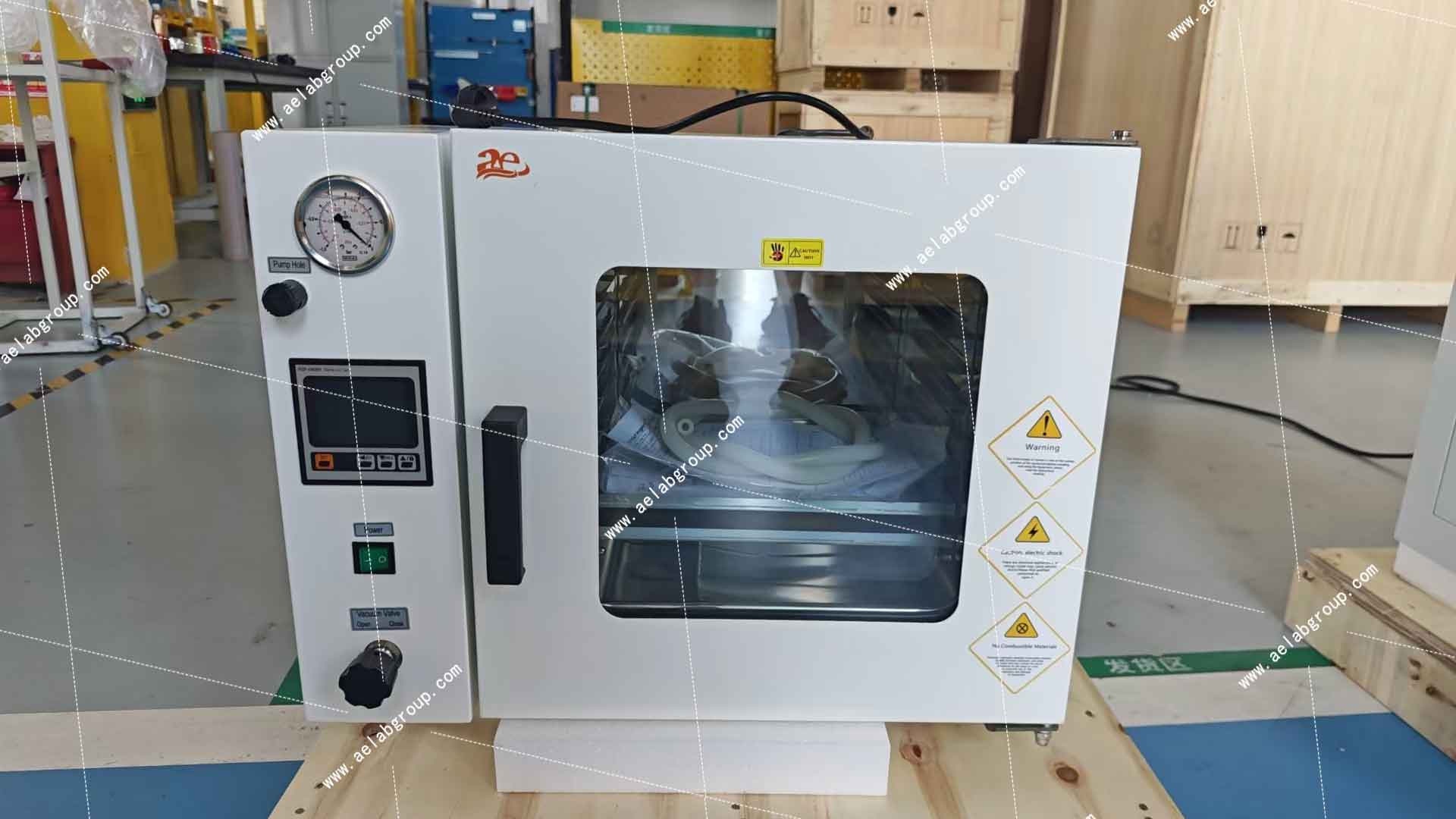

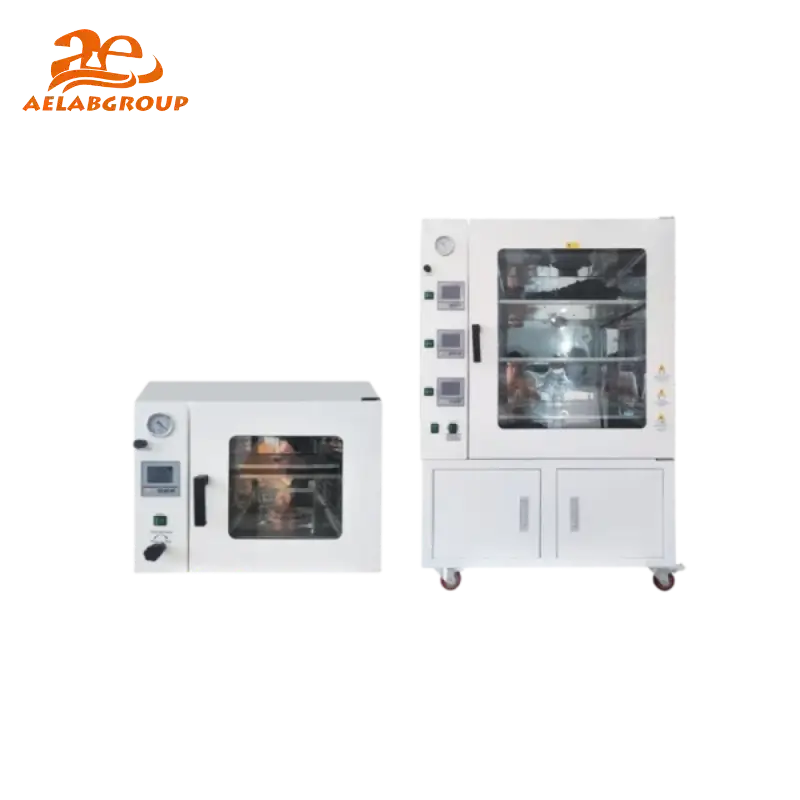

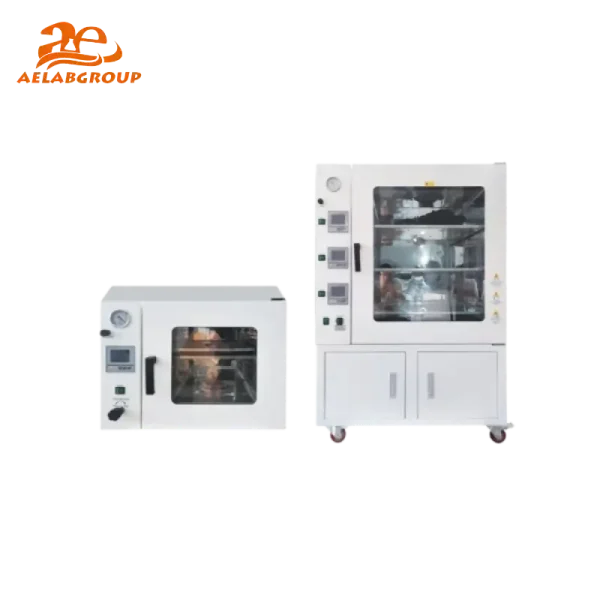

AELAB Vacuum Oven AE-DF6020 Series – Precision Drying for Labs

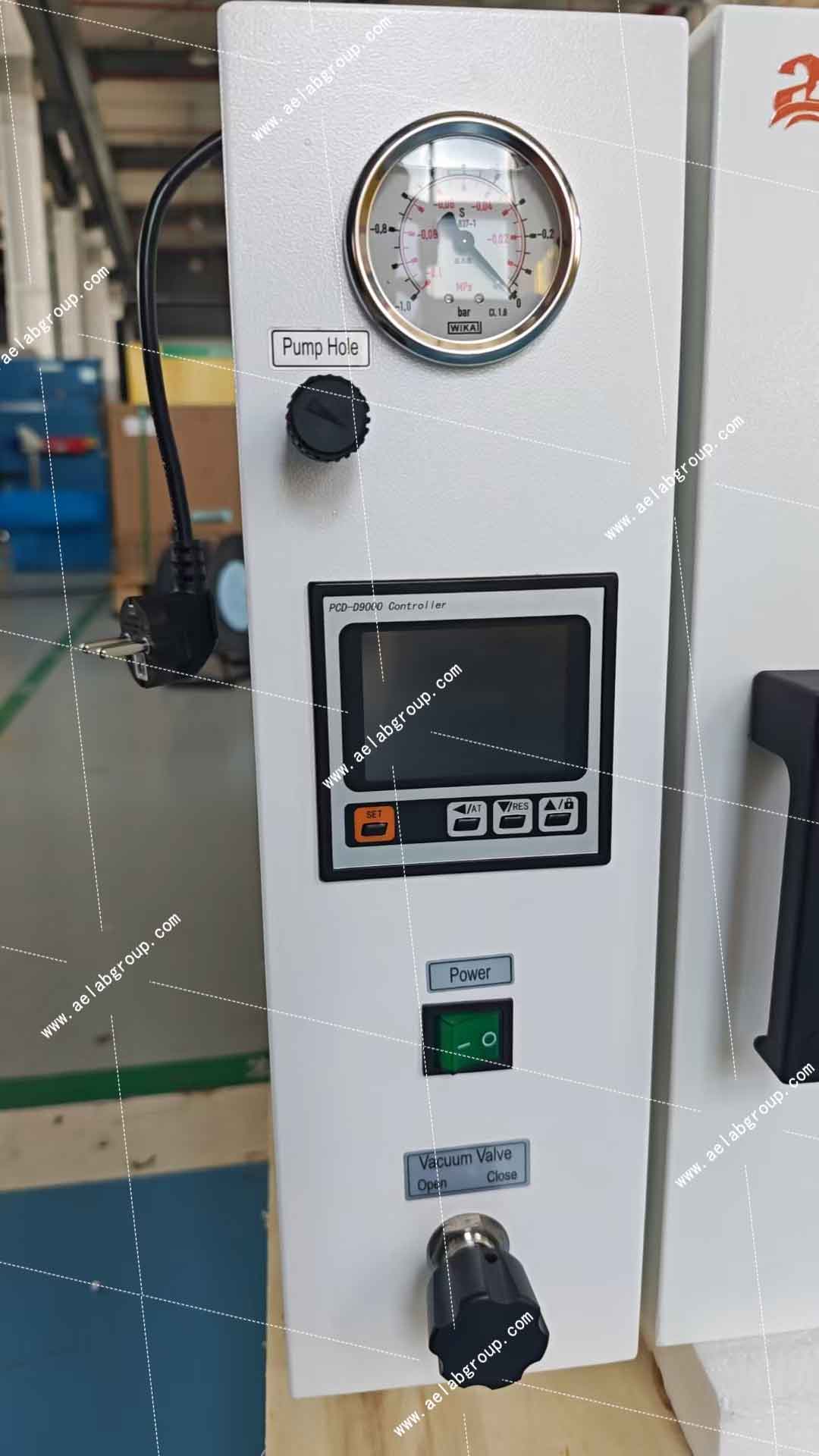

The Vacuum Oven (Analogue Display) is a specialized device for drying and curing materials under reduced pressure. It features an analogue display for monitoring and adjusting temperature and vacuum levels.

Features:

• Fahrenheit/Celsius free conversion, to meet different customer needs.(DF-6050 has this function).
• Hyperbolic temperature calibration system, more accurate temperature measurement.
• Standard with large LCD color screen, multiple groups of data a screen display, menu type operation interface, easy to understand, easy to operate.
• Adopt overtemperature deviation protection, microprocessor PID fuzzy processing controller, quickly reach the preset temperature stable operation.

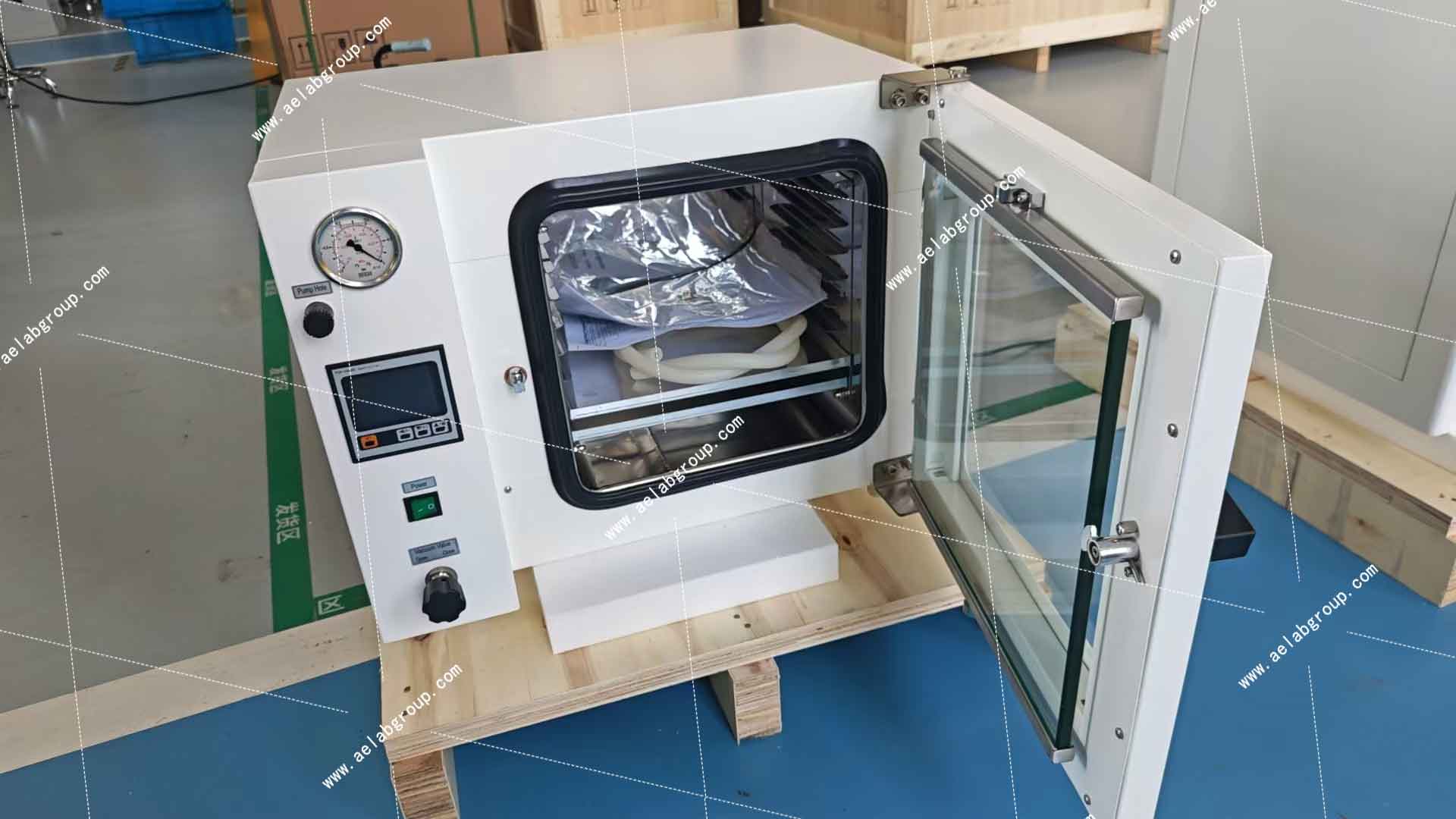

• 304 mirror stainless steel inner tank, four corners semi-arc design, easy to clean.
• The sealing design of the new synthetic silicon sealing strip effectively prevents heat loss, and can prolong the energy saving of each component on the basis of 30% Service life.
• Aluminum separator made of special stamping process, with high temperature, no oxidation, fast thermal conductivity.Minimize heat loss.
• Double bulletproof glass observation window, observe objects in the working room, at a glance.
• The tightness of the door closure is completely adjusted by the user. The silicone rubber door sealing ring formed as a whole ensures the high vacuum degree in the box.
• Imported vacuum valve, avoid the traditional vacuum valve long time use caused by the drop problem.

✅ 🔬 How It Works?

The AE-DF6020 Series Vacuum Oven operates by reducing atmospheric pressure within a sealed chamber, lowering the boiling point of moisture and solvents. This enables precise, low-temperature drying that prevents oxidation and material degradation. A PID fuzzy logic controller ensures rapid and stable temperature attainment. The analogue interface allows real-time adjustment of both temperature and vacuum, with safety mechanisms like over-temperature protection and vacuum sealing integrity to ensure consistent results.

✅ 💡 Advantages

• 🌡 High-Accuracy Calibration: Hyperbolic temperature calibration ensures dependable measurements.

• 🧼 Easy Maintenance: Rounded inner corners and stainless-steel chamber for hassle-free cleaning.

• 🔒 Secure & Efficient Sealing: New-generation silicone ring minimizes heat loss, boosts energy savings.

• 🪟 Excellent Visibility: Observe samples through a double-layered, bulletproof glass window.

• 🔧 Customizable Shelving: Adjustable and model-specific independent heating shelves for optimized processing.

• 🧠 User-Friendly Interface: Intuitive analogue controls with Fahrenheit/Celsius toggle (DF-6050).

• 🔄 Durable Components: Imported vacuum valve resists pressure drop issues common in long-term use.

✅ 🔍 Recommended Models by Use Case

✅ 🧪 Ideal For

• Chemical synthesis drying

• Pharmaceutical sample curing

• Biological specimen dehydration

• Food safety testing labs

• Polymer material testing

• Academic and industrial R&D
