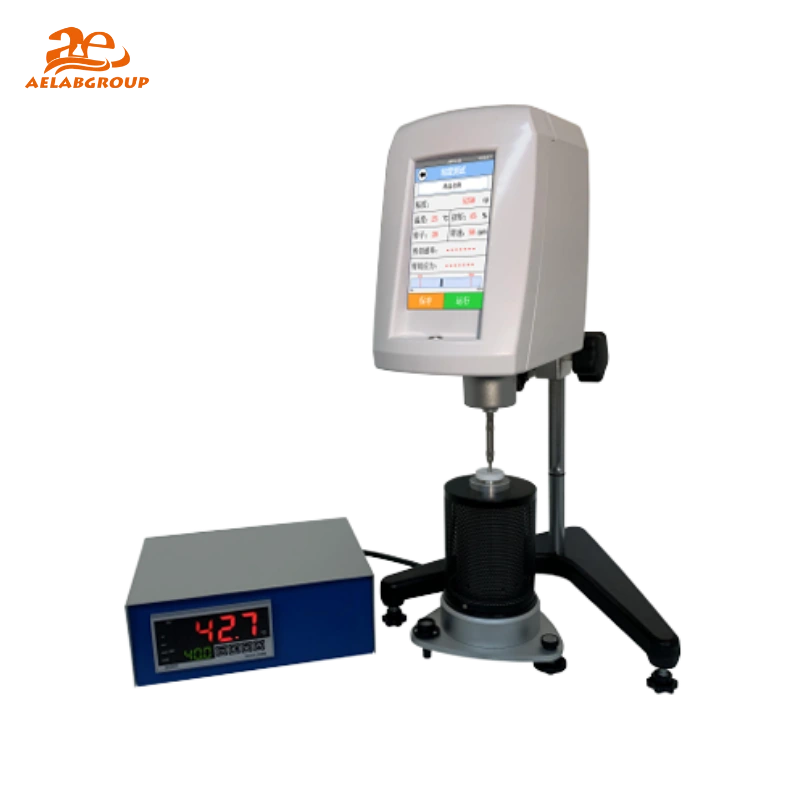

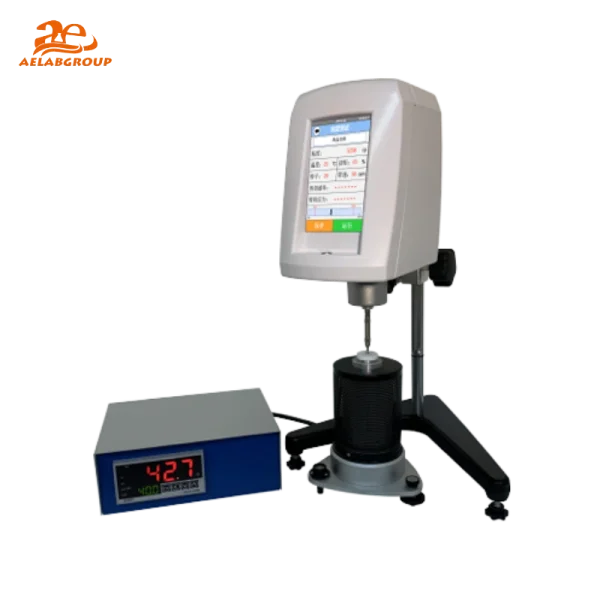

AELAB Touchscreen High-Temperature Brinell Rotational Viscometer – RVDV/HADV/HBDV Series

The AELAB Touchscreen High-Temperature Brinell Rotational Viscometer (RVDV-1T-H, HADV-1T-H, HBDV-1T-H, RVDV-2T-H, HADV-2T-H, HBDV-2T-H) performs precise viscosity analysis for high-temperature melts using a coaxial center structure and small sample adapter. Each measurement requires a very small sample size while temperature control stabilizes quickly and accurately, enabling reliable viscosity testing for hot melt adhesives, asphalt, plastics, and related high-viscosity materials.

Designed for laboratory, industrial, and material development environments, the AELAB Touchscreen High-Temperature Brinell Rotational Viscometer integrates ARM technology with a built-in Linux system for intuitive test procedure creation, rapid data analysis, and stable rotational measurement. The 5-inch color touch screen provides rich graphical display, including dynamic viscosity, kinematic viscosity (with density input), temperature, shear rate, shear stress, and real-time viscosity curves.

⚙️ Design & Construction

The AELAB Touchscreen High-Temperature Brinell Rotational Viscometer uses a coaxial center structure to stabilize rotor alignment under elevated temperature conditions. The instrument supports standardized rotors No.21, No.27, No.28, and No.29, with optional ultra-low viscosity adapter rotor No.0 for molten low-viscosity samples. The compact footprint and integrated control architecture improve measurement repeatability while maintaining stable operation under wide voltage power supply conditions.

🔬 Working Principle / Testing Method

The AELAB Touchscreen High-Temperature Brinell Rotational Viscometer measures viscosity by rotating a calibrated rotor at a defined speed and quantifying the resistance torque generated by the sample. Rotational speed is regulated steplessly across 0.3–100 r/min (1T Series) or 0.1–200 r/min (2T Series), while the system continuously calculates viscosity, shear rate, and shear stress. Kinematic viscosity can be displayed when the sample density is entered, supporting broader rheological interpretation for melt processing and high-temperature formulation control.

💡 Key Advantages

• ARM technology with built-in Linux system for stable, fast viscosity testing and automated data analysis

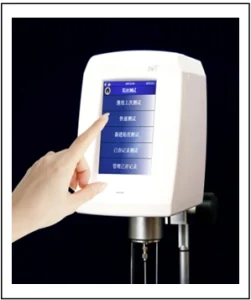

• 5-inch color touch screen provides rich graphical display of viscosity, temperature, shear rate, and shear stress
• High accuracy viscosity measurement with measurement error ±1% (Newtonian liquid) for QC-grade performance
• High repeatability ±0.5% (Newtonian liquid) supports long-term process monitoring and batch-to-batch comparison
• Stepless speed regulation with 998 (1T) or 2000 (2T) selectable speeds improves test flexibility across wide viscosity ranges
• Real-time curve display enables time-viscosity trend analysis and optional temperature-viscosity correlation (with optional sensor)
• Stores up to 30 self-built testing procedures and saves 30 complete measurement datasets for standardized workflows

🔗 Connectivity & Integration

The AELAB Touchscreen High-Temperature Brinell Rotational Viscometer supports RS232 computer output for data transfer, external archiving, and integration with laboratory information systems. Optional software enables extended curve processing and provides shear rate–viscosity and viscosity–time curve visualization. A printer interface is provided for printing data and curves (printer purchased separately), supporting GLP-style documentation workflows.

🧠 Model Insight

🧪 Testing Applications

The AELAB Touchscreen High-Temperature Brinell Rotational Viscometer is engineered for viscosity testing of high-temperature and high-viscosity melts across laboratory and industrial settings. Typical applications include hot melt adhesive viscosity control, asphalt viscosity measurement, polymer melt viscosity evaluation, plastic melt stability testing, and material formulation optimization. With optional ultra-low viscosity adapter rotor No.0, the viscometer can also measure molten paraffin wax and molten polyethylene wax viscosity for expanded material coverage.

Compliance & Quality Assurance

The AELAB Touchscreen High-Temperature Brinell Rotational Viscometer supports standardized viscosity measurement through automatic calibration across each measurement range and data preservation for consistent laboratory procedures. The system provides procedure storage, dataset retention, and curve documentation aligned with ISO / CE / GLP-style quality practices. RS232 output, optional software processing, and optional printing enhance traceable reporting for regulated and industrial QC environments.

For advanced melt analysis and high-viscosity quality control, the AELAB Touchscreen High-Temperature Brinell Rotational Viscometer delivers stable rotational measurement, rapid touchscreen operation, and wide-range viscosity quantification from 50 mPa·s to 80,000,000 mPa·s — engineered for laboratory precision and industrial process reliability with AELAB instrumentation.
