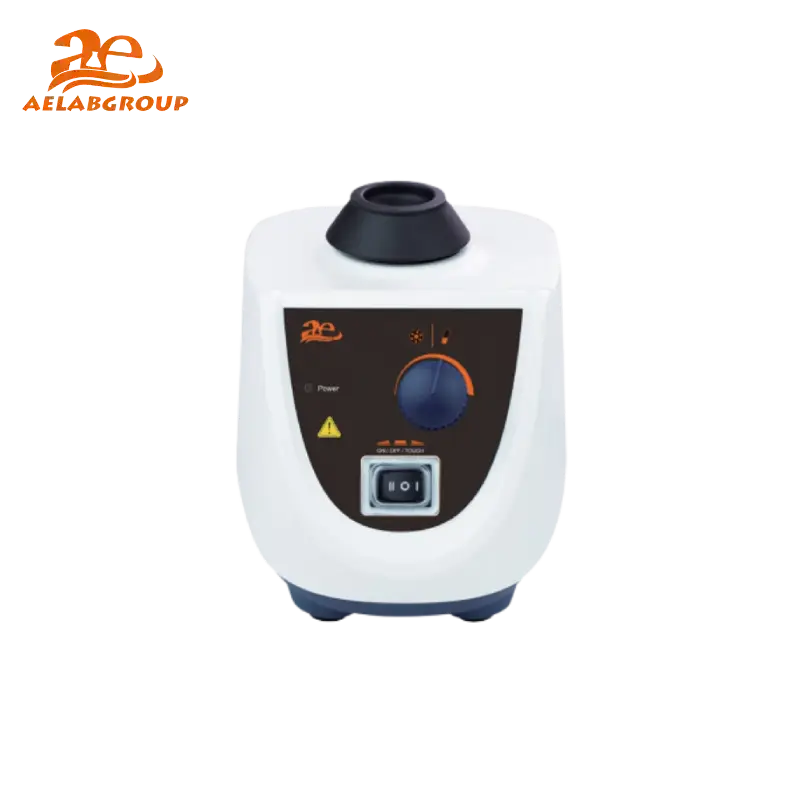

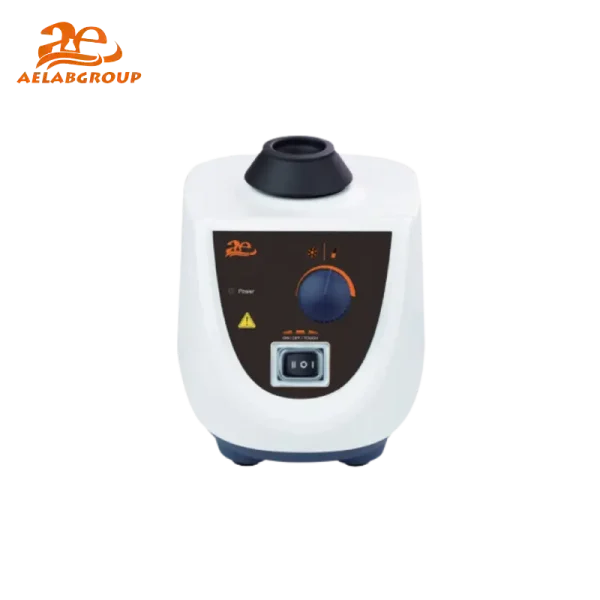

The AELAB Vortex Mixer AVT-501 is a compact and efficient laboratory device designed for fast mixing of small liquid volumes. With adjustable speeds up to 3000 rpm, durable aluminum alloy casing, and easy touch/continuous operation, it ensures reliable performance for daily lab use.
A vortex mixer is a device used in laboratories to mix small quantities of liquids quickly. It operates by generating a vortex or swirling motion in the liquid, which helps to blend the components thoroughly. The mixer typically consists of a motor that drives a rotating mechanism, and a rubber or foam pad where the sample container is placed.
To use it, you generally place the container on the pad and turn on the device. The motor’s action causes the liquid to spin rapidly, mixing it effectively. Some vortex mixers have adjustable speed settings to handle different mixing requirements. This tool is particularly useful for tasks like preparing samples for testing or combining reagents
Features:
The AELAB AVT-501 Vortex Mixer operates by generating a rapid orbital motion, creating a vortex in liquid samples placed on the mixing pad. Simply press a test tube or container against the rubber cup for quick mixing in touch mode, or select continuous mode for uninterrupted blending. With speeds up to 3000 rpm, it ensures uniform mixing of reagents, suspensions, and biological samples.
High-Speed Precision: Adjustable mixing from gentle agitation to vigorous blending.
Durable Build: Aluminum alloy casing resists corrosion and daily wear.
Versatile Operation: Touch and continuous modes for flexible lab applications.
Stable Performance: Rubber vacuum grippers hold the unit securely during use.
Low Maintenance: Shaded pole motor ensures long service life with minimal upkeep.
User-Friendly Design: Compact, lightweight, and easy to position on any lab bench.
Educational & Training Labs: Ideal for quick demonstrations and student experiments.
Research Laboratories: Suitable for mixing reagents, suspensions, and test samples.
Quality Control Labs: Provides fast, repeatable mixing for consistent testing workflows.
Clinical & Biotech Labs: Reliable for sample preparation in diagnostic and molecular biology work.
Chemical analysis
Biological and molecular research
Clinical diagnostics
Food and pharmaceutical testing labs
Routine sample preparation

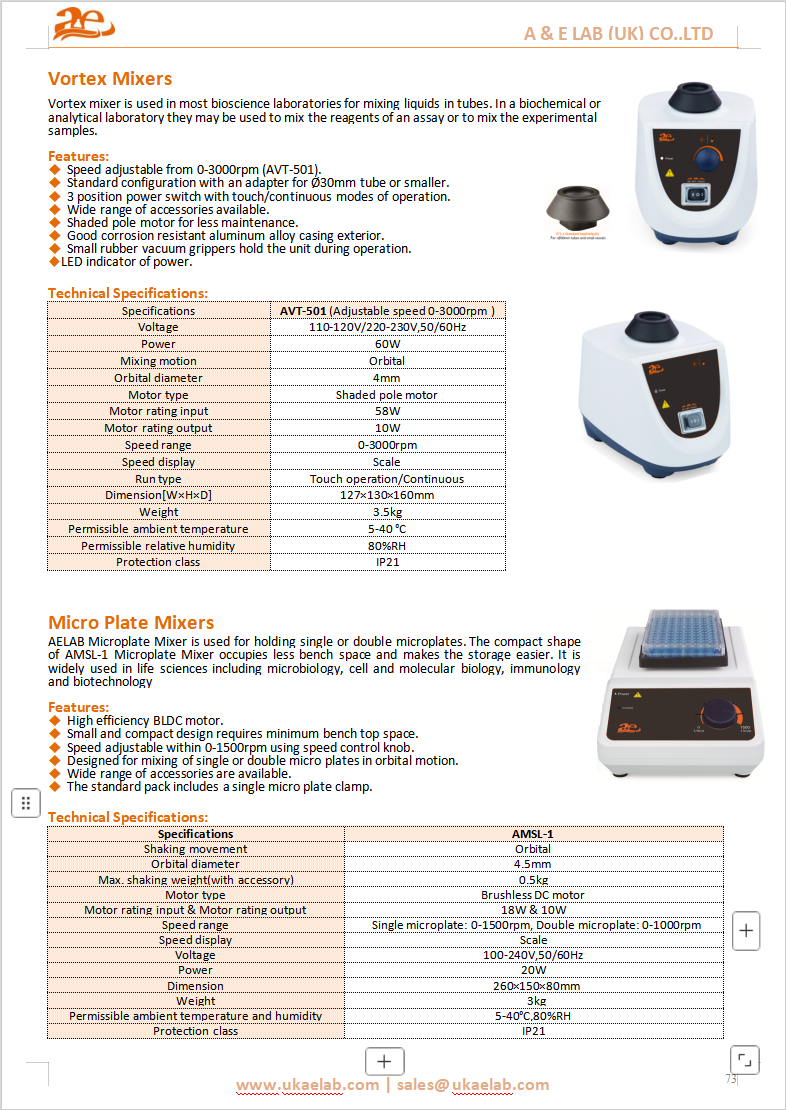

Specifications :
| Specifications | AVT-501 (Adjustable speed 0-3000rpm ) |
| Voltage | 110-120V/220-230V,50/60Hz |
| Power | 60W |
| Mixing motion | Orbital |
| Orbital diameter | 4mm |
| Motor type | Shaded pole motor |
| Motor rating input | 58W |
| Motor rating output | 10W |
| Speed range | 0-3000rpm |
| Speed display | Scale |
| Run type | Touch operation/Continuous |
| Dimension[W×H×D] | 127×130×160mm |
| Weight | 3.5kg |
| Permissible ambient temperature | 5-40 °C |
| Permissible relative humidity | 80%RH |
| Protection class | IP21 |
| Specifications | AVT-501 (Adjustable speed 0-3000rpm ) |
| Voltage | 110-120V/220-230V,50/60Hz |
| Power | 60W |
| Mixing motion | Orbital |
| Orbital diameter | 4mm |
| Motor type | Shaded pole motor |
| Motor rating input | 58W |
| Motor rating output | 10W |
| Speed range | 0-3000rpm |
| Speed display | Scale |
| Run type | Touch operation/Continuous |
| Dimension[W×H×D] | 127×130×160mm |
| Weight | 3.5kg |
| Permissible ambient temperature | 5-40 °C |
| Permissible relative humidity | 80%RH |
| Protection class | IP21 |
