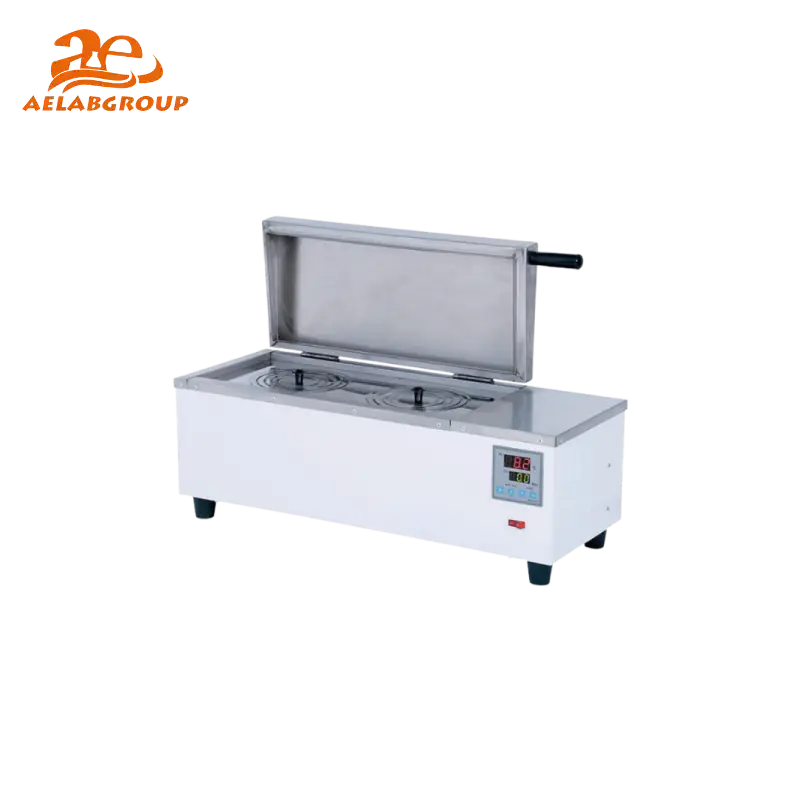

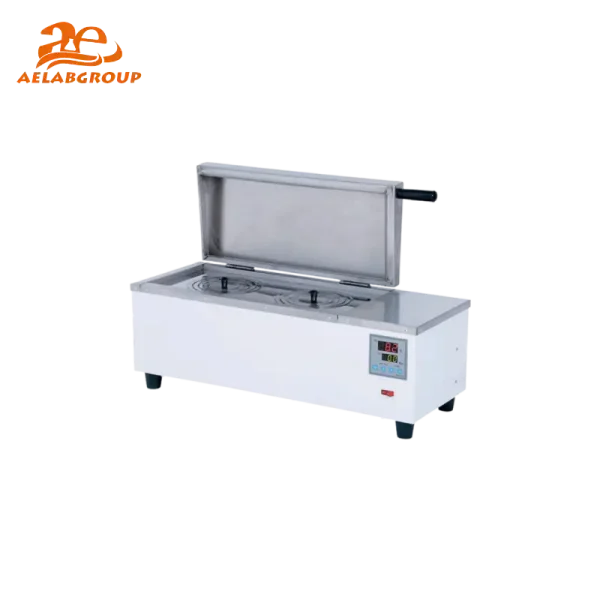

AELAB Water Bath WB-T1 Series – Precise Laboratory Thermostatic Equipment

The AELAB Water Bath WB-T1 Series offers advanced thermostatic heating for chemical, biological, and medical applications. Featuring corrosion-resistant stainless steel and intelligent microcomputer controls, it ensures stable, precise temperature regulation for reliable lab performance.

Modles : WB-T1~WB-T4
whatsapp Whatsapp

It applies in distilling, drying, concentrating and thermostatic heating the chemicals and biological products, checking serum, biochemical experiment, thermostatic culture, and boiling sterilizing for injectors and small surgical equipment in laboratories and medical and health units.



Features:

  • The case adopts high quality cold-rolled plate and the electrostatic plastic spraying treatment on the surface.
  • The working room, upper frame and lower frame and top cover are made of high quality imported stainless steel plate. It has advantages, such as reasonable structure design, strong corrosion resistant, beautiful shape, easy to operate and long useful life etc.
  • Microcomputer intelligent temperature control instruments control, with temperature control and high precision stable performance, easy operation and convenience.



🔬 How It Works?

The WB-T1 Water Bath uses microcomputer-based temperature control for accurate thermostatic heating. The stainless steel bath chamber heats water to maintain a stable temperature, suitable for distilling, drying, sterilizing, and biochemical experiments. The temperature sensors provide real-time feedback to maintain precision within ±1°C, while the timer allows customizable heating durations.



💡 Advantages

  • High Precision Control: Microcomputer temperature regulation ensures stability and accuracy.

  • Durability: Constructed with corrosion-resistant imported stainless steel and cold-rolled steel frame for long life.

  • User-Friendly: Easy operation with intuitive temperature and timer controls.

  • Versatile Applications: Supports multiple lab processes including sterilization, biochemical tests, and thermostatic culture.

  • Efficient Design: Compact and robust design with multiple holes to accommodate varied sample sizes.



🔍 Recommended Models by Use Case

  • WB-T1 / WB-T3: Ideal for smaller labs needing 2-hole thermostatic heating for routine tests.

  • WB-T2 / WB-T4: Suited for research centers or medical units requiring larger capacity and 3-hole operation for simultaneous testing.



🧪 Ideal For

  • Chemical and biological research laboratories

  • Medical and health units for sterilization and culture

  • Serum and biochemical analysis

  • Pharmaceutical labs requiring thermostatic control

  • Educational institutions conducting practical lab experiments



Specifications :

Model WB-T1 WB-T2 WB-T3 WB-T4
Specifications (Thermostatic) 420 (Thermostatic) 600 (Three-operating) 420 (Three-operating) 600
Hole Number 2 holes 3 holes 2 holes 3 holes
Power (W) 500 750 1000 2000
Working Voltage (V) AC220V 50Hz
Range of

temperature control (℃)

(RT)+10~65 (RT)+10~100
Wave degree of

temperature (℃)

±1
Timer 0~999mins
Size of Working

Room (mm)(LxWxD)

420x180x105 600x300x150 420x180x105 600x300x150
Overall dimension (mm)(LxWxH) 595x230x260 775x350x340 595x230x260 775x350x340
NW (kg) 7.15 13 8 14.25
GW (kg) 8.25 15 9.1 16.25
Model WB-T1 WB-T2 WB-T3 WB-T4
Specifications (Thermostatic) 420 (Thermostatic) 600 (Three-operating) 420 (Three-operating) 600
Hole Number 2 holes 3 holes 2 holes 3 holes
Power (W) 500 750 1000 2000
Working Voltage (V) AC220V 50Hz
Range of

temperature control (℃)

(RT)+10~65 (RT)+10~100
Wave degree of

temperature (℃)

±1
Timer 0~999mins
Size of Working

Room (mm)(LxWxD)

420x180x105 600x300x150 420x180x105 600x300x150
Overall dimension (mm)(LxWxH) 595x230x260 775x350x340 595x230x260 775x350x340
NW (kg) 7.15 13 8 14.25
GW (kg) 8.25 15 9.1 16.25

Frequently Asked Questions

1How is calibration done?
Calibration is performed via the built-in microcomputer controller with external standard temperature references to ensure accuracy.
2Is the device GMP compliant?
Yes, the WB-T1 Series meets GMP standards for laboratory and medical equipment.
3What is the warranty period?
AELAB provides a standard 12-month warranty covering manufacturing defects and controller performance.
