Wet Film Comb CM-8000

The CM-8000 Wet Film Comb is designed to measure the thickness of wet coatings, including paint, enamel, varnish, adhesives, and other coatings applied to smooth surfaces. It ensures accurate, quick checks of coating thickness for a wide range of applications in industries like architecture, automotive, and chemicals.

Modles : CM-8000

Quantity:

Send Email

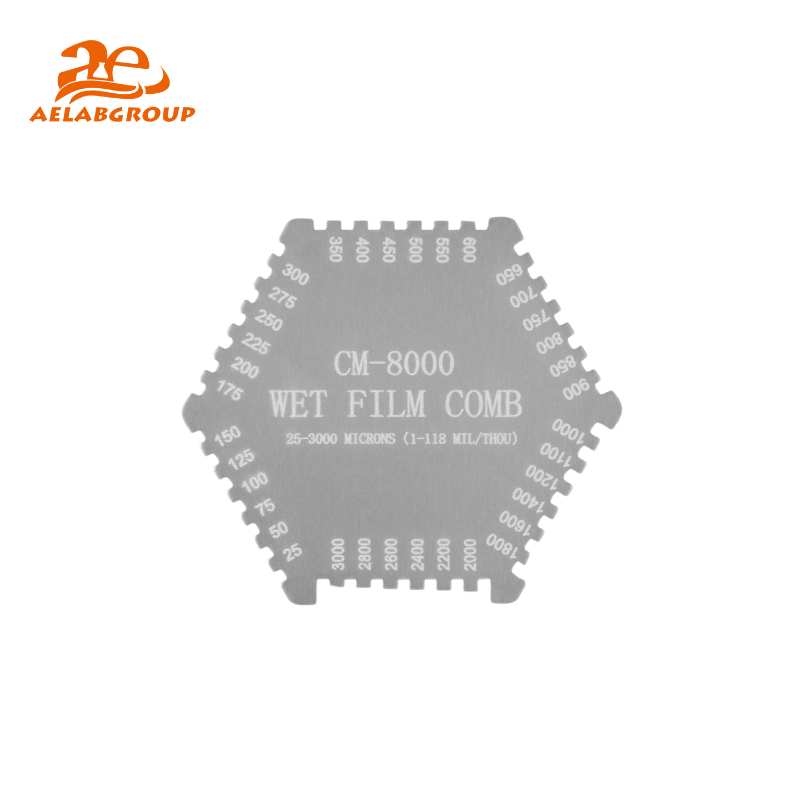

The CM-8000 Wet Film Comb is a precision tool used to measure the thickness of wet coatings, including paints, enamels, varnishes, adhesives, and other applied coatings. Ideal for use in industries such as automotive, construction, and chemicals, it provides an easy and reliable way to assess coating thickness on smooth surfaces.

With its multiple teeth of varying sizes, the CM-8000 allows for quick and accurate measurements, ensuring optimal coating application and quality control. The compact design makes it highly portable and easy to use in both field and workshop settings, providing essential support for achieving consistent and uniform coatings.

Measuring Procedure

1. Select appropriate comb according to approximate known thickness.
2. Hold comb perpendicular to surface coating to be measured.
3. Press into coating until the comb stands square on substrate.
4. Wet film thickness is between the highest step which is coated and the next (higher) step which remains uncoated.

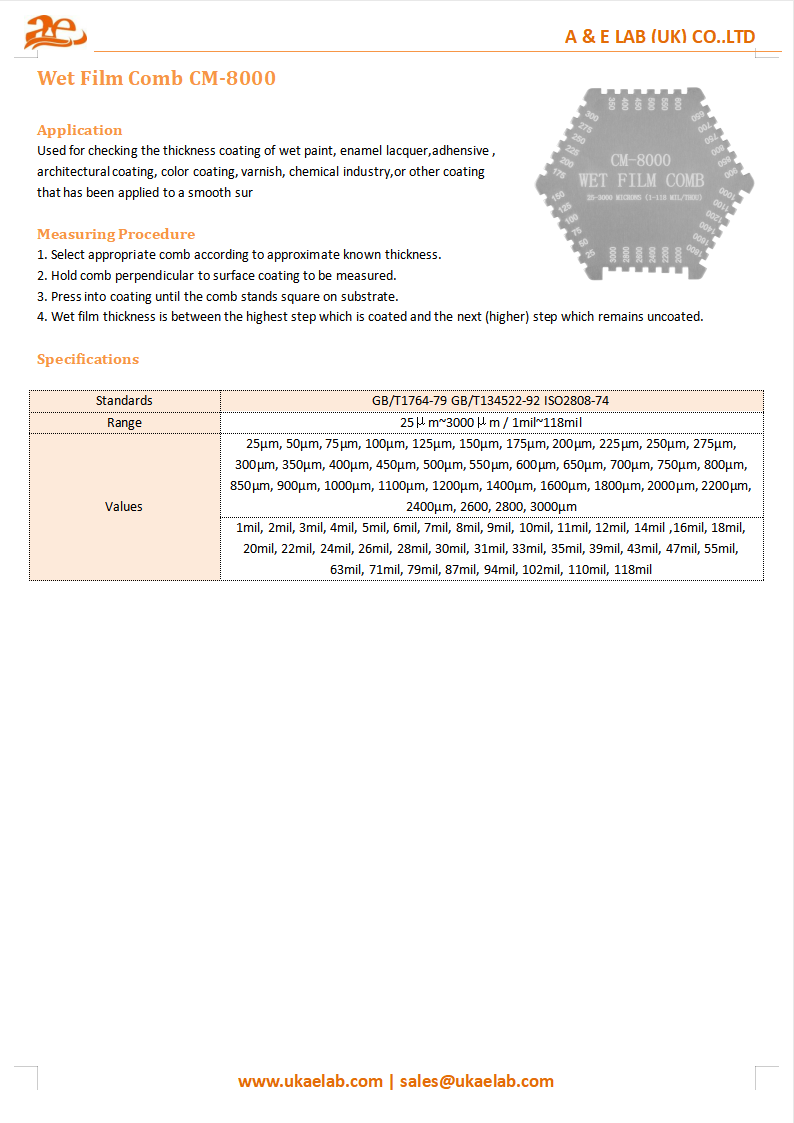

Specifications :

Standards	GB/T1764-79 GB/T134522-92 ISO2808-74
Range	25μm~3000μm / 1mil~118mil
Values	25µm, 50µm, 75µm, 100µm, 125µm, 150µm, 175µm, 200µm, 225µm, 250µm, 275µm, 300µm, 350µm, 400µm, 450µm, 500µm, 550µm, 600µm, 650µm, 700µm, 750µm, 800µm, 850µm, 900µm, 1000µm, 1100µm, 1200µm, 1400µm, 1600µm, 1800µm, 2000µm, 2200µm, 2400µm, 2600, 2800, 3000µm
	1mil, 2mil, 3mil, 4mil, 5mil, 6mil, 7mil, 8mil, 9mil, 10mil, 11mil, 12mil, 14mil ,16mil, 18mil, 20mil, 22mil, 24mil, 26mil, 28mil, 30mil, 31mil, 33mil, 35mil, 39mil, 43mil, 47mil, 55mil, 63mil, 71mil, 79mil, 87mil, 94mil, 102mil, 110mil, 118mil

Standards	GB/T1764-79 GB/T134522-92 ISO2808-74
Range	25μm~3000μm / 1mil~118mil
Values	25µm, 50µm, 75µm, 100µm, 125µm, 150µm, 175µm, 200µm, 225µm, 250µm, 275µm, 300µm, 350µm, 400µm, 450µm, 500µm, 550µm, 600µm, 650µm, 700µm, 750µm, 800µm, 850µm, 900µm, 1000µm, 1100µm, 1200µm, 1400µm, 1600µm, 1800µm, 2000µm, 2200µm, 2400µm, 2600, 2800, 3000µm
	1mil, 2mil, 3mil, 4mil, 5mil, 6mil, 7mil, 8mil, 9mil, 10mil, 11mil, 12mil, 14mil ,16mil, 18mil, 20mil, 22mil, 24mil, 26mil, 28mil, 30mil, 31mil, 33mil, 35mil, 39mil, 43mil, 47mil, 55mil, 63mil, 71mil, 79mil, 87mil, 94mil, 102mil, 110mil, 118mil
