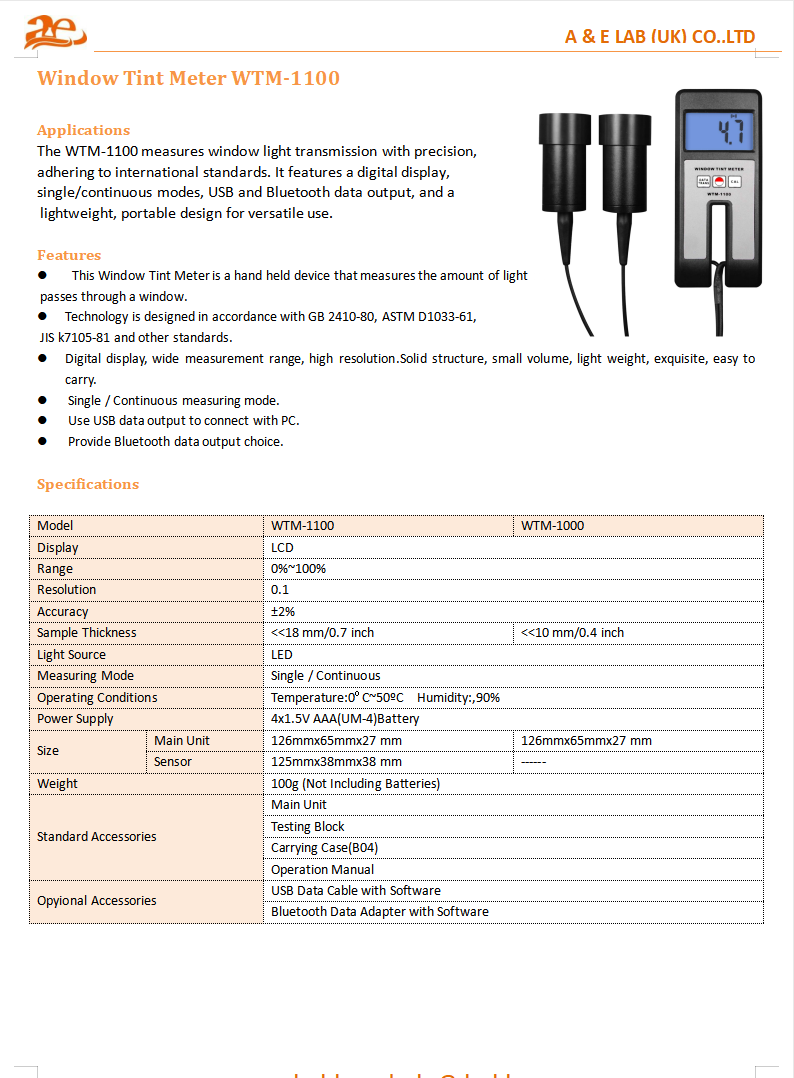

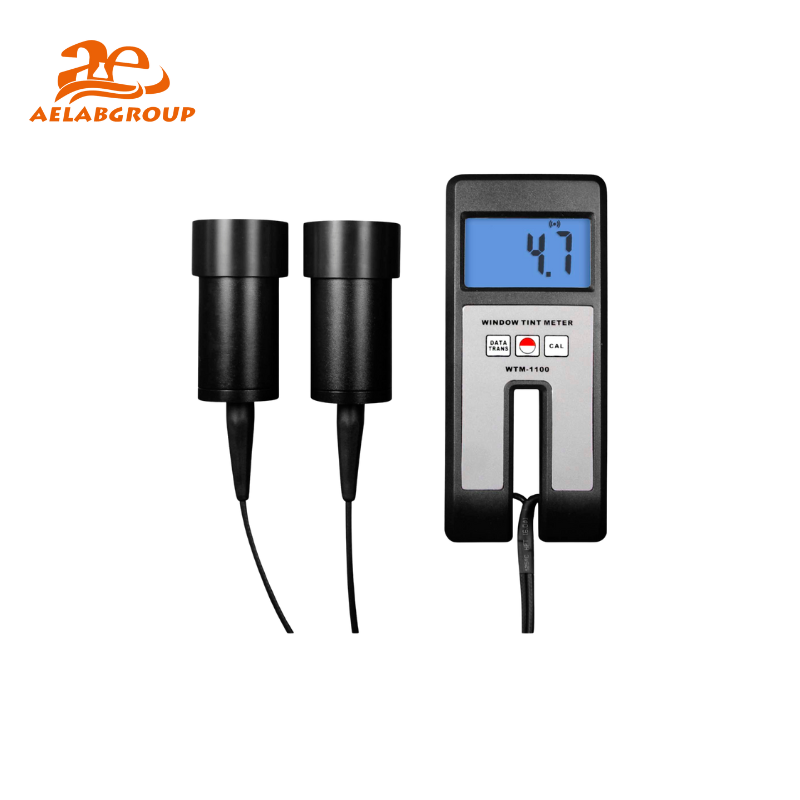

Window Tint Meter WTM-1100

The WTM-1100 measures window light transmission with precision, adhering to international standards. It features a digital display, single/continuous modes, USB and Bluetooth data output, and a lightweight, portable design for versatile use.
Modles : WTM-1100、WTM-1000
whatsapp Whatsapp

he WTM-1100 is a compact and portable device designed to measure the light transmission of windows with precision. Built to comply with standards such as GB 2410-80, ASTM D1033-61, and JIS k7105-81, it delivers reliable results across a wide measurement range. The digital display ensures easy readability, while the durable construction makes it suitable for on-the-go use.

The meter offers both single and continuous measurement modes to suit various needs. Data transfer is simple and flexible, with options for USB connection to a PC or Bluetooth output for wireless convenience. Its lightweight, user-friendly design makes it ideal for both professional and personal applications.



Features

  • This Window Tint Meter is a hand held device that measures the amount of light that

passes through a window.

  • Technology is designed in accordance with GB 2410-80, ASTM D1033-61,

JIS k7105-81 and other standards.

  • Digital display, wide measurement range, high resolution.Solid structure, small volume, light weight, exquisite, easy to carry.
  • Single / Continuous measuring mode.
  • Use USB data output to connect with PC.
  • Provide Bluetooth data output choice.

Specifications :

Model WTM-1100 WTM-1000
Display LCD
Range 0%~100%
Resolution 0.1
Accuracy ±2%
Sample Thickness <<18 mm/0.7 inch <<10 mm/0.4 inch
Light Source LED
Measuring Mode Single / Continuous
Operating Conditions Temperature:0ºC~50ºC   Humidity:,90%
Power Supply 4x1.5V AAA(UM-4)Battery
Size Main Unit 126mmx65mmx27 mm 126mmx65mmx27 mm
Sensor 125mmx38mmx38 mm ------
Weight 100g (Not Including Batteries)
Standard Accessories Main Unit
Testing Block
Carrying Case(B04)
Operation Manual
Opyional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
Model WTM-1100 WTM-1000
Display LCD
Range 0%~100%
Resolution 0.1
Accuracy ±2%
Sample Thickness <<18 mm/0.7 inch <<10 mm/0.4 inch
Light Source LED
Measuring Mode Single / Continuous
Operating Conditions Temperature:0ºC~50ºC   Humidity:,90%
Power Supply 4x1.5V AAA(UM-4)Battery
Size Main Unit 126mmx65mmx27 mm 126mmx65mmx27 mm
Sensor 125mmx38mmx38 mm ------
Weight 100g (Not Including Batteries)
Standard Accessories Main Unit
Testing Block
Carrying Case(B04)
Operation Manual
Opyional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
