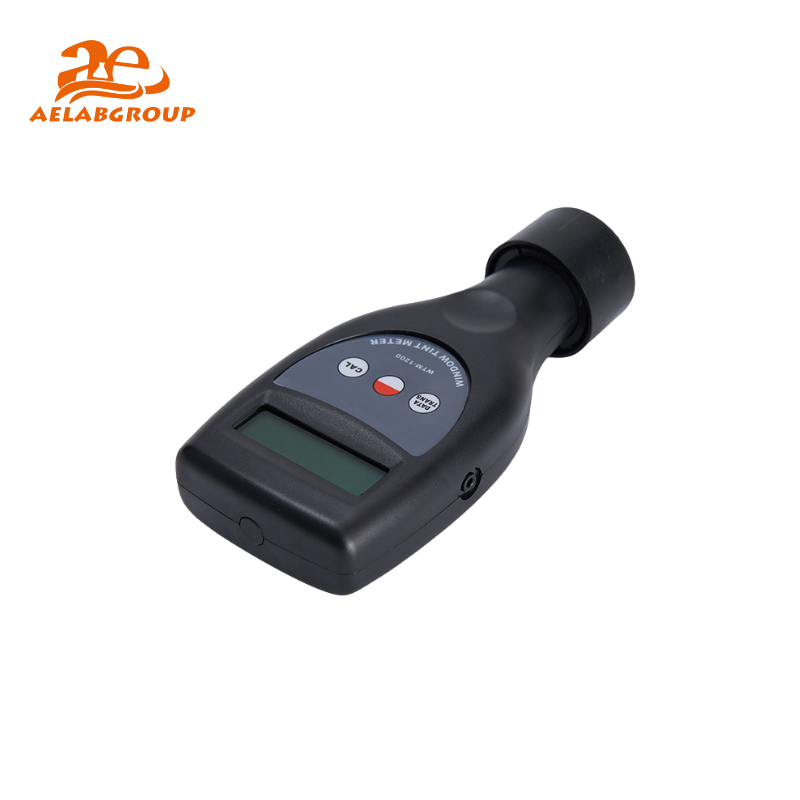

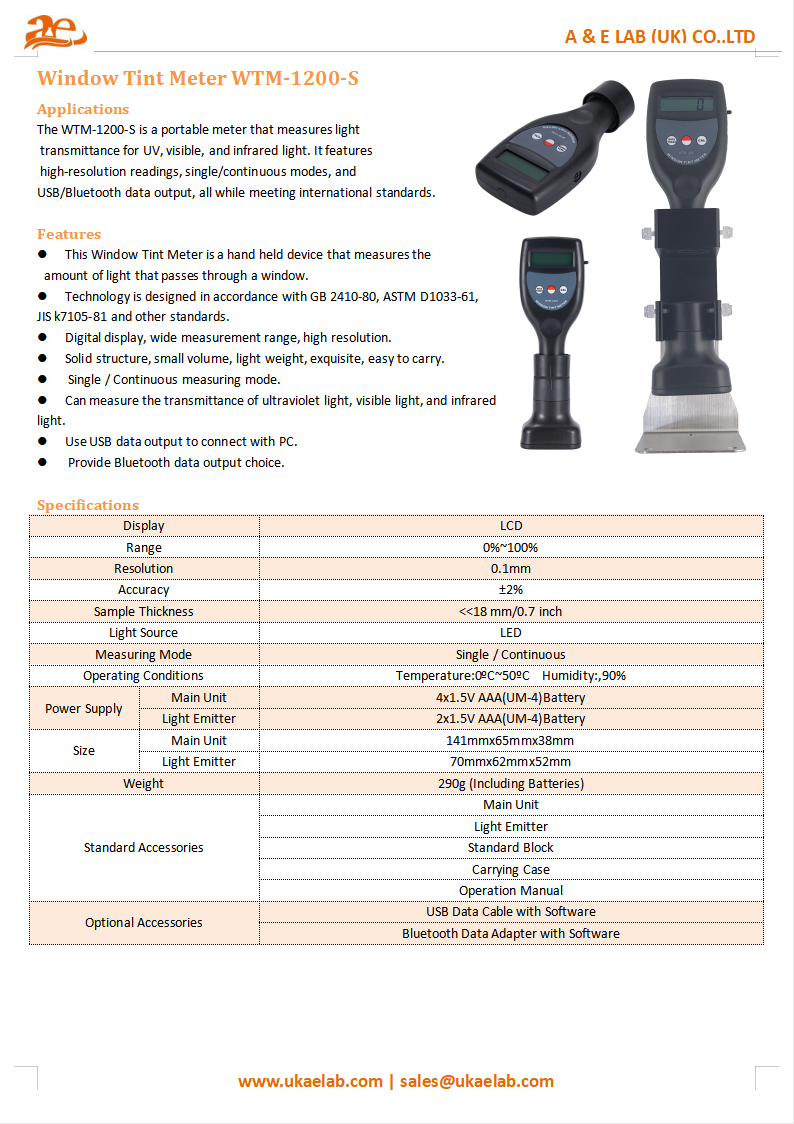

Window Tint Meter WTM-1200-S

The WTM-1200-S is a portable meter that measures light transmittance for UV, visible, and infrared light. It features high-resolution readings, single/continuous modes, and USB/Bluetooth data output, all while meeting international standards.
Modles : WTM-1200-S
whatsapp Whatsapp

The WTM-1200-S is a handheld device designed to measure the light transmittance of windows, including ultraviolet, visible, and infrared light. Compliant with international standards such as GB 2410-80, ASTM D1033-61, and JIS K7105-81, it offers high-resolution readings across a wide measurement range.

With a compact, lightweight design, the WTM-1200-S is easy to carry and use. It supports both single and continuous measuring modes, and allows for convenient data output via USB or Bluetooth for PC connection.



Features

  • This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
  • Technology is designed in accordance with GB 2410-80, ASTM D1033-61,JIS k7105-81 and other standards.
  • Digital display, wide measurement range, high resolution.
  • Solid structure, small volume, light weight, exquisite, easy to carry.
  • Single / Continuous measuring mode.
  • Can measure the transmittance of ultraviolet light, visible light, and infrared light.
  • Use USB data output to connect with PC.
  • Provide Bluetooth data output choice.

Specifications :

Display LCD
Range 0%~100%
Resolution 0.1mm
Accuracy ±2%
Sample Thickness <<18 mm/0.7 inch
Light Source LED
Measuring Mode Single / Continuous
Operating Conditions Temperature:0ºC~50ºC   Humidity:,90%
Power Supply Main Unit 4x1.5V AAA(UM-4)Battery
Light Emitter 2x1.5V AAA(UM-4)Battery
Size Main Unit 141mmx65mmx38mm
Light Emitter 70mmx62mmx52mm
Weight 290g (Including Batteries)
Standard Accessories Main Unit
Light Emitter
Standard Block
Carrying Case
Operation Manual
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
Display LCD
Range 0%~100%
Resolution 0.1mm
Accuracy ±2%
Sample Thickness <<18 mm/0.7 inch
Light Source LED
Measuring Mode Single / Continuous
Operating Conditions Temperature:0ºC~50ºC   Humidity:,90%
Power Supply Main Unit 4x1.5V AAA(UM-4)Battery
Light Emitter 2x1.5V AAA(UM-4)Battery
Size Main Unit 141mmx65mmx38mm
Light Emitter 70mmx62mmx52mm
Weight 290g (Including Batteries)
Standard Accessories Main Unit
Light Emitter
Standard Block
Carrying Case
Operation Manual
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
