Introduction
Rotational viscometer calibration is essential for obtaining precise viscosity measurements in industries such as pharmaceuticals, petrochemicals, food, and coatings. Proper calibration ensures reliable data, improves product consistency, and meets regulatory requirements. This guide outlines the critical steps to achieve accurate viscosity measurement through a structured calibration procedure while preventing common errors.
1. Importance of Rotational Viscometer Calibration
Why Rotational Viscometer Calibration is Essential
- Ensures accurate viscosity measurement for quality control.
- Prevents product inconsistencies and manufacturing defects.
- Enhances compliance with calibration standards like ISO 17025 and ASTM D445.
- Reduces process inefficiencies caused by inaccurate viscometer readings.
- Increases the longevity and performance of rotational viscometers.
2. Standard Calibration Procedures
A viscometer calibration procedure follows a structured approach to ensure accuracy and repeatability.
2.1 Pre-Calibration Preparations
- Cleaning: Ensure all viscometer components are free from contamination.
- Temperature Equilibration: Stabilize the instrument in the testing environment.
- Spindle Selection: Choose the correct spindle type for the expected viscosity range.
- Calibration Standard Selection: Use certified viscosity standards (e.g., ISO 17025, ASTM D445).
- Environmental Control: Minimize vibration and temperature fluctuations for precise calibration.
Figure 1: Rotational Viscometer Components and Installation

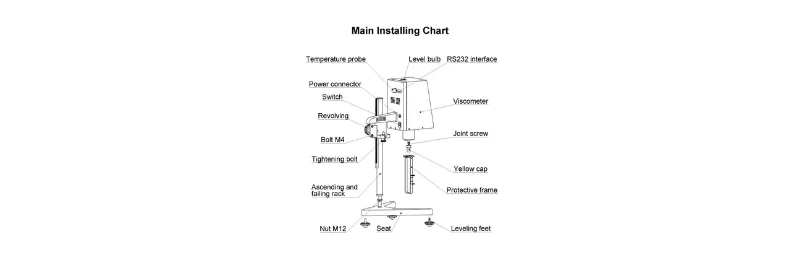

This schematic diagram illustrates the essential components of a rotational viscometer, including the spindle, temperature probe, and leveling system, which are crucial for accurate viscometer calibration. Proper setup and maintenance of these elements ensure precise viscosity measurement and compliance with industry standards.
2.2 Step-by-Step Rotational Viscometer Calibration Process
| Step | Procedure |
|---|---|
| 1 | Level and set up the rotational viscometer. |
| 2 | Load the calibration standard into the sample chamber. |
| 3 | Lower the spindle and allow thermal stabilization. |
| 4 | Start the viscometer calibration procedure and record viscosity readings. |
| 5 | Perform at least three replicate viscosity measurements. |
| 6 | Clean the spindle between measurements. |
| 7 | Repeat for different viscosity standards to verify accuracy. |
Figure 2: Structure and Components of a Rotational Viscometer for Calibration

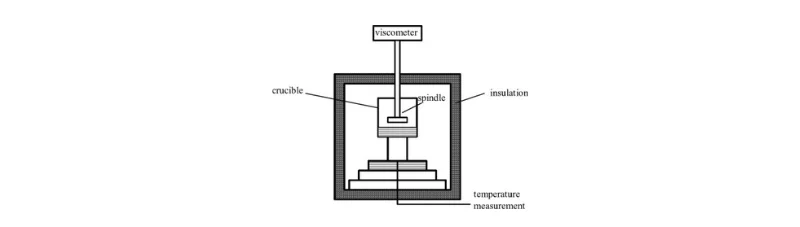

This schematic diagram illustrates a rotational viscometer, highlighting key components such as the spindle, sample chamber, insulation, and temperature measurement system. In the rotational viscometer calibration process, maintaining temperature control and ensuring thermal equilibrium between the sample and the device are crucial for achieving measurement accuracy and repeatability.
2.3 Post-Calibration Checks and Maintenance
- Data Analysis: Calculate average viscosity and deviation to confirm measurement precision.
- Record Keeping: Maintain logs for calibration dates, instrument settings, and viscosity measurement results.
- Preventative Maintenance: Regularly inspect and clean rotational viscometer components.
3. Common Rotational Viscometer Calibration Errors and How to Avoid Them
| Error Type | Cause | Solution |
|---|---|---|
| Temperature Fluctuations | Inconsistent environmental control | Use a temperature-controlled bath |
| Air Bubbles | Improper sample loading | Degas the sample before measurement |
| Spindle Contamination | Residual sample buildup | Clean spindle thoroughly |
| Incorrect Spindle Selection | Mismatch for viscosity measurement range | Follow manufacturer guidelines |
| Operator Error | Inconsistent handling | Use standardized viscometer calibration procedures |
4. Types of Calibration Methods
On-Site Calibration
Done within production environments to minimize downtime.
In-Lab Calibration
Conducted in a controlled setting for high precision.
Automated Calibration
Modern rotational viscometers feature self-calibration functions.
5. Industry Standards for Rotational Viscometer Calibration
ISO 17025
Requirements for calibration laboratories.
ASTM D445
Kinematic viscosity measurement standard.
DIN 51366
Industrial viscosity testing protocols.
NIST Standards
Certified viscosity references for precision calibration.
6. Selecting the Right Viscosity Calibration Standards
| Standard | Viscosity Range | Application |
|---|---|---|
| Silicone Oil | Low to high viscosity | General viscometer calibration |
| Mineral Oil | Medium viscosity | Petroleum industry |
| Polymer Solutions | High viscosity | Adhesives and coatings |
7. Rotational Viscometer Calibration for Different Spindle Types
| Spindle Type | Application | Sample Volume |
|---|---|---|
| Standard Spindle | General-purpose fluids | ~500 mL |
| Cylindrical Spindle | High-precision liquids | 2–20 mL |
| Double-Gap Spindle | Low-viscosity fluids | 7.5 mL |
| Cone-Plate Spindle | Low-volume samples | 0.5–2 mL |
| Vane Spindle | Non-flowing samples | 20–500 mL |
8. Advanced Calibration Techniques for Rotational Viscometers
Shear Rate Calculation
Absolute measurement systems for determining fluid flow behavior.
Yield Point Determination
Critical for high-viscosity and paste-like materials.
Automated Data Logging
Enhances traceability and reduces human error.
9. Ensuring Long-Term Accuracy in Rotational Viscometer Calibration
- Schedule regular calibration checks (at least annually or based on usage frequency).
- Use only certified viscosity standards with proper documentation.
- Maintain spindle and chamber cleanliness before each test.
- Monitor torque values for detecting potential instrument drift.
Conclusion
Accurate rotational viscometer calibration is essential for obtaining reliable viscosity measurements across various industries. Following structured calibration procedures, using certified viscosity standards, and preventing common errors ensures precise and repeatable viscosity measurement. Routine maintenance and adherence to industry standards further enhance the reliability and longevity of rotational viscometers.
