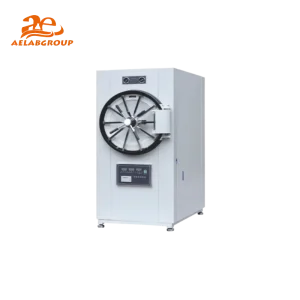

Horizontal Cylindrical Pressure Steam Sterilizer ( WS series) AELAB

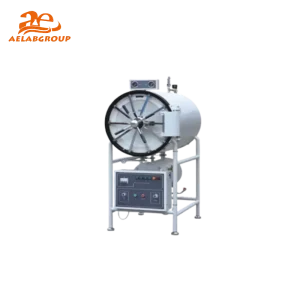

Horizontal Cylindrical Pressure Steam Sterilizer WS-150YDB series

Horizontal Cylindrical Pressure Steam Sterilizer WS-150YDA Series

Horizontal Sterilizer

Introduction

The Horizontal Sterilizer is a high-capacity autoclave designed for large-scale sterilization needs. Its horizontally oriented chamber provides easy loading and unloading of bulky or heavy equipment, making it ideal for hospitals, laboratories, and industrial facilities. This design ensures efficient steam circulation and uniform sterilization across large batches of instruments and materials.

What Is a Horizontal Sterilizer?

A Horizontal Sterilizer is an advanced autoclave system that uses saturated steam under high pressure to sterilize medical, laboratory, and industrial equipment. Its horizontal chamber configuration allows for the sterilization of large loads, wrapped or unwrapped instruments, and porous materials. These sterilizers are widely used in hospitals, pharmaceutical production, and research institutions due to their durability, high efficiency, and user-friendly operation.

Devices in This Category

Hospital Horizontal Steam Sterilizer
Pharmaceutical Horizontal Autoclave
Laboratory Horizontal Sterilization Unit
Automatic Double Door Horizontal Sterilizer
High-Pressure Horizontal Steam Autoclave

Technical Features and Specifications

Feature	Details
Chamber Orientation	Horizontal, front-loading design
Capacity Range	100–800 L or more
Sterilization Temperature	121–134 °C
Pressure Range	15–30 psi
Heating Source	Steam or electric heating
Chamber Material	High-grade stainless steel
Control System	Digital PLC or microprocessor-based system
Safety Features	Pressure release valve, door interlock, overheat protection

Benefits

Accommodates large loads for batch sterilization.
Provides uniform steam distribution for complete sterilization.
Ideal for hospitals, pharmaceutical production, and research labs.
Automatic control systems ensure precision and repeatability.
Durable construction ensures long operational life and safety.

Applications and Tests

🔬 Molecular Biology

Sterilization of laboratory glassware and media bottles
Decontamination of reusable instruments and waste
Preparation of sterile materials for cell culture

🧪 Clinical Diagnostics

Sterilizing surgical tools and hospital instruments
Processing wrapped and porous materials
Ensuring infection control in healthcare settings

🏭 Industrial & Pharmaceutical Applications

Sterilization of glassware and components in production lines
Used in pharmaceutical and food manufacturing facilities
Decontamination of packaging materials and lab equipment

🌱 Environmental & Agricultural Labs

Sterilization of sampling and testing equipment
Preparation of sterile culture media for plant research
Decontamination of reusable environmental testing tools

Horizontal Sterilizer vs. Vertical Sterilizer

Aspect	Horizontal Sterilizer	Vertical Sterilizer
Orientation	Horizontal, front-loading	Vertical, top-loading
Capacity	Large-scale (100–800+ L)	Small to medium (20–150 L)
Loading Ease	Easier for large and heavy instruments	More suitable for compact spaces
Typical Use	Hospitals, pharmaceutical plants	Laboratories, clinics
Installation	Fixed, requires dedicated space	Portable or bench-top options available

Expert Tips for Choosing the Right Horizontal Sterilizer

Select chamber size based on daily sterilization volume.
Ensure it includes uniform steam distribution and vacuum drying.
Choose PLC-based controls for automated cycle monitoring.
Verify construction quality and stainless-steel grade (SS 304/316).
Opt for models with safety certifications such as CE or ISO 13485.

Maintenance Best Practices

Clean the chamber and door gasket after each use.
Check and lubricate the door locking mechanism regularly.
Inspect pressure and temperature gauges monthly.
Descale the steam generator periodically.
Calibrate sensors and validate performance annually.

FAQ

Q: What is a Horizontal Sterilizer used for?
A: It is used for sterilizing large quantities of instruments, medical devices, and materials in hospitals, laboratories, and industrial facilities.

Q: What are the advantages of a horizontal autoclave?
A: It offers high capacity, efficient steam distribution, and convenient front-loading for heavy or large items.

Q: Can a Horizontal Sterilizer handle wrapped instruments?
A: Yes, it is suitable for both wrapped and unwrapped loads, including porous materials, depending on its vacuum system.

Q: How does it differ from a vertical sterilizer?
A: The horizontal design supports higher capacities and easier access for large loads, while vertical sterilizers are better suited for smaller, space-limited environments.
