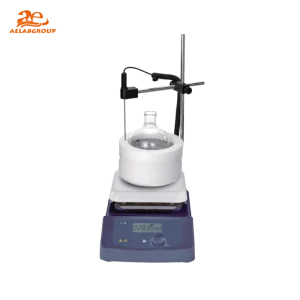

AELAB Alloy Bead Heating Bath aluminum bead heater

AELAB Alloy Bead Heating Bath – High-Conductivity Aluminum Bead Heating System

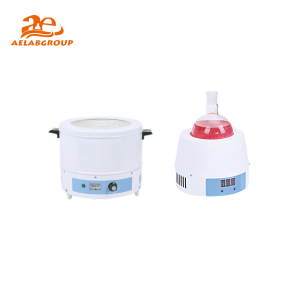

AELAB Heating Mantle HM Series – Precise & Safe Laboratory Heating

Heating Mantle

Introduction

A Heating Mantle is a laboratory device designed to provide uniform heat to containers, typically flasks. It uses a flexible, insulated heating element to evenly distribute heat, making it ideal for distillation, extraction, and other processes requiring precise temperature control. Unlike open flames or hot plates, heating mantles ensure safety, stability, and consistent heating performance, particularly for round-bottom flasks used in chemistry and analytical labs.

Key Features

Uniform, direct heating through flexible resistance coils
Compatible with round-bottom flasks of various sizes
Temperature range up to 450°C
Safe alternative to Bunsen burners or hot plates
Available with analog or digital temperature control
Optional stirring function for uniform solution mixing

Technical Specifications

Parameter	Specification
Temperature Range	Up to 450°C
Control Type	Analog or digital PID controller
Heating Element	Insulated fiberglass resistance coil
Power Rating	100W – 1000W (depending on model)
Flask Compatibility	50 mL to 20 L round-bottom flasks
Safety Features	Thermal insulation, fuse protection, overheat cutoff

Applications

Distillation: Provides steady heating for separating components based on boiling points.
Reflux Reactions: Maintains consistent heat for prolonged chemical reactions.
Solvent Extraction: Aids in the controlled removal of solvents from mixtures.
Sample Digestion: Used in analytical chemistry for decomposing organic or inorganic samples.
Evaporation: Ideal for concentrating solutions under controlled temperature.

Advantages

Provides uniform heat distribution without hotspots.
Prevents glassware damage caused by direct flame contact.
Supports precise temperature control for sensitive reactions.
Compact, stable, and easy to operate in lab environments.
Compatible with magnetic stirrers for enhanced mixing.

Safety and Maintenance Tips

Always use a matching flask size to the mantle cavity.
Never operate the mantle without a flask or liquid inside.
Use a temperature controller to prevent overheating.
Inspect the power cord and insulation regularly for wear.
Allow the mantle to cool before handling or cleaning.

FAQ

Q: What type of glassware is best used with a heating mantle?
A: Heating mantles are specifically designed for round-bottom flasks, which ensure uniform contact and efficient heat transfer.

Q: Can I use a heating mantle without a temperature controller?
A: It’s not recommended. Using a mantle without a controller risks overheating and damaging both the flask and sample.

Q: How is a heating mantle different from a hot plate?
A: Unlike hot plates, heating mantles provide 360° uniform heating and are safer for round-bottom glassware, which can crack on flat hot surfaces.
