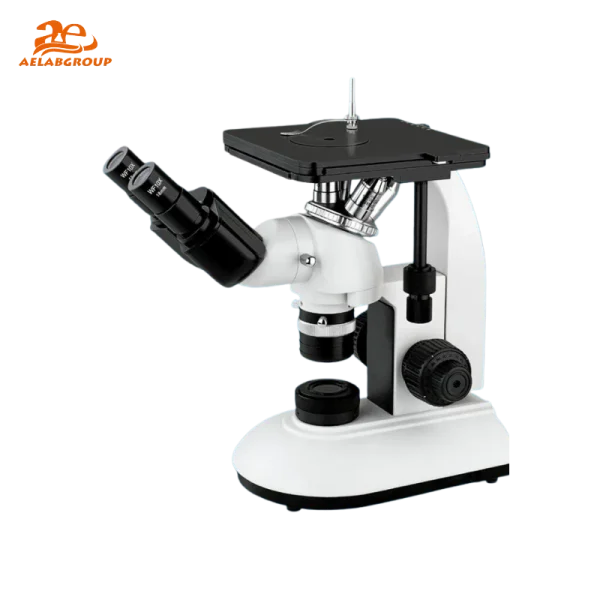

The AELAB AE-MM100 inverted biological microscope is engineered for metallurgical inspection, material structure evaluation, and laboratory-based quality control. Its inverted optical configuration enables direct observation of solid and opaque samples without complex preparation.
Designed with long working distance infinity plan objectives, the AELAB AE-MM100 delivers stable magnification, consistent image clarity, and precise mechanical control for routine and advanced microscopic testing.
The AE-MM100 inverted biological microscope utilizes a rigid metal frame, precision focusing mechanism, and stable inverted optical path. The mechanical stage supports large samples with controlled positioning, while the quadruple nosepiece allows rapid objective switching.
The AELAB AE-MM100 performs inverted optical microscopy by positioning objectives below the sample plane. Reflected illumination passes through metallurgical objectives to analyze surface morphology, grain structure, and material defects with controlled magnification.
The AE-MM100 supports optional C-mount configuration for camera integration. Manual optical operation ensures compatibility with laboratory documentation workflows and external imaging systems.
The AELAB AE-MM100 inverted biological microscope is used for metallurgical analysis, material surface inspection, industrial quality control, research laboratories, educational institutions, and mechanical component evaluation.
The AE-MM100 is manufactured under ISO-aligned quality systems. Optical components and mechanical assemblies undergo inspection to ensure consistent performance, dimensional accuracy, and laboratory reliability.
Specifications :
| Items | Specifications | AE-MM100 | AE-MM200 |
|---|---|---|---|
| Eyepieces | WF10×-18mm | ● | ●● |
| Eyepieces | WF 10× / 18 mm (adjustable, Reticule 0.1 mm) | ○ | ○ |
| Metallurgical LWD Infinity Plan Objectives | LPL 5× / 0.13, W.D.=16.04 mm | ● | ● |
| LPL 10× / 0.25, W.D.=18.48 mm | ● | ● | |
| LPL 20× / 0.40, W.D.=8.35 mm | ○ | ○ | |
| LPL 50× / 0.70, W.D.=1.95 mm | ● | ● | |
| LPL 80× / 0.80, W.D.=0.85 mm | ○ | ○ | |
| LWPlanFL 100× / 0.85 (Dry), W.D.=3.0 mm | ○ | ○ | |
| Butterfly Binocular Head | Inclined 45° | ● | |
| Monocular Head | Inclined 45° | ● | |
| Butterfly Binocular Head | Inclined 45°, Built-in 0.5× C-mount | ○ | |
| Nosepiece | Quadruple | ● | ● |
| Mechanical Stage | Size: 180×180 mm, Travel Range: 30×30 mm, Round Slide Size: Φ110 mm | ● | ● |
| 3 W LED Illumination | Inputvoltage：100V～240V | ● | ● |
| 12 V / 20 W Illumination | Inputvoltage：100V～240V | ○ | ○ |
| Filters | Blue, Green, Grey | ● | ● |
| Micrometer | Division: 0.01 mm | ○ | ○ |
Packing Size: 437×268×522 mm
Gross Weight: 8 kg Net Weight: 7 kg
| Items | Specifications | AE-MM100 | AE-MM200 |
|---|---|---|---|
| Eyepieces | WF10×-18mm | ● | ●● |
| Eyepieces | WF 10× / 18 mm (adjustable, Reticule 0.1 mm) | ○ | ○ |
| Metallurgical LWD Infinity Plan Objectives | LPL 5× / 0.13, W.D.=16.04 mm | ● | ● |
| LPL 10× / 0.25, W.D.=18.48 mm | ● | ● | |
| LPL 20× / 0.40, W.D.=8.35 mm | ○ | ○ | |
| LPL 50× / 0.70, W.D.=1.95 mm | ● | ● | |
| LPL 80× / 0.80, W.D.=0.85 mm | ○ | ○ | |
| LWPlanFL 100× / 0.85 (Dry), W.D.=3.0 mm | ○ | ○ | |
| Butterfly Binocular Head | Inclined 45° | ● | |
| Monocular Head | Inclined 45° | ● | |
| Butterfly Binocular Head | Inclined 45°, Built-in 0.5× C-mount | ○ | |
| Nosepiece | Quadruple | ● | ● |
| Mechanical Stage | Size: 180×180 mm, Travel Range: 30×30 mm, Round Slide Size: Φ110 mm | ● | ● |
| 3 W LED Illumination | Inputvoltage：100V～240V | ● | ● |
| 12 V / 20 W Illumination | Inputvoltage：100V～240V | ○ | ○ |
| Filters | Blue, Green, Grey | ● | ● |
| Micrometer | Division: 0.01 mm | ○ | ○ |
Packing Size: 437×268×522 mm
Gross Weight: 8 kg Net Weight: 7 kg
