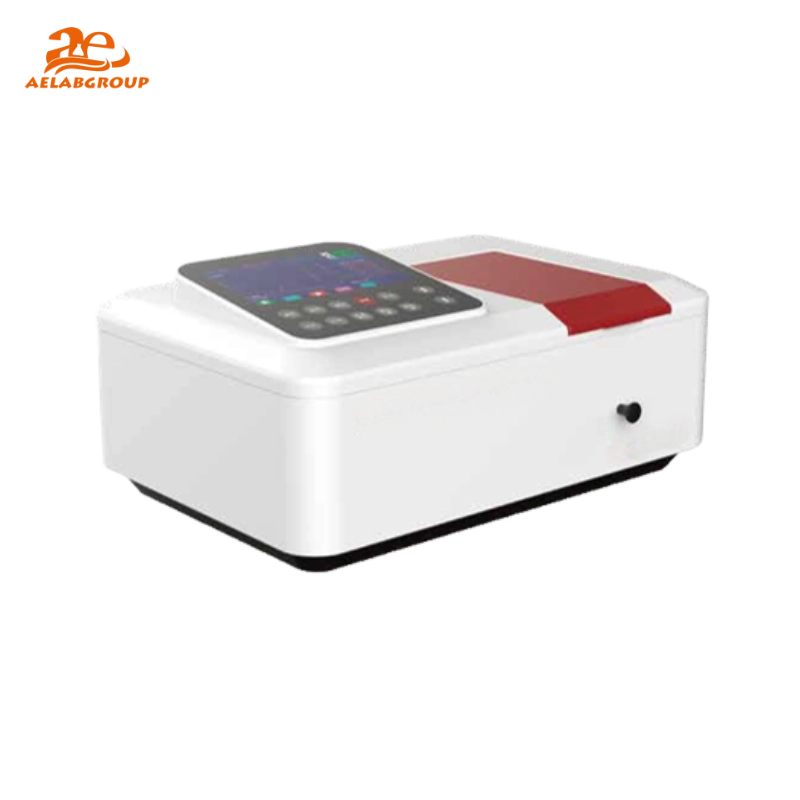

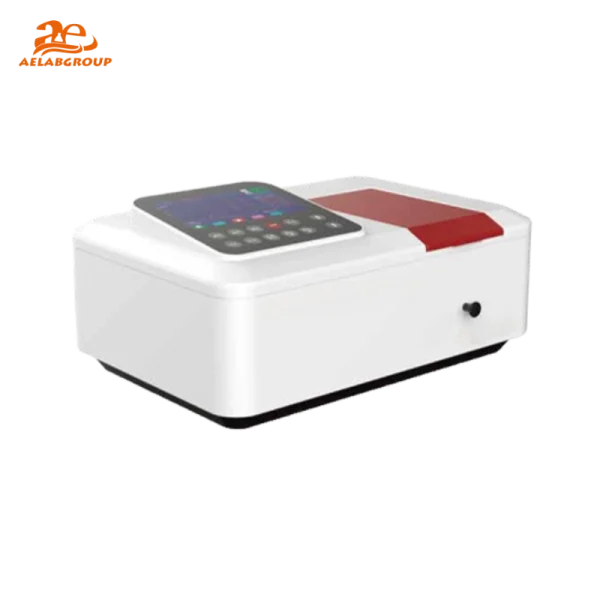

The AELAB AE-SP4000 Series Double-Beam UV-Visible Spectrophotometer is engineered for high-stability optical measurement, supporting absorbance, transmittance, reflectance, and energy testing for laboratory analysis and industrial quality control. The AE-SP4000 uses ARM microcomputer control with advanced signal processing to maintain reproducibility, data integrity, and reliable UV-Visible spectrophotometry.
The AELAB AE-SP4000 double-beam UV-Visible spectrophotometer integrates USB data export, Bluetooth functionality, and CSV reporting to support GLP-aligned documentation. With a high-resolution C-T structure monochromator and a precision optical platform, the AE-SP4000 stabilizes wavelength accuracy, reduces drift, and improves long-term measurement consistency.
The AELAB AE-SP4000 Series is built on an integrated aviation-grade aluminum alloy baseplate with a precision-machined mirror holder to ensure long-term optical stability. The AE-SP4000 incorporates a high-resolution C-T structure monochromator and a 1200 line/mm grating optical system for stable wavelength dispersion and reproducible UV-Visible analysis. Independently designed lamp replacement windows with flange-style positioning support controlled maintenance of the Deuterium lamp and Tungsten lamp.
The AELAB AE-SP4000 UV-Visible spectrophotometer quantifies sample absorbance and transmittance by selecting a defined wavelength within 190–1100 nm and measuring optical attenuation through the sample. Instrument electronics process photodetector signals to calculate Abs, %T, concentration factors, and spectral outputs. In scanning modes, the AE-SP4000 measures optical responses at defined intervals to generate spectra, identify peaks and valleys, and store traceable analytical results.
The AELAB AE-SP4000 Series supports U Disk export, Bluetooth data output, and upload to PC by USB port. Data are stored in CSV format for compatibility with laboratory reporting workflows and external analysis tools. Software supports one-click upgrades and Bluetooth printing options as described in the AE-SP4000 feature set.
| Model | Wavelength Range (nm) | Key Optical Components | Weight (kg) |
|---|---|---|---|
| AE-SP4000 (UV) | 320–1100 | Tungsten lamp & Deuterium lamp; 1200 line/mm grating | 11 |
| AE-SP4000 (VIS) | 190–1100 | Tungsten lamp & Deuterium lamp; 1200 line/mm grating | 12 |
The AELAB AE-SP4000 Series UV-Visible spectrophotometer supports quantitative and qualitative optical analysis for environmental testing, pharmaceutical quality control, food and beverage analysis, biochemical research, clinical and diagnostic workflows, and industrial materials testing. The AE-SP4000 performs absorbance-based concentration measurement, UV-Visible spectrum scanning for compound identification, kinetic time measurement for reaction monitoring, and DNA/protein measurement at 260 nm / 280 nm / 230 nm / 320 nm as defined by the instrument functions.
The AELAB AE-SP4000 Series supports GLP General Laboratory Practice verification functions for wavelength accuracy, photometric accuracy, and stray light validation. Validation results can be stored, exported, and printed to support laboratory audit trails. Manufacturing is described with 32 key quality control points to ensure robustness and unit-to-unit durability for UV-Visible spectrophotometer operation.
Discover precision UV-Visible optical measurement with AELAB AE-SP4000 — engineered for stable absorbance analysis, validated performance control, and traceable laboratory data output.
Specifications :
| Mode | AE-SP4000 (UV) | AE-SP4000 (VIS) |
|---|---|---|
| Optical System | Single beam; with 1200 line/mm grating | |
| Wavelength Range (nm) | 320–1100 | 190–1100 |
| Spectral Bandwidth (nm) | 2.0 | |
| Wavelength Accuracy (nm) | ±0.3 | |
| Wavelength Repeatability (nm) | ≤0.1 | |
| Transmittance Accuracy (%T) | ≤0.1 | |
| Stray Light (%T) | ≤0.05 @360 nm | ≤0.05 @220 nm @360 nm |
| Noise (%T) | 0%≤0.05; 100%≤0.1 | |
| Draft (Abs) | ≤0.001 | |
| Baseline Fitness (Abs) | ±0.001 | |
| Spectral Range | 0–200%T, −3.010–3 A, 0–9999C (0–9999F) | |
| Test Mode | Abs Trans Reflectance Energy | |
| Light Source | Tungsten lamp & Deuterium lamp | |
| Monitor | 7LCD with touch panel | |
| Language | Chinese、English、Russia、Spanish | |
| Data Output | U Disk、Bluetooth、Upload to PC by USB port | |
| Data Format | CSV | |
| Sample Holder | 10–50 mm adjustable | |
| Power Supply | AC 90–250 V / 50–60 Hz | |
| Size (L×W×H) mm | 470×330×210 | |
| Weight (kg) | 11 | 12 |
| Mode | AE-SP4000 (UV) | AE-SP4000 (VIS) |
|---|---|---|
| Optical System | Single beam; with 1200 line/mm grating | |
| Wavelength Range (nm) | 320–1100 | 190–1100 |
| Spectral Bandwidth (nm) | 2.0 | |
| Wavelength Accuracy (nm) | ±0.3 | |
| Wavelength Repeatability (nm) | ≤0.1 | |
| Transmittance Accuracy (%T) | ≤0.1 | |
| Stray Light (%T) | ≤0.05 @360 nm | ≤0.05 @220 nm @360 nm |
| Noise (%T) | 0%≤0.05; 100%≤0.1 | |
| Draft (Abs) | ≤0.001 | |
| Baseline Fitness (Abs) | ±0.001 | |
| Spectral Range | 0–200%T, −3.010–3 A, 0–9999C (0–9999F) | |
| Test Mode | Abs Trans Reflectance Energy | |
| Light Source | Tungsten lamp & Deuterium lamp | |
| Monitor | 7LCD with touch panel | |
| Language | Chinese、English、Russia、Spanish | |
| Data Output | U Disk、Bluetooth、Upload to PC by USB port | |
| Data Format | CSV | |
| Sample Holder | 10–50 mm adjustable | |
| Power Supply | AC 90–250 V / 50–60 Hz | |
| Size (L×W×H) mm | 470×330×210 | |
| Weight (kg) | 11 | 12 |
