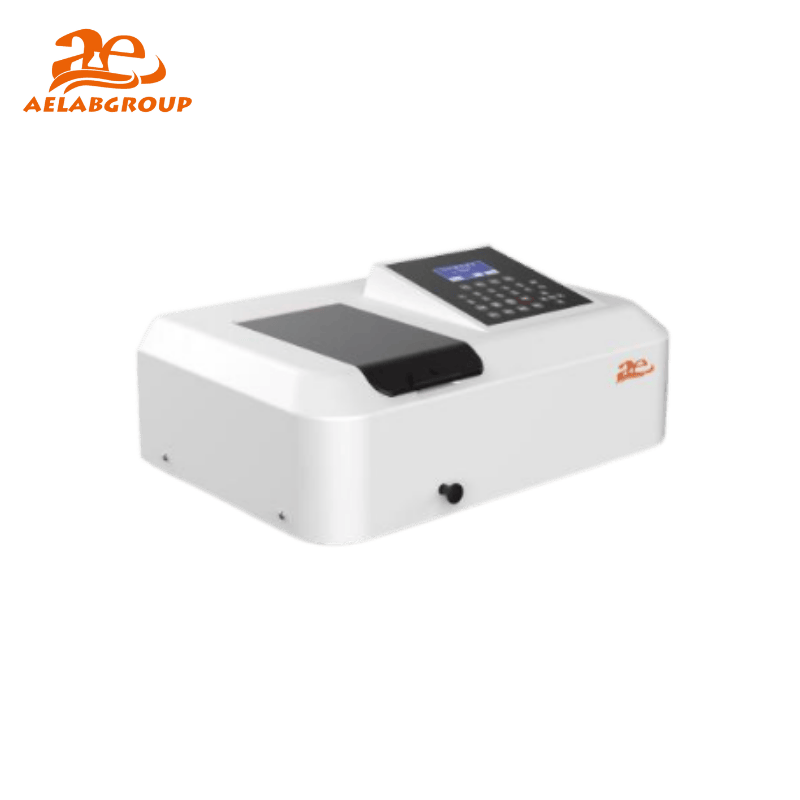

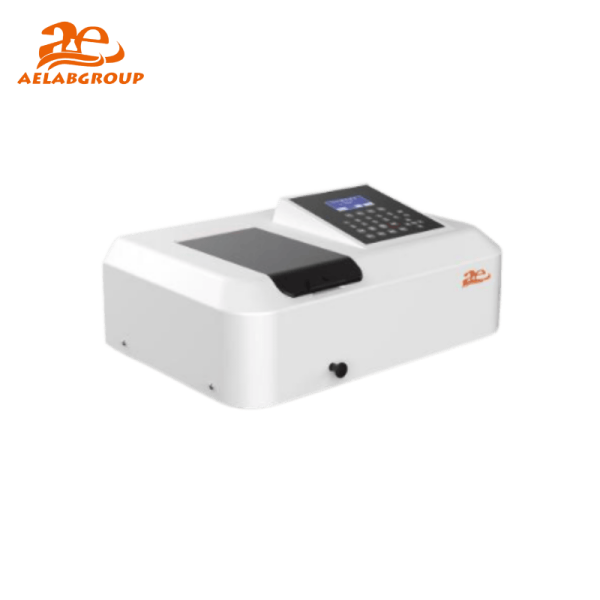

The AELAB AE-SP3000 Series UV-Visible Spectrophotometer combines high-resolution Czerny-Turner optical design with advanced ARM microcomputer technology to deliver excellent stability, reproducibility, and accuracy across the 190–1100 nm range. Its data management system supports USB export, one-click software upgrades, and Bluetooth printing for seamless integration into GLP laboratories.
The instrument features a 7-inch color LCD touchscreen with dual touch and button operation for ease of use even with gloves. Each unit is manufactured under 32 quality control points to ensure durability and optical stability. Its aviation-grade Aluminum alloy baseplate and precision-machined mirror holder enhance mechanical rigidity and long-term alignment.
The AE-SP3000 uses a C-T monochromator with 1200 line/mm diffraction grating. It is built on an Aviation-grade Aluminum alloy optical base and fitted with high-quality Deuterium and Tungsten lamps for stable UV and Visible illumination. A four-slot manual sample rack accommodates 5–50 mm cuvettes for varied sample types.
The spectrophotometer measures absorbance and transmittance by detecting intensity differences between incident and transmitted light. It supports single or multi-wavelength scans, time-based kinetic measurement, and quantitative analysis using stored standard curves with first-, second-, or third-order curve fitting and dual-wavelength correction.
Data is exported in CSV format via USB drive or direct PC upload. The AE-SP3000 supports GLP data traceability and optional PC control software for extended spectral analysis and remote operation.
| Model | Specifications |
|---|---|
| AE-SP3000 (VIS) | 320 – 1100 nm range, Tungsten lamp, 11 kg |
| AE-SP3000 (UV) | 190 – 1100 nm range, Deuterium & Tungsten lamps, 12 kg |
The AELAB AE-SP3000 Series is ideal for environmental monitoring, pharmaceutical quality control, biochemical analysis, educational research, and food testing labs requiring accurate absorbance and transmittance measurement in the UV-Visible range.
All AELAB AE-SP3000 models comply with ISO and CE standards and are manufactured under GLP-validated quality control with traceable calibration and safety certification.
Specifications :
| Mode | AE-SP3000 (VIS) | AE-SP3000 (UV) |
|---|---|---|
| Optical System | Single beam; with 1200 line/mm grating | |
| Wavelength range (nm) | 320 – 1100 | 190 – 1100 |
| Spectral Bandwidth (nm) | 2 | |
| Wavelength Accuracy (nm) | ±0.5 | |
| Wavelength Repeatability (nm) | ≤0.2 | |
| Transmittance Accuracy (%T) | ≤0.5 | |
| Transmittance Repeatability (%T) | ≤0.2 | |
| Stray Light (%T) | ≤0.1@360 nm | ≤0.1@220 nm@360 nm |
| Noise (%T) | 0% ≤ 0.1; 100% ≤ 0.2 | |
| Draft (Abs) | ≤ 0.002 | |
| Baseline fitness (Abs) | ± 0.002 | |
| Spectral Range | 0 – 200%T, –0.301 – 3 A, 0 – 9999 C (0 – 9999 F) | |
| Test Mode | Abs Trans Reflectance Energy | |
| Light Source | Tungsten lamp & Deuterium lamp | |
| Monitor | 7″ LCD with touch panel | |
| Language | Chinese, English, Russia, Spanish | |
| Data Output | U Disk, Upload to PC by USB port | |
| Data Format | CSV | |
| Sample Holder | 5 – 50 mm adjustable | |
| Power Supply | AC 90 – 250 V / 50 – 60 Hz | |
| Size (L × W × H) mm | 460 × 310 × 180 | |
| Weight (kg) | 11 | 12 |
| Mode | AE-SP3000 (VIS) | AE-SP3000 (UV) |
|---|---|---|
| Optical System | Single beam; with 1200 line/mm grating | |
| Wavelength range (nm) | 320 – 1100 | 190 – 1100 |
| Spectral Bandwidth (nm) | 2 | |
| Wavelength Accuracy (nm) | ±0.5 | |
| Wavelength Repeatability (nm) | ≤0.2 | |
| Transmittance Accuracy (%T) | ≤0.5 | |
| Transmittance Repeatability (%T) | ≤0.2 | |
| Stray Light (%T) | ≤0.1@360 nm | ≤0.1@220 nm@360 nm |
| Noise (%T) | 0% ≤ 0.1; 100% ≤ 0.2 | |
| Draft (Abs) | ≤ 0.002 | |
| Baseline fitness (Abs) | ± 0.002 | |
| Spectral Range | 0 – 200%T, –0.301 – 3 A, 0 – 9999 C (0 – 9999 F) | |
| Test Mode | Abs Trans Reflectance Energy | |
| Light Source | Tungsten lamp & Deuterium lamp | |
| Monitor | 7″ LCD with touch panel | |
| Language | Chinese, English, Russia, Spanish | |
| Data Output | U Disk, Upload to PC by USB port | |
| Data Format | CSV | |
| Sample Holder | 5 – 50 mm adjustable | |
| Power Supply | AC 90 – 250 V / 50 – 60 Hz | |
| Size (L × W × H) mm | 460 × 310 × 180 | |
| Weight (kg) | 11 | 12 |
