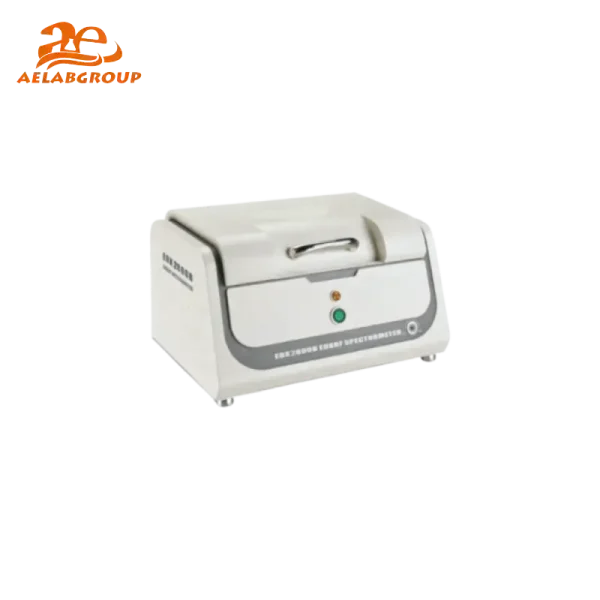

A bench-top XRF spectrometer for RoHS analysis is a compact, user-friendly device designed to detect hazardous substances in materials. It measures elements like lead, cadmium, and mercury, ensuring products meet RoHS compliance standards. The spectrometer offers quick and accurate results with minimal sample preparation, making it ideal for quality control in various industries.
Features:
Specifications :
| Item | EDX2800B | EDX1800E |
| Resolution of detector | Resolution can reach 160±5eV(measured with Fe55 at counting rate of around 1000/S) ， moreover， new type of detector greatly improves the detection lineof measured hazardous substances | Resolution can reach 144±5eV(measured with Fe 55 at counting rate of around 1000/S) |
| Precision of instrument | 0.1%(measured sample with>96%content) | 0.05%(measured sample with>96%content) |
| Working scope of tube | New style of structural design ensures the heat dissipation of the light tube， and increases the service life of the light tube.5-50KV high-voltage with up to 1mA current(set through software as required by customer) | Copper shell ensures the heat dissipation of the light tube， and greatly increases the service life of the light tube.5-50KV high-voltage； current increased to 1.5mA(the upper limit of the light tube power increased by 50%) |
| Applications recommended | RoHS， hazardous heavy metal detection； metal coating analysis； component analysis for alloy material； | RoHS&halogen-free； alloy number； metal coating and other element analysis |
| Measurable elements | S to U.Limit of detection (LOD) reaches 1ppm. |
| Element content: | ppm to 99.99%Arbitrary optional analysis and identification modelsIndependent matrix effect correction modelsMulti-variable non-inear regression procedure |
| Ambient temperature: | 15℃ to 30℃C |
| Power supply: | AC 220V±5V, AC purified stabilized voltage power supply |
| Energy resolution: | 160+5eV |
| Energy resolution: | 439mmx300mmx50mmInstrument size:550mmx410mmx320mm |
| Instrument weight: | 45kg |
| Instrument size: | 550mmx410mmx320mm |
| Item | EDX2800B | EDX1800E |
| Resolution of detector | Resolution can reach 160±5eV(measured with Fe55 at counting rate of around 1000/S) ， moreover， new type of detector greatly improves the detection lineof measured hazardous substances | Resolution can reach 144±5eV(measured with Fe 55 at counting rate of around 1000/S) |
| Precision of instrument | 0.1%(measured sample with>96%content) | 0.05%(measured sample with>96%content) |
| Working scope of tube | New style of structural design ensures the heat dissipation of the light tube， and increases the service life of the light tube.5-50KV high-voltage with up to 1mA current(set through software as required by customer) | Copper shell ensures the heat dissipation of the light tube， and greatly increases the service life of the light tube.5-50KV high-voltage； current increased to 1.5mA(the upper limit of the light tube power increased by 50%) |
| Applications recommended | RoHS， hazardous heavy metal detection； metal coating analysis； component analysis for alloy material； | RoHS&halogen-free； alloy number； metal coating and other element analysis |
| Measurable elements | S to U.Limit of detection (LOD) reaches 1ppm. |
| Element content: | ppm to 99.99%Arbitrary optional analysis and identification modelsIndependent matrix effect correction modelsMulti-variable non-inear regression procedure |
| Ambient temperature: | 15℃ to 30℃C |
| Power supply: | AC 220V±5V, AC purified stabilized voltage power supply |
| Energy resolution: | 160+5eV |
| Energy resolution: | 439mmx300mmx50mmInstrument size:550mmx410mmx320mm |
| Instrument weight: | 45kg |
| Instrument size: | 550mmx410mmx320mm |
