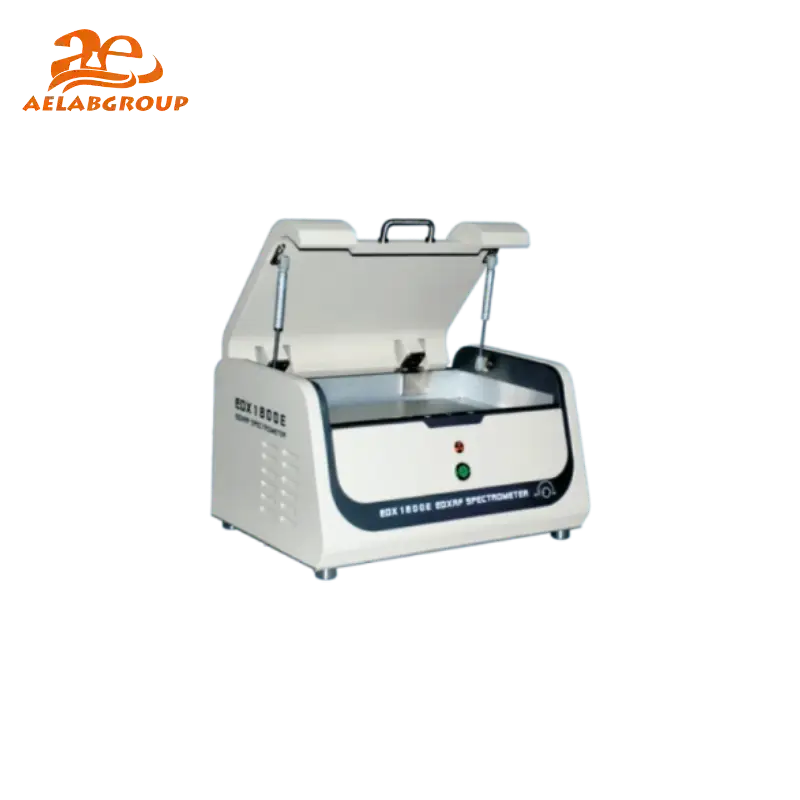

A bench-top XRF spectrometer designed for RoHS (Restriction of Hazardous Substances) and free halogen analysis is a practical tool for detecting and measuring hazardous elements in various materials. This compact device is specifically engineered to ensure that products comply with environmental and safety regulations by analyzing the presence of restricted substances and halogens.
Features:
Specifications :
| Standard configurations | |
| EDX 1800E | |
| Detector | New-generation SDD detector made in USA with internationally leading technology, improved resolution and test efficiency. |
| Pre-amplifier and main amplifier circuit | A whole-new design of pre-amplifier and main amplifier circuit, latest micro-electronics modular technology applied, unified design, ensuring more stable technical specifications of the instrument |
| Test and analysis software | whole-new designed professional analysis software, including RoHS& halogen-free alloy number, metal coating thickness, and plating layer thickness measurement fundamental parameter analysis algorithm, support qualitative and quantitative analysis with no standard sample |
| Technical specifications | |
| Resolution of detector | Resolution can reach 144±5eV (measured with Fe55 at counting rate of around 1000/S) |
| Working scope of tube | Copper shell ensures the heat dissipation of the light tube, and greatly increases the service life of the light tube; 5 - 50KV high-voltage; current increased to 1.5mA (the upper limit of the light tube power increased by 50%) |
| Applications recommended | RoHS& halogen-free; alloy number; metal coating and other element analysis |
| Environmental indicators for heavy metals | |
| RoHS measurement accuracy 1. |
1.For about 1000ppm of sample, the accuracy deviation is ±100ppm (plastic sample as standard) |
| RoHS measurement accuracy 2. |
2.For about 100ppm of a sample, the accuracy deviation is ±10ppm (plastic sample as standard) |
| RoHS detection range | 8 hazardous heavy metal elements stated in RoHS, including Cr, Hg, Pb, Br, Cd, Sb, As, Ba can be detected. The special test software can be applied to test other hazardous metal elements; the special test software can be upgraded for free permanently. |
| Standard configurations | |
| EDX 1800E | |
| Detector | New-generation SDD detector made in USA with internationally leading technology, improved resolution and test efficiency. |
| Pre-amplifier and main amplifier circuit | A whole-new design of pre-amplifier and main amplifier circuit, latest micro-electronics modular technology applied, unified design, ensuring more stable technical specifications of the instrument |
| Test and analysis software | whole-new designed professional analysis software, including RoHS& halogen-free alloy number, metal coating thickness, and plating layer thickness measurement fundamental parameter analysis algorithm, support qualitative and quantitative analysis with no standard sample |
| Technical specifications | |
| Resolution of detector | Resolution can reach 144±5eV (measured with Fe55 at counting rate of around 1000/S) |
| Working scope of tube | Copper shell ensures the heat dissipation of the light tube, and greatly increases the service life of the light tube; 5 - 50KV high-voltage; current increased to 1.5mA (the upper limit of the light tube power increased by 50%) |
| Applications recommended | RoHS& halogen-free; alloy number; metal coating and other element analysis |
| Environmental indicators for heavy metals | |
| RoHS measurement accuracy 1. |
1.For about 1000ppm of sample, the accuracy deviation is ±100ppm (plastic sample as standard) |
| RoHS measurement accuracy 2. |
2.For about 100ppm of a sample, the accuracy deviation is ±10ppm (plastic sample as standard) |
| RoHS detection range | 8 hazardous heavy metal elements stated in RoHS, including Cr, Hg, Pb, Br, Cd, Sb, As, Ba can be detected. The special test software can be applied to test other hazardous metal elements; the special test software can be upgraded for free permanently. |
