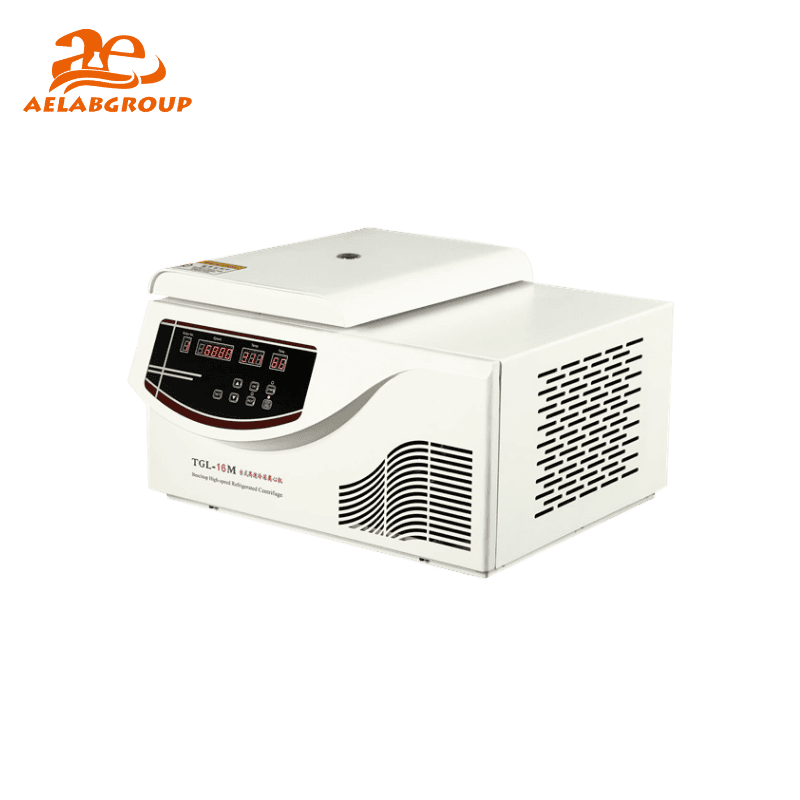

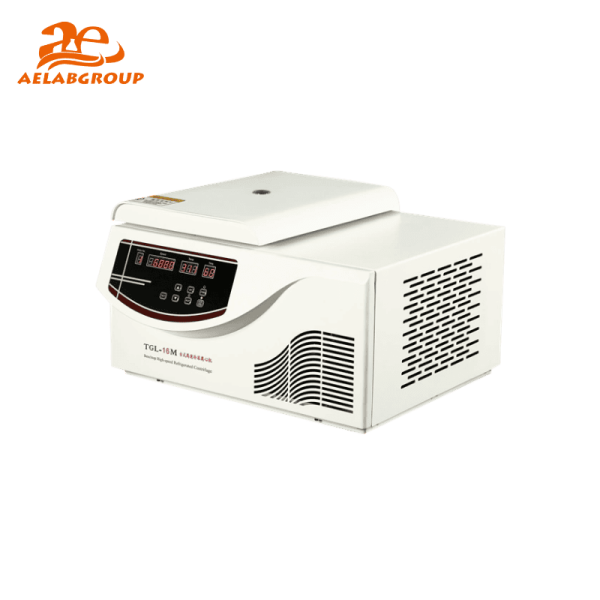

The AELAB TGL-16M/MC High-Speed Benchtop Centrifuge provides reliable and precise separation performance for biotechnology, PCR, and life science laboratories. With digital LCD control, microprocessor regulation, and a brushless AC motor, this model ensures accurate, repeatable results for clinical and research centrifugation applications.
The AELAB TGL-16M/MC High-Speed Benchtop Centrifuge is designed for biotechnology, PCR, and life science research laboratories. It is ideal for routine sample separation in medical, hospital, and institutional testing facilities. With multiple rotor options and precision temperature regulation, this centrifuge delivers stable, reproducible performance for a wide range of analytical applications.
Featuring a CFC-free compressor with two-cycle refrigeration, the TGL-16M/MC provides accurate temperature control between −20°C and +40°C. Its microprocessor system manages acceleration, deceleration, and real-time data display through a large LCD interface.
The TGL-16M/MC features a brushless AC frequency conversion motor enclosed in a Stainless Steel chamber. Its ergonomic benchtop design includes an emergency lid lock and interlock protection that prevents the lid from opening during operation. The reliable CFC-free compressor ensures efficient cooling without environmental pollution.
The centrifuge operates through high-speed rotation generating centrifugal forces up to 21800×g. This separates components of biological, chemical, or clinical samples based on density differences. Temperature control enables pre-cooling in a stopped state, making it ideal for heat-sensitive samples such as enzymes, proteins, and nucleic acids.
The AELAB TGL-16M/MC offers digital data control and recall of the last used program. It integrates with PC software for laboratory data management and supports external temperature and speed calibration under GLP protocols.
| No. | Rotor Type | Max Speed (r/min) | Capacity | Max RCF (×g) |
|---|---|---|---|---|
| 1 | Angle Rotor | 16000 | 12×1.5/2.2ml | 17800 |
| 2 | Angle Rotor | 13000 | 8×5ml | 11400 |
| 3 | Angle Rotor | 12000 | 12×10/15ml | 14800 |
| 4 | Angle Rotor | 15000 | 24×1.5/2.2ml | 21800 |
| 5 | Angle Rotor | 13500 | 48×0.5/1.5ml | 14800 |
| 6 | Angle Rotor | 13500 | 48×1.5/2.2ml | 17600 |
| 7 | Angle Rotor | 11000 | 6×50/30ml | 12000 |
| 8 | Angle Rotor | 10000 | 4×100ml | 10460 |
| 9 | Microplate Rotor | 4000 | 2×2×48 holes | 1400 |
| 10 | Angle Rotor | 8000 | 8×50ml | 9800 |
The TGL-16M/MC centrifuge is ideal for use in biotechnology, life science, and PCR laboratories. Applications include cell fractionation, nucleic acid extraction, serum or plasma separation, and sample clarification for biochemical, clinical, and molecular research workflows.
The AELAB TGL-16M/MC complies with ISO and CE safety standards and meets GLP data integrity requirements. Each centrifuge is calibrated under traceable standards and undergoes multi-point quality verification before dispatch.
Specifications :
| Model | TGL-16M/MC | Speed Accuracy | ±50r/min |
| Max Speed | 16000r/min | Timer Range | 0~99min |
| Max RCF | 21800xg | Temp Range | －20℃~+40℃ |
| Display | LCD /Digital display | Noise | ≤60dB(A) |
| Max Capacity | 4 x100ml | Power Supply | AC220v&110V 50Hz 18A |
| Weight | 65kg | Dimension | 610x622x360mm(L*W*H) |
No.1 |
Max Speed:16000r/min
Capacity:12×1.5/2.2ml AR Max RCF:17800xg |
No.2 |
Max Speed:13000r/min
Capacity:8×5ml AR Max RCF:11400xg |
No.3 |
Max Speed:12000r/min
Capacity:12×10/15ml AR Max RCF:14800xg |
No.4 |
Max Speed:15000r/min
Capacity:24×1.5/2.2ml AR Max RCF:21800xg |
No.5 |
Max Speed:13500r/min
Capacity:48×0.5/1.5ml AR Max RCF:14800xg |
No.6 |
Max Speed:13500r/min
Capacity:48×1.5/2.2ml AR Max RCF:17600xg |
No.7 |
Max Speed:11000r/min
Capacity:6×50/30ml AR Max RCF:12000xg |
No.8 |
Max Speed:10000r/min
Capacity:4×100ml AR Max RCF:10460xg |
No.9 |
Max Speed:4000r/min
Capacity:2×2×48 holes Max RCF:1400xg |
No.10 |
Max Speed:8000r/min
Capacity:8×50ml AR Max RCF:9800xg |
| Model | TGL-16M/MC | Speed Accuracy | ±50r/min |
| Max Speed | 16000r/min | Timer Range | 0~99min |
| Max RCF | 21800xg | Temp Range | －20℃~+40℃ |
| Display | LCD /Digital display | Noise | ≤60dB(A) |
| Max Capacity | 4 x100ml | Power Supply | AC220v&110V 50Hz 18A |
| Weight | 65kg | Dimension | 610x622x360mm(L*W*H) |
| No.1 |
Max Speed:16000r/min
Capacity:12×1.5/2.2ml AR Max RCF:17800xg |
No.2 |
Max Speed:13000r/min
Capacity:8×5ml AR Max RCF:11400xg |
| No.3 |
Max Speed:12000r/min
Capacity:12×10/15ml AR Max RCF:14800xg |
No.4 |
Max Speed:15000r/min
Capacity:24×1.5/2.2ml AR Max RCF:21800xg |
| No.5 |
Max Speed:13500r/min
Capacity:48×0.5/1.5ml AR Max RCF:14800xg |
No.6 |
Max Speed:13500r/min
Capacity:48×1.5/2.2ml AR Max RCF:17600xg |
| No.7 |
Max Speed:11000r/min
Capacity:6×50/30ml AR Max RCF:12000xg |
No.8 |
Max Speed:10000r/min
Capacity:4×100ml AR Max RCF:10460xg |
| No.9 |
Max Speed:4000r/min
Capacity:2×2×48 holes Max RCF:1400xg |
No.10 |
Max Speed:8000r/min
Capacity:8×50ml AR Max RCF:9800xg |
