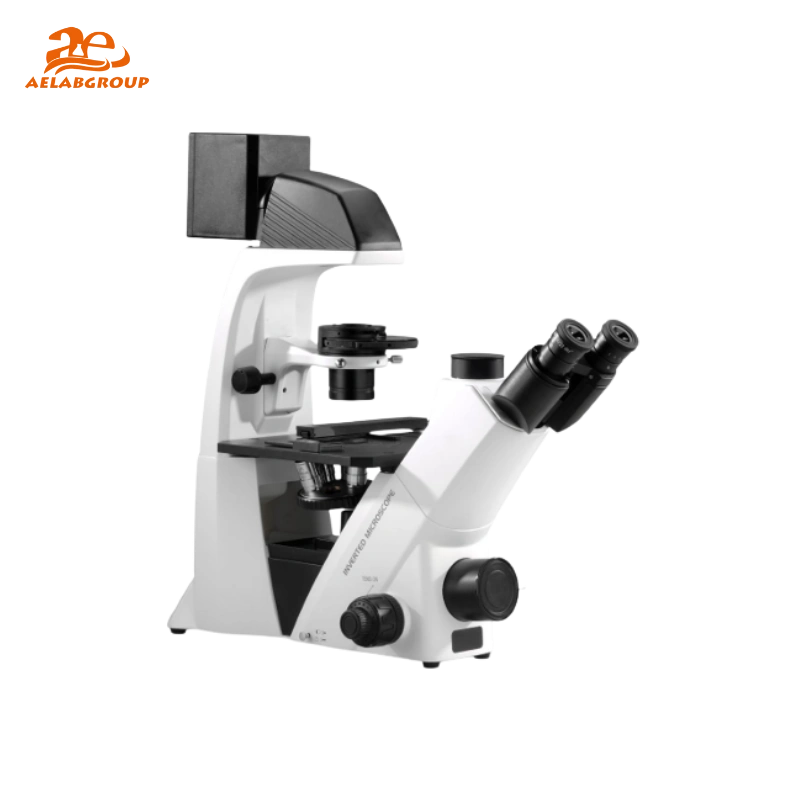

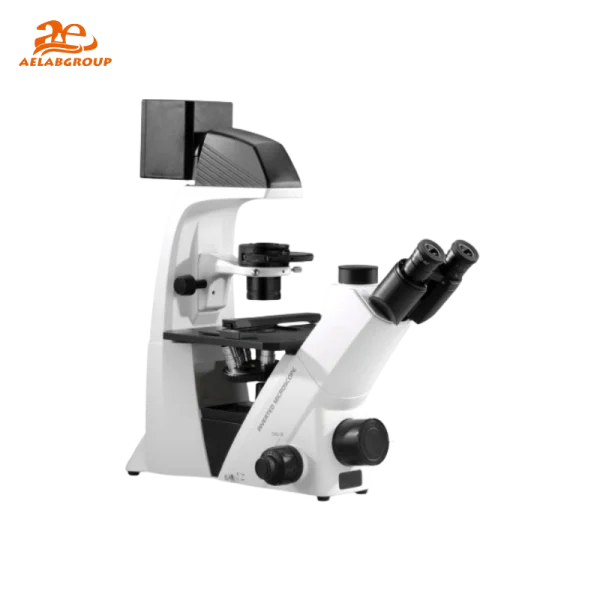

AELAB AE-IM500 Inverted Biological Microscope for Cell Observation and Culture Analysis

The AELAB AE-IM500 Inverted Biological Microscope is a brand-new development for life science research, designed to analyze and monitor living cells directly in culture vessels. The AE-IM500 inverted biological microscope provides stable optical performance for routine and advanced cell observation, using an IOS Infinity optical system optimized for cell culture applications.

The AELAB AE-IM500 inverted biological microscope supports both digital camera imaging and SLR photography simultaneously through dedicated light ports. With Köhler illumination and a rotating disc phase contrast condenser, the AE-IM500 inverted biological microscope enables bright field and phase contrast examination for cultured cell morphology, adherence, and growth assessment.

⚙️ Design & Construction

The AELAB AE-IM500 inverted biological microscope is constructed around an IOS Infinity optical system to stabilize image resolution across the full objective range. The AE-IM500 inverted biological microscope integrates a Köhler illumination module with a 12 V / 50 W Halogen light source for uniform field brightness. A quintuple nosepiece supports multiple objective configurations for rapid switching between magnification levels during cell observation and culture analysis.

🔬 Working Principle / Testing Method

The AELAB AE-IM500 inverted biological microscope positions objectives below the specimen stage, allowing microscopy through the base of culture dishes and multiwell plates. The AE-IM500 inverted biological microscope illuminates the sample through Köhler alignment to improve contrast uniformity and reduce stray brightness gradients. For phase contrast testing, the 4-hole rotating disc condenser aligns annular illumination patterns with phase contrast objective annular spots, converting phase shifts from transparent biological samples into measurable intensity differences for enhanced visualization.

💡 Key Advantages

• The AELAB AE-IM500 inverted biological microscope supports IOS Infinity optics for consistent optical correction across objectives
• WF10X / 22 mm (adjustable) eyepieces improve viewing comfort during extended cell culture inspection

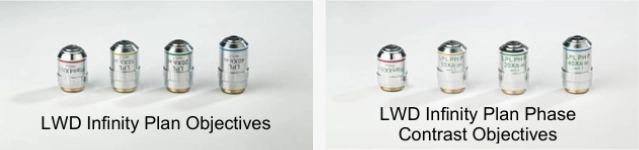

• LWD Infinity Plan objectives provide long working distances, including 12.1 mm at 4X and 5.1 mm at 40X

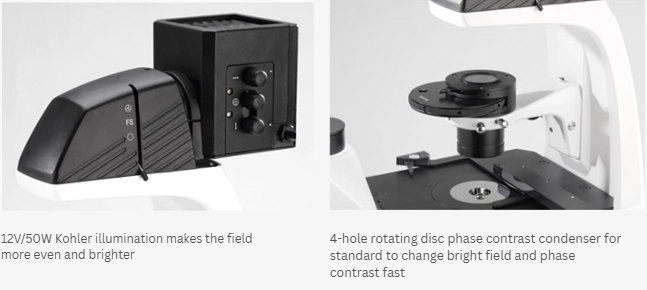

• 4-hole rotating disc phase contrast condenser enables fast switching between bright field and phase contrast observation
• Köhler illumination with 12 V / 50 W halogen improves field uniformity for quantitative and repeatable microscopy

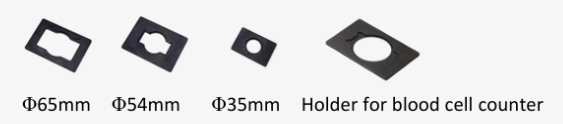

• Mechanical stage supports stable sample positioning with moving range 128 × 80 mm and round slide size φ110 mm
• Dedicated adaptor support enables SLR digital photography for documentation and traceable laboratory reporting

🔗 Connectivity & Integration

• The AELAB AE-IM500 inverted biological microscope provides a trinocular optical path for digital imaging integration
• Adaptor for Digital Photography supports CANON or NIKON SLR digital photography cameras for validated image capture
• C-mount options include 1X / 0.5X / 0.75X (focus adjustable) for microscopy camera compatibility
• Seidentopf trinocular head supports defined light distribution: 100:0 and 80:20 configurations depending on head variant

🧪 Testing Applications

The AELAB AE-IM500 inverted biological microscope is suitable for routine and research-level microscopy in cell culture and life science laboratories. The AE-IM500 inverted biological microscope supports observation of adherent and suspension cells in culture dishes and multiwell formats, enabling morphology analysis, culture confluency checks, contamination screening, and phase contrast evaluation of transparent samples. Typical laboratory use cases include pharmaceutical cell line monitoring, food microbiology culture inspection, environmental bioassays, academic cell physiology studies, and diagnostic research workflows requiring stable documentation via digital imaging or SLR photography.

Compliance & Quality Assurance

The AELAB AE-IM500 inverted biological microscope is engineered for controlled laboratory microscopy practices aligned with ISO / CE / GLP-style workflows. Optical and mechanical components support repeatable calibration of imaging conditions through Köhler illumination alignment, defined objective numerical apertures, and structured phase contrast condenser settings. For quality assurance documentation, the AE-IM500 inverted biological microscope supports traceable imaging through trinocular outputs and camera integration options, enabling reproducible reporting in regulated laboratory and industrial environments.

The AELAB AE-IM500 inverted biological microscope delivers stable IOS Infinity optical performance for cell observation and culture analysis, combining Köhler illumination, phase contrast capability, and imaging-ready trinocular integration for advanced laboratory microscopy workflows.
