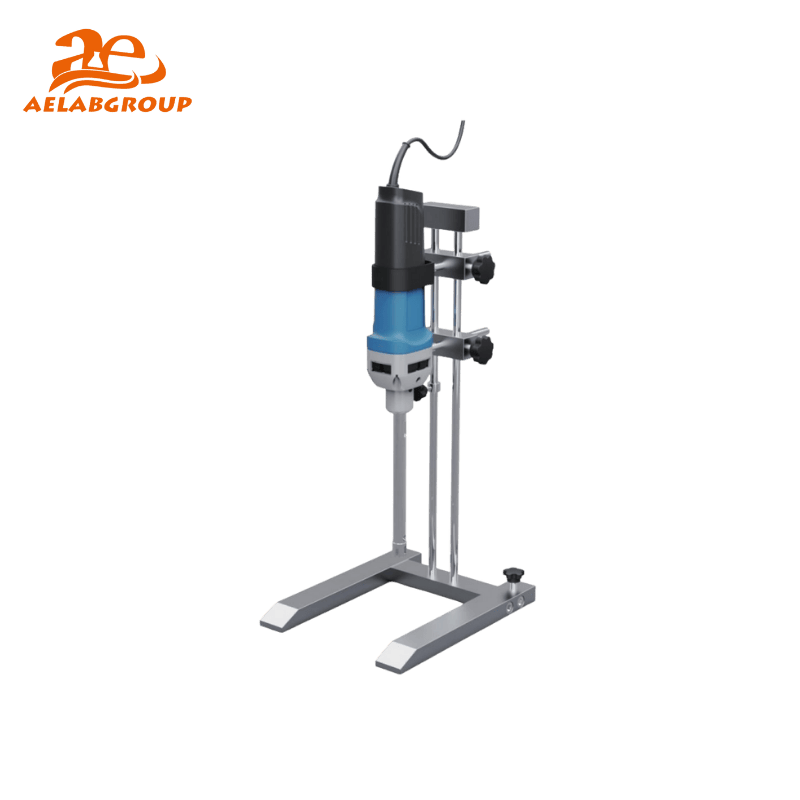

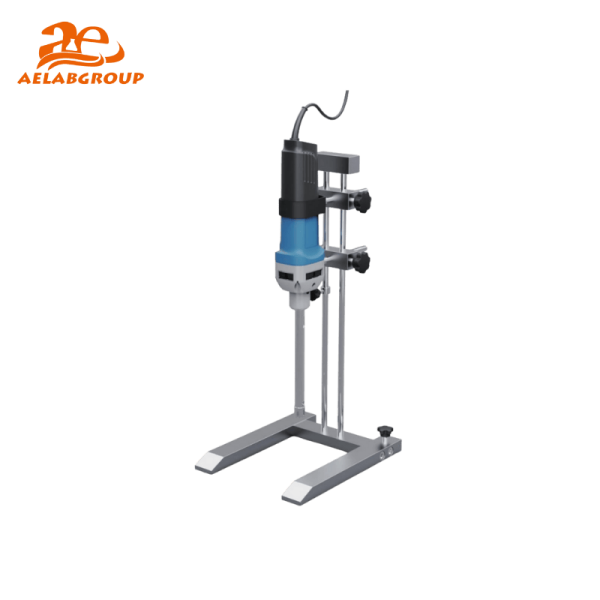

AELAB D-500 High Shear Homogenizer for Laboratory Sample Dispersion

The high shear homogenizer D-500 is applicable to various tasks from sample preparation to formulation study. The motor drives the rotor to rotate at high speed, and the sample is homogenized or dispersed by the gap between the rotor and stator, usually in a short period of time.

The AELAB D-500 High Shear Homogenizer supports fast and efficient processing of biological, chemical, food, cosmetic, and pharmaceutical samples. Designed for routine laboratory workflows, it provides stable performance and continuous homogenization with precise control across six speed levels.

⚙️ Design & Construction

The AELAB D-500 features a high-quality rotor–stator assembly manufactured from SS 316L Stainless Steel and PTFE for chemical resistance and autoclave compatibility. Its AC carbon brush motor delivers up to 500W of power, supporting robust homogenization from 10000–30000 rpm. The ergonomic frame and enclosed drive system improve handling stability, while the simple shaft mechanism allows fast cleaning and replacement.

🔬 Working Principle / Testing Method

The instrument operates using a high-shear rotor–stator dispersion system. As the rotor accelerates to 22.7–36 m/sec linear velocity, intense shear fields rapidly disintegrate samples, producing uniform emulsions, suspensions, and dispersions. The six-stage speed control provides reproducible shear force, ensuring consistent particle size reduction across working volumes of 10–4000 mL, even for viscous samples up to 10000 mPa·s.

💡 Key Advantages

• High-speed rotor–stator system optimized for rapid homogenization
• Supports diverse sample matrices including viscous media and biological tissues
• Stable torque output across the full 10000–30000 rpm range
• Replaceable dispersing shafts reduce operating cost and downtime
• IP20 protection class ensures safe operation in laboratory environments
• Smooth motor start minimizes sample splashing and enhances control
• Lightweight 1.7 kg design for flexible benchtop use

🔗 Connectivity & Integration

The AELAB D-500 supports standard power configurations (110–120V/60Hz and 220–240V/50–60Hz) for global compatibility. The homogenizer can integrate with laboratory stands, safety enclosures, and downstream analytical workflows for GLP-compliant sample preparation.

🧠 Model Insight

🧪 Testing Applications

The AELAB D-500 is suitable for histocyte lysis, cell homogenization, emulsion formation, nanometer-scale dispersion, polymerization reaction assistance, pigment and resin dispersion, fragrance processing, food additives, asphalt research, cosmetic formulation, agricultural chemistry, and environmental testing workflows.

Compliance & Quality Assurance

The D-500 is manufactured under strict AELAB quality control protocols and meets laboratory safety expectations for mechanical reliability, electrical safety, and reproducible homogenization performance.

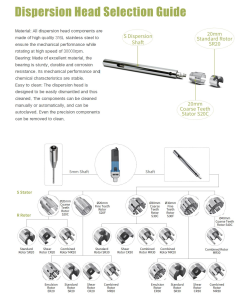

 Disnersion Head Selection Guide
