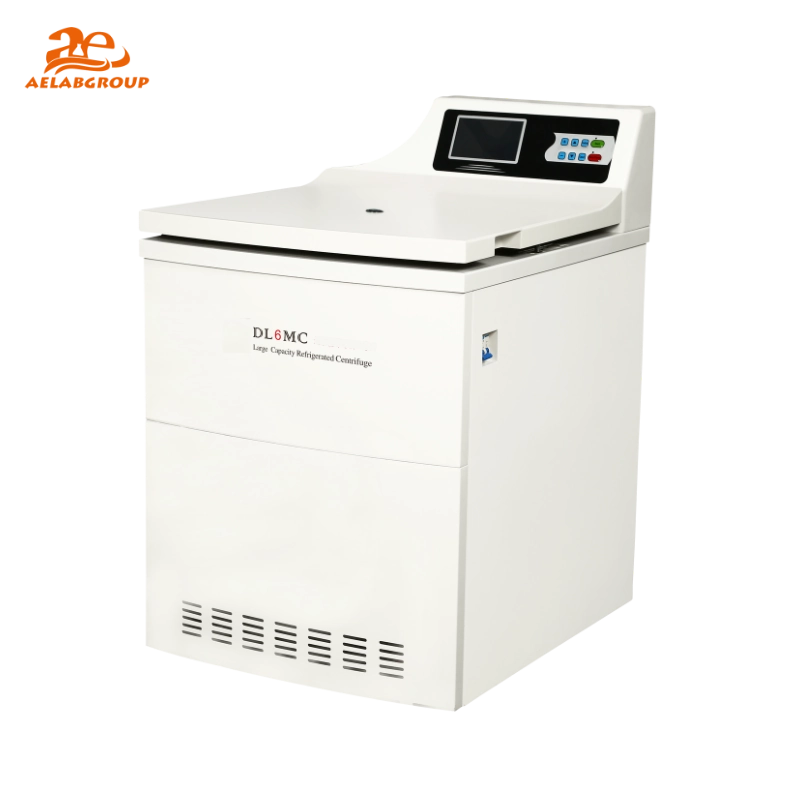

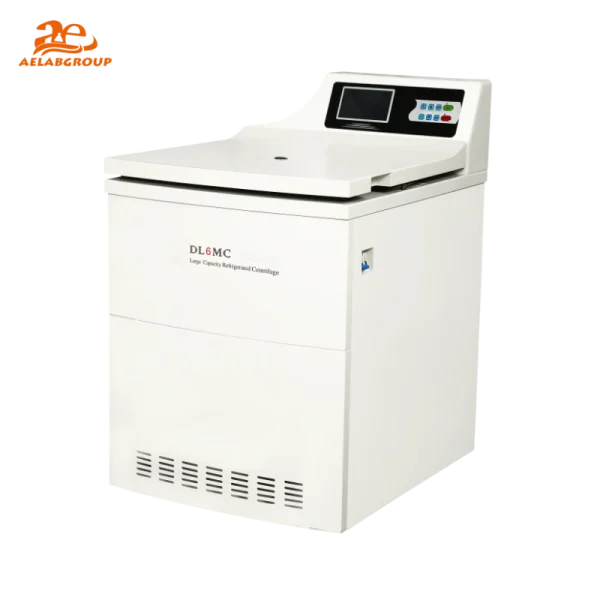

DL-6MC Large Capacity Refrigerated Centrifuge for Blood Bank and Laboratory Separation

The AELAB DL-6MC large capacity refrigerated centrifuge performs controlled centrifugal separation for high-volume clinical, industrial, and diagnostic workflows. Designed for consistent operation in blood bank centers, biotechnology facilities, chemistry laboratories, and biopharmaceutical production lines, the DL-6MC provides a maximum capacity of 6 × 1000 mL with stable refrigeration regulation from -20 to +40 °C for temperature-sensitive components.

The AELAB DL-6MC refrigerated centrifuge integrates microprocessor control with direct drive performance, enabling reproducible speed and time programming for large-batch processing. With maximum speed 6000 r/min and maximum RCF 6680 ×g, the DL-6MC centrifuge supports rapid separation of blood components, biological suspensions, and chemical mixtures while maintaining low operating noise of ≤60 dB(A).

⚙️ Design & Construction

The AELAB DL-6MC refrigerated centrifuge uses a compact, floor-standing structure engineered for large capacity rotors and frequent laboratory operation. The DL-6MC includes an integrated refrigerated chamber powered by a high-efficiency compressor system and is designed for stable thermal uniformity across -20 to +40 °C. A control console with a high-light LCD display supports both touch and button operation for clear visibility of speed, temperature, and time settings.

• Floor-standing large capacity refrigerated centrifuge configuration
• High-light LCD display with touch and button operation
• Integrated wheels for short-distance movement within laboratory environments
• Emergency door lid release system for unexpected power interruption

🔬 Working Principle / Testing Method

The AELAB DL-6MC large capacity refrigerated centrifuge separates sample components by applying controlled centrifugal force generated by a high-efficiency frequency inverter motor. The DL-6MC microprocessor regulates rotor speed, acceleration/deceleration profiles, and time parameters to ensure repeatable separation conditions. Refrigeration control stabilizes chamber temperature during operation to protect thermally sensitive biological and biochemical samples. The direct drive design supports stable rotation and reduced mechanical transmission loss.

💡 Key Advantages

• The AELAB DL-6MC refrigerated centrifuge provides maximum speed 6000 r/min for rapid separation workflows
• The DL-6MC achieves maximum centrifugal force 6680 ×g for effective sedimentation and fractionation
• Large batch throughput with maximum capacity 6 × 1000 mL supports high-volume processing
• Temperature regulation -20 to +40 °C stabilizes blood and biochemical components during centrifugation
• Speed accuracy ±10 r/min supports reproducible laboratory testing conditions
• Acceleration and deceleration rate control 0–9 (Grade) protects fragile sample layers and pellet integrity
• Program storage 35 allows routine method recall and standardized operation

🔗 Connectivity & Integration

The AELAB DL-6MC refrigerated centrifuge is designed for standardized laboratory workflows with programmable methods and repeatable operational logic. The DL-6MC supports method storage for daily protocols and provides a clear LCD parameter interface for compliance-oriented operation.

• Microprocessor control / direct drive operation for stable regulation
• 35 editable stored programs for routine workflow consistency
• LCD display shows full parameters for controlled laboratory operation

🧪 Testing Applications

The AELAB DL-6MC large capacity refrigerated centrifuge is suitable for laboratories requiring high-volume separation with refrigeration stability. The DL-6MC supports processing of blood components, biological suspensions, biochemical mixtures, and industrial analytical samples where temperature control and repeatable speed programming are required.

• Blood Bank Centers: separation of plasma, serum, and blood component fractions under regulated temperature conditions.
• Bio-Technology Companies:</strong harvesting cell cultures, separating biomolecules, and processing fermentation samples.
• Chemistry Laboratories:</strong sedimentation of precipitates and phase separation of chemical mixtures.
• Bio-Pharmaceutical Production:</strong batch processing of intermediates and temperature-sensitive biological materials.

Compliance & Quality Assurance

The AELAB DL-6MC refrigerated centrifuge is engineered for controlled laboratory environments with microprocessor regulation and protection logic for imbalance, over-speed, and over-temperature conditions. The DL-6MC integrates a CFC-free refrigeration system and supports standardized method storage for repeatable operation. For laboratory quality assurance, the DL-6MC enables stable time, speed, and temperature control for routine QC protocols and reproducible separation performance.

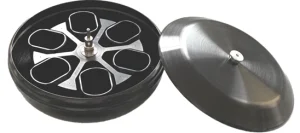

The AELAB DL-6MC large capacity refrigerated centrifuge delivers high-volume, temperature-controlled separation with programmable microprocessor control, direct drive stability, and multiple rotor options — optimized for blood bank processing, biotechnology workflows, chemistry laboratories, and biopharmaceutical testing.
