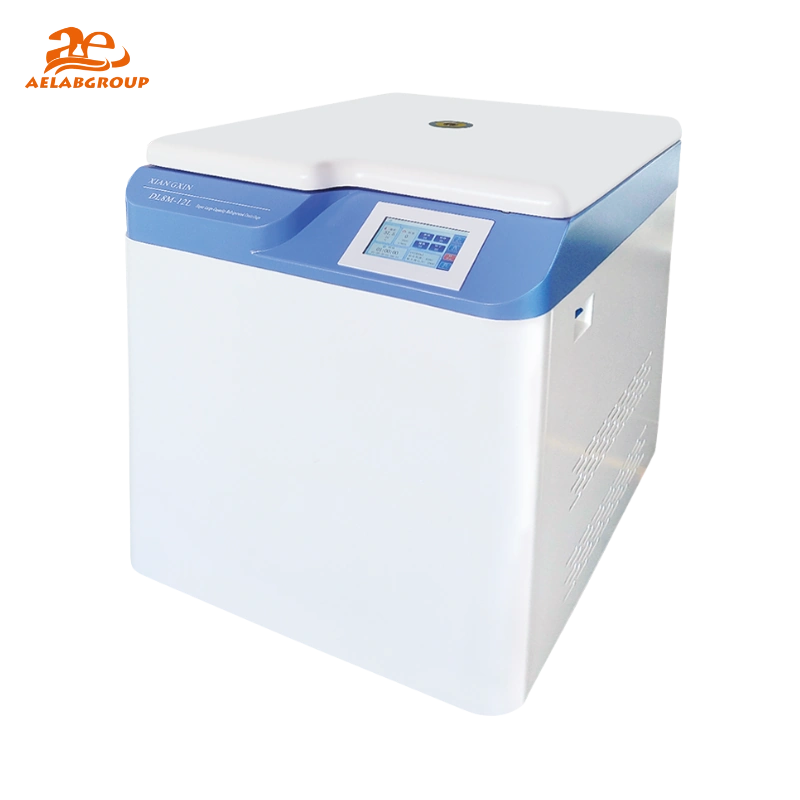

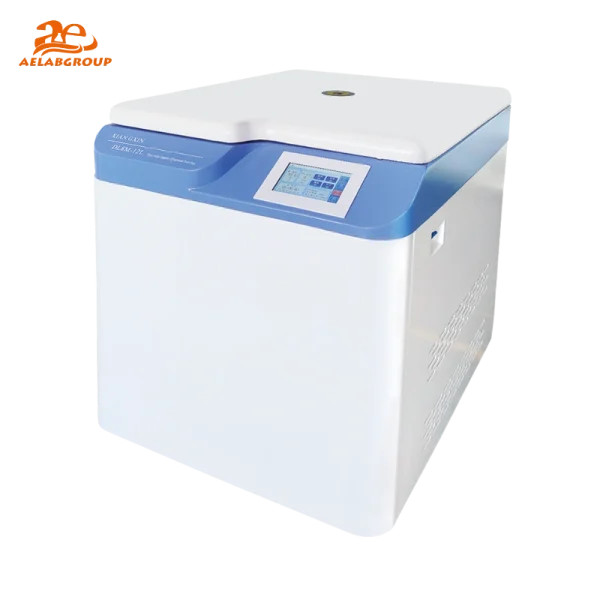

AELAB DL8M-12L Intelligent Large Capacity Refrigerated centrifuge

The AELAB DL8M-12L intelligent large capacity refrigerated centrifuge is a compact refrigerated floor standing centrifuge designed for universal use in blood banks, clinical laboratories, serology investigations, molecular biology, serum separation, and pharmaceutical testing. The DL8M-12L provides repeatability, precision, and reliable control of speed, time, temperature, acceleration, and deceleration to achieve stable separation of distinct blood fractions.

The AELAB DL8M-12L refrigerated centrifuge integrates microprocessor regulation, programmable storage, and high-performance compressor refrigeration for controlled separation workflows requiring reproducible temperature and centrifugal force. The DL8M-12L supports multiple rotor configurations for blood bag processing, clinical tube separation, and large-volume laboratory centrifugation.

⚙️ Design & Construction

The AELAB DL8M-12L refrigerated centrifuge is engineered as a floor standing laboratory centrifuge with a compact footprint and high-volume processing chamber. The DL8M-12L uses an all Stainless Steel internal and external structure to enhance corrosion resistance and mechanical durability in clinical and industrial environments.

The AELAB DL8M-12L includes a 7-inch color touch panel displaying both set parameters and operational parameters. The DL8M-12L centrifuge integrates an automatic open and close door lid system and a swing rotor cover mechanism that remains fixed when the machine opens and closes correctly when the door lid closes.

🔬 Working Principle / Testing Method

The AELAB DL8M-12L refrigerated centrifuge separates biological and laboratory samples by applying controlled relative centrifugal force (RCF) generated by high-speed rotor rotation. Users select rotor type and program parameters, then the DL8M-12L microprocessor controls speed, acceleration/deceleration, timer, and refrigeration output to stabilize thermal conditions during centrifugation.

The AELAB DL8M-12L operates from 0–99 h 59 min timing control and supports acceleration/deceleration 0–9 (Grade) to ensure gentle blood bag separation or high-force pelletization depending on testing method and specimen density.

💡 Key Advantages

• The AELAB DL8M-12L refrigerated centrifuge reaches a maximum speed of 8000 r/min and maximum RCF of 15200×g for high-force laboratory separation
• The DL8M-12L temperature range of -20 to +40 °C supports stable centrifugation of thermally sensitive clinical specimens
• The AELAB DL8M-12L stores 99 programs with user presets for daily operation and repeatable centrifuge protocols
• The DL8M-12L includes an imbalance self-diagnostic system with protection for over-speed and over-temperature conditions
• The AELAB DL8M-12L uses automatic electronic lock and mechanical lock systems to improve operator safety during high-speed operation
• The DL8M-12L incorporates a high-performance compressor refrigeration system using R404a environmentally friendly refrigerant with accurate temperature control
• The AELAB DL8M-12L operates at noise ≤ 60 dB(A) to support laboratory workflow comfort

🔗 Connectivity & Integration

The AELAB DL8M-12L refrigerated centrifuge is equipped with a USB port for program upgrade and download of running data or error records (optional function). This supports laboratory documentation requirements, operational traceability, and structured workflow integration for regulated environments.

🧪 Testing Applications

The AELAB DL8M-12L refrigerated centrifuge supports laboratory centrifugation for blood bank fraction separation, serum separation, plasma isolation, and clinical sample preparation. The DL8M-12L is suitable for use in blood bank centers, biotechnology companies, chemistry laboratories, and bio-pharmaceutical facilities where reliable temperature control and repeatable centrifugal acceleration are required.

• Blood bank component separation and blood bag centrifugation
• Clinical laboratory serum and plasma preparation
• Serology investigations requiring stable refrigerated separation
• Molecular biology centrifugation requiring controlled acceleration and cooling
• Pharmaceutical sample processing for quality control and research

Compliance & Quality Assurance

The AELAB DL8M-12L refrigerated centrifuge is engineered for laboratory reliability with microprocessor control, self-diagnostic protection, and dual locking systems supporting safe operation. USB program upgrade capability improves traceability and system lifecycle management. The DL8M-12L refrigeration system is CFC-free and designed for stable temperature regulation, supporting consistent centrifugation performance in regulated clinical and industrial laboratories.

For advanced laboratory separation workflows requiring high capacity, controlled refrigeration, and programmable operation, the AELAB DL8M-12L refrigerated floor standing centrifuge delivers reproducible performance across blood bank, diagnostic, and industrial testing environments.

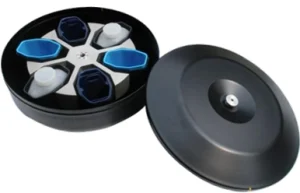

Rotor
