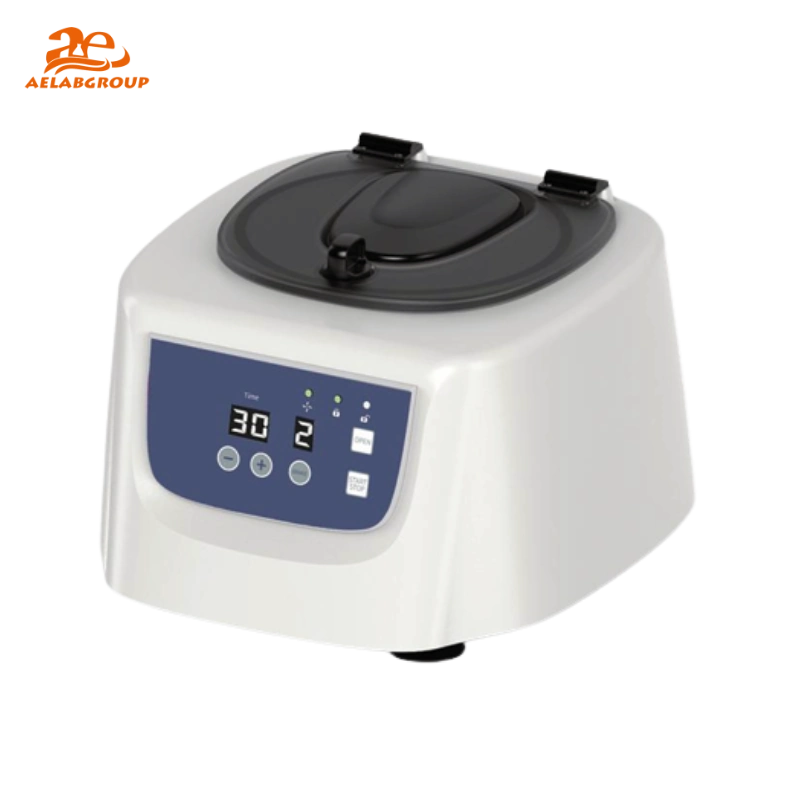

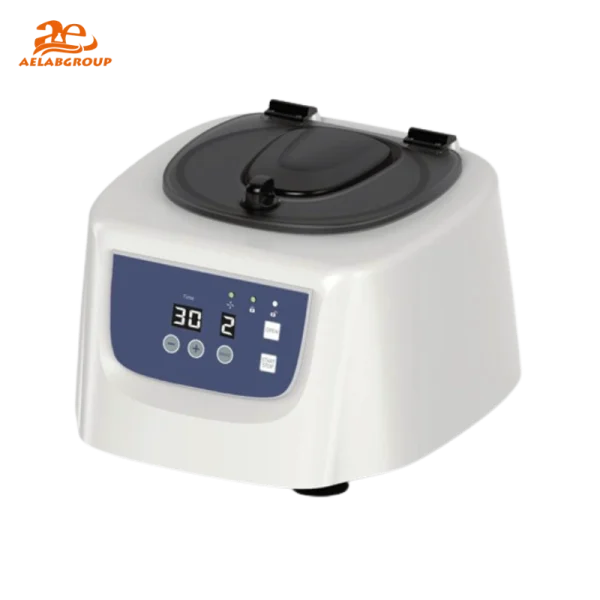

AELAB DM0306 Low Speed Centrifuge – High-Precision Clinical Separation

The AELAB DM0306 Low Speed Centrifuge is widely used in clinical practice and is an ideal choice for serum and plasma sample separation in biochemical and medical laboratories. It is the main instrument for sample pretreatment in clinical laboratories, blood banks, medical schools, and medical research institutions.

The DM0306 offers a compact design, small footprint, intuitive LED display, and stable low-speed centrifugal performance, supporting routine diagnostic workflows with reliability and long-term operational safety.

⚙️ Design & Construction

The AELAB DM0306 Low Speed Centrifuge features a high-strength housing with IP20 protection, a transparent upper cover for sample observation, and a secure mechanical door lock system that prevents opening during rotation. The AC fixed-frequency brushless motor ensures stable, vibration-controlled performance, while the rotor supports 6×3–10 mL blood collection tubes. Its compact 359×318×222 mm footprint optimizes benchtop space in clinical laboratories.

🔬 Working Principle / Testing Method

The DM0306 operates by generating centrifugal force up to 1600×g using a controlled 3400 rpm rotation. Samples in 3–10 mL collection tubes separate according to density, enabling efficient serum and plasma isolation. The LED display provides real-time time and speed indicators, while the 0.5–30 minute timer with Hold mode allows continuous operation when required. Three-level deceleration and single-step acceleration enable smooth, application-specific control.

💡 Key Advantages

• Stable brushless motor drive for consistent low-speed separation
• Fast acceleration (<10 s) and controlled deceleration (<20 s) for safe sample handling
• LED time display supporting precise run monitoring and laboratory reproducibility
• Explosion-proof safety design with full mechanical door lock protection
• Low noise output (≤63 dB) for quiet clinical environments
• Replaceable 4A protection circuit breaker for simplified maintenance
• Supports a wide ambient operating range of 5–40 °C for global laboratory use

🔗 Connectivity & Integration

The AELAB DM0306 focuses on operational reliability and safety. While it operates as a stand-alone centrifuge, its LED interface supports clear process management in GLP-compliant workflows. No external data ports are required for its intended clinical separation applications.

🧠 Model Insight

🧪 Testing Applications

The AELAB DM0306 Low Speed Centrifuge is suitable for a wide range of laboratory workflows, including:

• Serum and plasma separation
• Routine clinical chemistry sample processing
• Blood bank pretreatment
• Medical school training and research
• Biochemical and diagnostic laboratory workflows

Compliance & Quality Assurance

The DM0306 is manufactured under strict AELAB quality assurance protocols, supporting ISO, CE, and GLP-aligned laboratory operation. Safety features include explosion-proof testing, robust door lock protection, and controlled motor operation to ensure reliable clinical performance.
