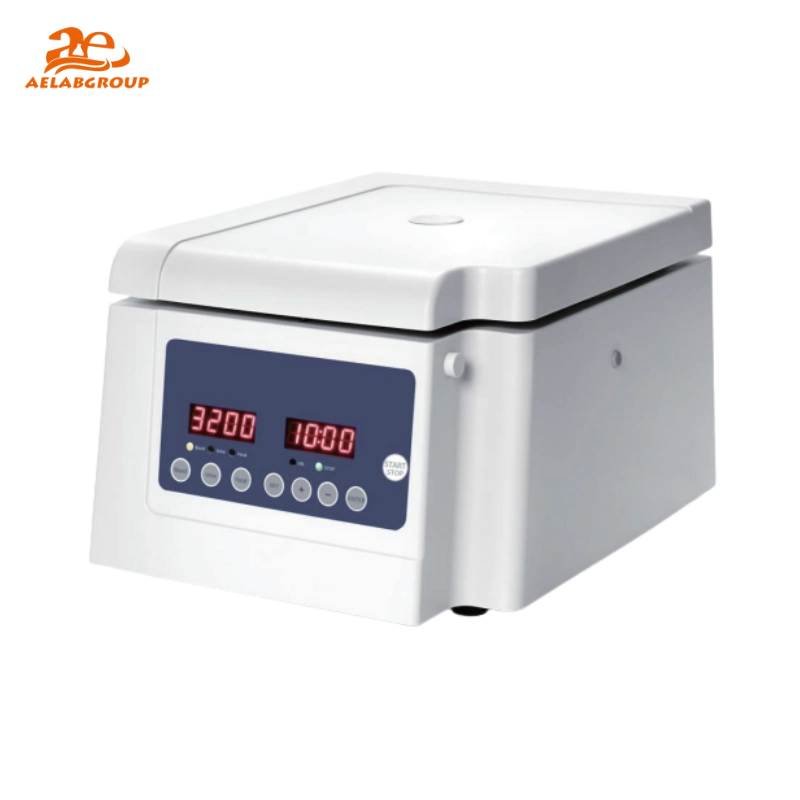

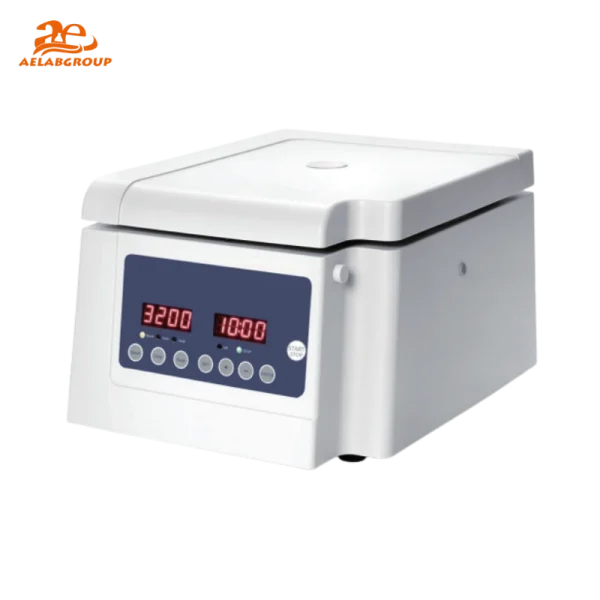

The AELAB DM0424 and DM0408 Multipurpose Low-Speed Centrifuge Series delivers reliable and high-precision performance for clinical, biochemical, and routine laboratory sample separation. With brushless DC motors, LCD interface, and versatile rotor compatibility, the series ensures accurate processing across diverse diagnostic workflows.
These centrifuges operate by spinning samples at controlled speeds, generating centrifugal force that separates components based on density. Blood, plasma, urine, and stool samples rapidly differentiate into defined layers, allowing efficient downstream analysis. Smooth acceleration, consistent speed, and automated diagnostics ensure dependable results for every cycle.
The AELAB DM0424 and DM0408 centrifuges feature durable housings, maintenance-free brushless DC motors, and rigid rotor structures available in Swing and Angle formats. LCD control panels provide intuitive access to programs, speeds, RCF values, and run times. The internal architecture includes automatic lid locking, imbalance detection, and electronic self-diagnostics for GLP-compliant operation.
The centrifuges regulate rotational speed between 100–4000 rpm, enabling precise separation of biological components according to density gradients. Pre-configured programs for blood, urine, and fecal analysis automate workflow standardization. Acceleration and deceleration profiles (3 levels) ensure sample integrity, while uniform speed accuracy of ±10 rpm stabilizes analytical repeatability.
The DM0424 and DM0408 support digital LCD interfaces for configuration and real-time monitoring. Programs can be adjusted directly on the instrument, with internal memory retaining presets for routine clinical workflows. Data is displayed clearly for GLP documentation and workflow traceability.
| Model | Specifications |
|---|---|
| DM0424 | 100–4000 rpm, 2100 × g, Swing & Angle rotors, 385 × 354 × 228 mm, 11.3 kg |
| DM0408 | 100–4000 rpm, 1800 × g, Angle rotors, 280 × 280 × 263 mm, 6.3 kg |
Suitable for clinical chemistry, hematology, serology, diagnostic centers, point-of-care testing, teaching laboratories, and sample preparation involving blood, serum, plasma, urine, and fecal materials.
The AELAB DM04 Series adheres to CE, ISO, and GLP laboratory compliance requirements. All systems undergo factory calibration, quality inspection, and electronic safety verification before shipment.
Specifications :
| Specifications | DM0424 | DM0408 |
|---|---|---|
| Speed range | 100–4000 rpm (increment: 100 rpm) | 100–4000 rpm (increment: 100 rpm) |
| Max. RCF | 2100 × g | 1800 × g |
| Speed Accuracy | ±10 rpm | ±10 rpm |

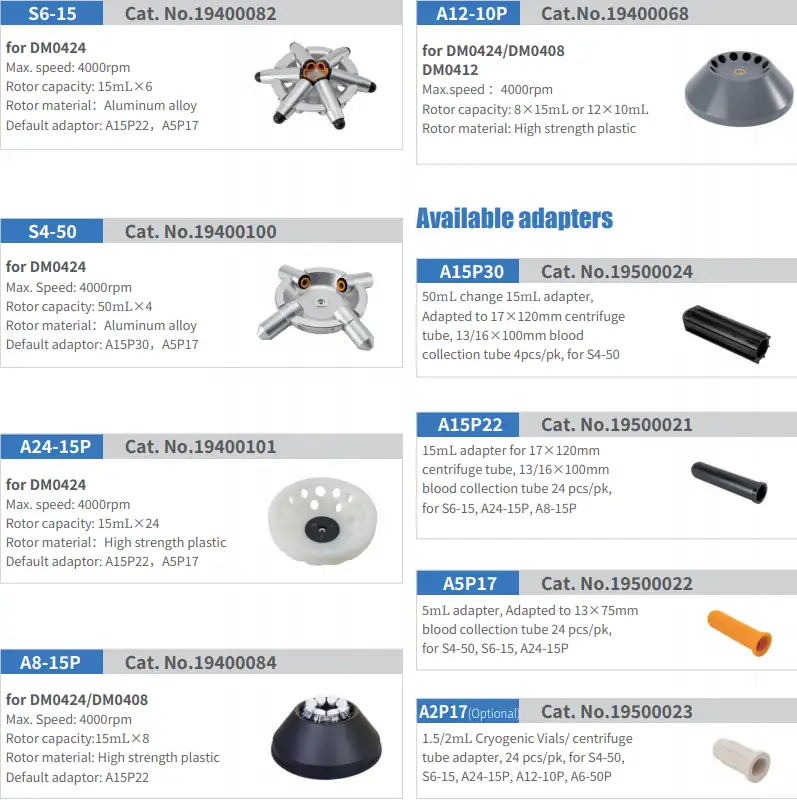

| Rotor | Swing: 12 × 10 mL
Angle: 24 × 10 mL Angle: 12 × 15 mL |
Angle: 12 × 10 mL (Default) Angle: 12 × 15 mL |
| Run Time | 1–99 min, HOLD | 1–99 min, HOLD |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LCD |
| Programs | Blood: 1200 rpm, 10 minUrine: 1800 rpm, 5 minFaeces: 1200 rpm, 10 min | Blood: 1200 rpm, 10 minUrine: 1800 rpm, 5 minFaeces: 1200 rpm, 10 min |
| Safety Device | Automatic lid lock & diagnosis | Automatic lid lock & diagnosis |
| Acceleration/Deceleration | 3 Levels | 3 Levels |
| Power Requirements | 100–240 V, 50/60 Hz, 110 W |
Single phase 100–240 VAC, 50/60 Hz, 80 W |
| Dimensions (W × D × H) | 385 × 354 × 228 mm | 280 × 280 × 263 mm |
| Weight | 11.3 kg | 6.3 kg |
| Noise Level | ≤58 dB | ≤58 dB |
| Specifications | DM0424 | DM0408 |
|---|---|---|
| Speed range | 100–4000 rpm (increment: 100 rpm) | 100–4000 rpm (increment: 100 rpm) |
| Max. RCF | 2100 × g | 1800 × g |
| Speed Accuracy | ±10 rpm | ±10 rpm |
| Rotor | Swing: 12 × 10 mL
Angle: 24 × 10 mL Angle: 12 × 15 mL |
Angle: 12 × 10 mL (Default) Angle: 12 × 15 mL |
| Run Time | 1–99 min, HOLD | 1–99 min, HOLD |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LCD |
| Programs | Blood: 1200 rpm, 10 minUrine: 1800 rpm, 5 minFaeces: 1200 rpm, 10 min | Blood: 1200 rpm, 10 minUrine: 1800 rpm, 5 minFaeces: 1200 rpm, 10 min |
| Safety Device | Automatic lid lock & diagnosis | Automatic lid lock & diagnosis |
| Acceleration/Deceleration | 3 Levels | 3 Levels |
| Power Requirements | 100–240 V, 50/60 Hz, 110 W |
Single phase 100–240 VAC, 50/60 Hz, 80 W |
| Dimensions (W × D × H) | 385 × 354 × 228 mm | 280 × 280 × 263 mm |
| Weight | 11.3 kg | 6.3 kg |
| Noise Level | ≤58 dB | ≤58 dB |
