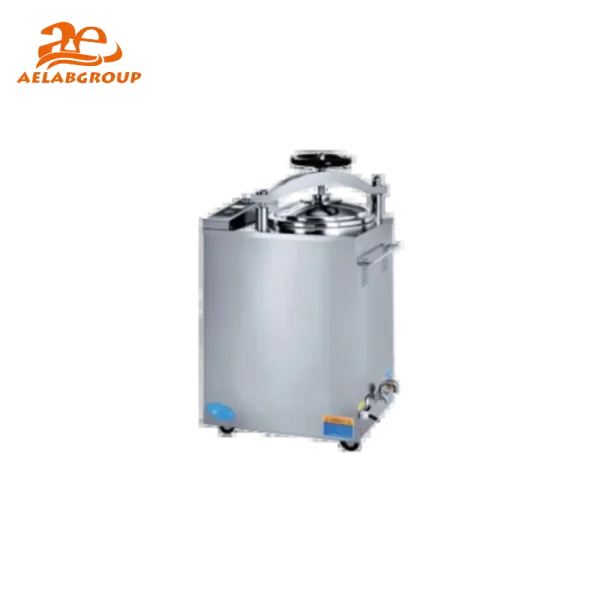

Electric-Heated Vertical Pressure Steam Sterilize LS-35LD Series

The Electric-Heated Vertical Pressure Steam Sterilizer (LS series) is a robust and efficient device designed for sterilizing equipment and materials. Featuring electric heating for precise temperature control, a space-saving vertical design, and reliable pressure management, it ensures thorough sterilization. Ideal for labs and medical facilities, it combines durability with user-friendly controls for effective operation.

Modles : LS-35LD~LS-50LD~LS-75LD~LS-100LD

Quantity:

Send Email

The Electric-Heated Vertical Pressure Steam Sterilizer (LS series) is a high-performance device designed for efficient and reliable sterilization in various settings. This sterilizer utilizes electric heating to generate and maintain steam under pressure, ensuring thorough sterilization of equipment and materials.This sterilizer is ideal for laboratories, medical facilities, and other environments where high standards of cleanliness and safety are required.

Features :

Fully stainless high-alloy steel structure
Digital display of working status, touch of key
Auto discharge the cool air, and steam discharging

automatically after sterilization

Automatically shut off with beep reminding after sterilization
With two stainless steel sterilizing baskets
Easy to operate, safe and reliable

Specifications :

MODEL	LS-35LD(automatic)	LS-50LD(automatic)	LS-75LD(automatic)	LS-100LD(automatic)
Chamber volume	35L(φ318×450)mm	50L(φ340×550)mm	75L(φ400×600)mm	100L(φ440×650)mm
working pressure	0.22MPa
Working temperature	134℃
Max working pressure	0.23 Mpa
Heat average	≤±1℃
Timer	0～99min or 0～99hour59 min
Adjustment of temperature	105～134℃
Power	2.5Kw/AC220V.50Hz	3Kw /AC220V.50Hz	4.5KW AC220V.50Hz
Overall dimension	470×450×840(mm)	520×500×970(mm)	550×530×990(mm)	580×560×1060(mm)
Transport dimension	540×540×970(mm)	580×580×1090(mm)	610×610×1110(mm)	640×640×1170(mm)
G.W/N.W	61Kg/ 46Kg	73Kg/56Kg	87Kg/67Kg	95Kg/73Kg

MODEL	LS-35LD(automatic)	LS-50LD(automatic)	LS-75LD(automatic)	LS-100LD(automatic)
Chamber volume	35L(φ318×450)mm	50L(φ340×550)mm	75L(φ400×600)mm	100L(φ440×650)mm
working pressure	0.22MPa
Working temperature	134℃
Max working pressure	0.23 Mpa
Heat average	≤±1℃
Timer	0～99min or 0～99hour59 min
Adjustment of temperature	105～134℃
Power	2.5Kw/AC220V.50Hz	3Kw /AC220V.50Hz	4.5KW AC220V.50Hz
Overall dimension	470×450×840(mm)	520×500×970(mm)	550×530×990(mm)	580×560×1060(mm)
Transport dimension	540×540×970(mm)	580×580×1090(mm)	610×610×1110(mm)	640×640×1170(mm)
G.W/N.W	61Kg/ 46Kg	73Kg/56Kg	87Kg/67Kg	95Kg/73Kg
