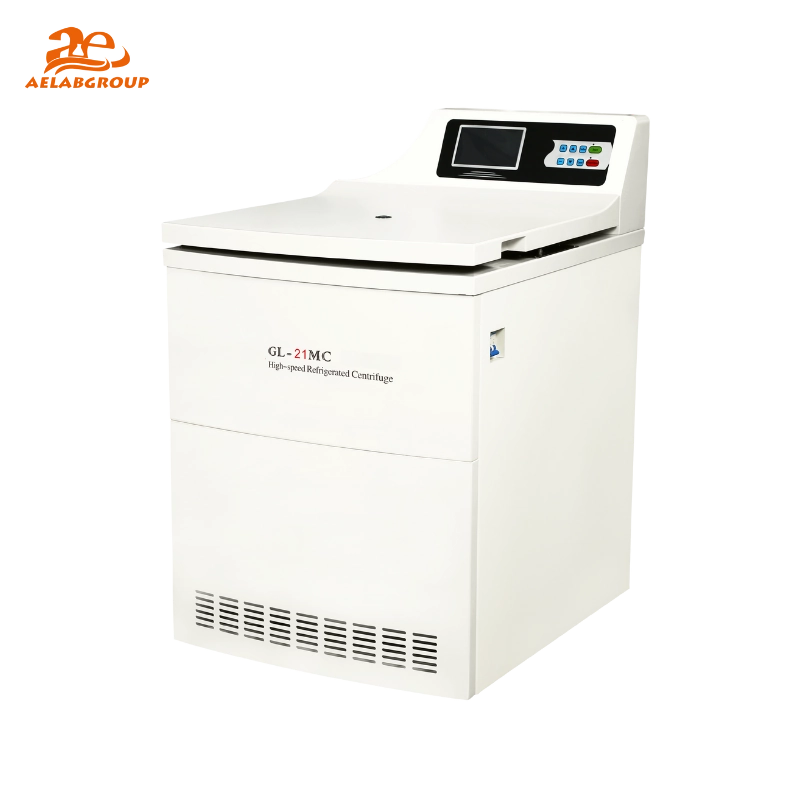

The AELAB GL-21MC / GL-22MC Floor-Type High Speed Refrigerated Centrifuge is engineered for high-capacity, high-speed separation in scientific research, biotechnology, chemistry, and biopharmaceutical laboratories. The instrument integrates microprocessor control with AC frequency conversion motor drive to ensure stable rotational accuracy, reduced vibration, and extended operational lifespan.
The AELAB GL-21MC / GL-22MC refrigerated centrifuge features a high-performance CFC-free refrigeration system, enabling reliable temperature regulation from −20 °C to +40 °C. Multiple safety protections, including overspeed, over-temperature, imbalance, and electronic or mechanical door locking, ensure secure and compliant laboratory operation.

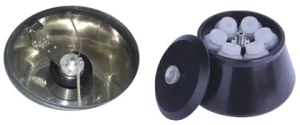

The AELAB GL-21MC / GL-22MC Floor-Type High Speed Refrigerated Centrifuge adopts a robust floor-standing structure with a Stainless Steel centrifugal chamber for corrosion resistance and ease of cleaning. The integrated touch-screen control panel provides clear parameter display, while optimized airflow and vibration-damping design ensure quiet and stable centrifugation.
The AELAB GL-21MC / GL-22MC centrifuge separates samples by applying high rotational speed to generate centrifugal force up to 53000×g. Programmable acceleration and deceleration profiles regulate rotor speed precisely, while the refrigeration system stabilizes sample temperature throughout the centrifugation cycle to preserve sample integrity.
The AELAB GL-21MC / GL-22MC Floor-Type High Speed Refrigerated Centrifuge features an integrated touch control system supporting programmable operation, parameter storage, and time control up to 23 h 59 min. The control architecture supports standardized laboratory workflows and GLP-aligned data consistency.
| Model | Max Speed (r/min) | Max RCF (×g) | Temperature Range | Net Weight |
|---|---|---|---|---|
| GL-21MC | 21000 | 52300 | −20 °C to +40 °C | 260 kg |
| GL-22MC | 22000 | 53000 | −20 °C to +40 °C | 260 kg |
The AELAB GL-21MC / GL-22MC High Speed Refrigerated Centrifuge is widely used for sample separation, precipitation, and concentration in scientific research centers, biotechnology companies, chemistry laboratories, and biopharmaceutical manufacturing environments. Typical applications include cell harvesting, protein separation, nucleic acid processing, and clinical research workflows.
The AELAB GL-21MC / GL-22MC centrifuge is manufactured under ISO-aligned quality systems and designed for CE-compliant laboratory environments. Each unit undergoes operational testing, speed calibration, and temperature verification to ensure repeatable performance, safety, and long-term reliability.
Specifications :
| Model | GL-21MC | GL-22MC |
|---|---|---|
| Max Speed | 21000 r/min | 22000 r/min |
| Max RCF | 52300×g | 53000×g |
| Max Capacity | 3000 mL | |
| Speed Accuracy | ±20 r/min | |
| Temperature Range | −20 °C ~ +40 °C | |
| Temperature Accuracy | ±1 °C | |
| The Shortest Acc Time | 1 min 30 s (0~21000 r/min) | 1 min 35 s (0~22000 r/min) |
| The Shortest Dec Time | 1 min 40 s (21000 r/min~0) | 1 min 45 s (22000 r/min~0) |
| Refrigeration System | High-performance Compressor, CFC-free Refrigeration System | |
| Timer Range | 0~23 h 59 min | |
| Motor | Microprocessor Control, Frequency Conversion Motor | |
| Noise | ≤60 dB(A) | |
| Power Supply | AC 220 V 50–60 Hz 30 A | |
| Dimension (L × W × H) | 710 × 820 × 1200 mm | |
| Net Weight | 260 kg | |
| Model | GL-21MC | GL-22MC |
|---|---|---|
| Max Speed | 21000 r/min | 22000 r/min |
| Max RCF | 52300×g | 53000×g |
| Max Capacity | 3000 mL | |
| Speed Accuracy | ±20 r/min | |
| Temperature Range | −20 °C ~ +40 °C | |
| Temperature Accuracy | ±1 °C | |
| The Shortest Acc Time | 1 min 30 s (0~21000 r/min) | 1 min 35 s (0~22000 r/min) |
| The Shortest Dec Time | 1 min 40 s (21000 r/min~0) | 1 min 45 s (22000 r/min~0) |
| Refrigeration System | High-performance Compressor, CFC-free Refrigeration System | |
| Timer Range | 0~23 h 59 min | |
| Motor | Microprocessor Control, Frequency Conversion Motor | |
| Noise | ≤60 dB(A) | |
| Power Supply | AC 220 V 50–60 Hz 30 A | |
| Dimension (L × W × H) | 710 × 820 × 1200 mm | |
| Net Weight | 260 kg | |
